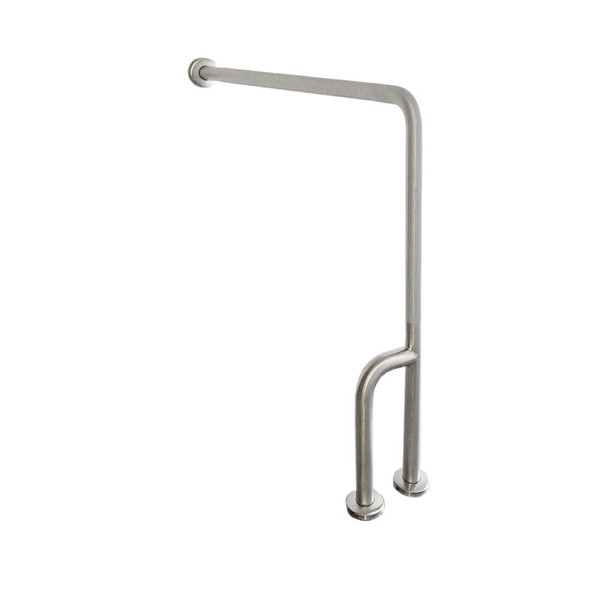

ASI 10-3833-LP Wall to Floor Grab Bar w/Outrigger, Left Hand, 1-1/2" OD, 30" x 33" x 6", Concealed Mount (Snap Flange ), Peened
 | Safety Warning: Grab bars are no stronger than the anchors and walls to which they are attached and, therefore, must be firmly secured in order to support the loads for which they are intended. |
- Higheset quality type 304 stainless steel alloy 18-8. 18 Guage thickness.
- Mandrell bending process ensures uniform bar diameters.
- Heliarc welding forms a single structural unit.
- ADA Compliant (per CABO/ANSI A117.1-2003 and CFR 28 Part 36, 1 July 1994, section 4.26.3 and FAB-ADA-ABA Regulations of 23 July 2004, Section 609
- 1 Year manufacturer's warranty against defects in materials and workmanship.
| Type: | Wall-to-Floor Grab Bar with Outrigger |
| Primary Material: | Stainless Steel |
| Mount Type: | Concealed (Snap Flange) |
| Outside Diameter: | 1-1/2" |
| Rated Width: | 30" |
| Rated Length: | 33" |
| Grip Type: | Peened |
| Finish / Color: | Satin |
| Load Capacity: | Up to 250 lbs. |
| Bariatric: | No |
| Antimicrobial: | No |
| Overall Dimensions: | 37-5/8" Wide x 8-1/8" Tall x 31-5/8" Deep |
| Shipping Dimensions: | 35" Length x 32" Width x 9" Height |
| Shipping Weight: | 16.2 lbs. |
| UPC / GTIN: | Not Published |
| Manufacturer Model No.: | 10-3833-LP |
| Country of Manufacture: | China |
| Warranty: | 1 Yr. Manufacturer's Limited |
Architectural Specifications:
1-1/2" Dia [Ø38] Grab Bar with Snap-On Flange Covers for concealed mounting shall be type 304 stainless steel alloy 18-8. Tubing shall be 1-1/2" Dia [Ø38] x 18 gage. Snap-on cover shall be 22 gage. Flange shall be 11 gage 1/8" [3] thick and shall be Heliarc welded to tubing with a continuous concealed bead. End flanges shall have two (2) 5/16" Dia [Ø7,5] mounting holes. Center posts (if any) shall have (2) keyhole slots to ease installation access. All exposed surfaces shall be satin finish (or Powder Coated (PC) Matte Black finish if suffix -41 is added to Model №) and shall be protected during shipment with a plastic bag. For optional non-slip surface (satin only) add suffix –P (peened).
