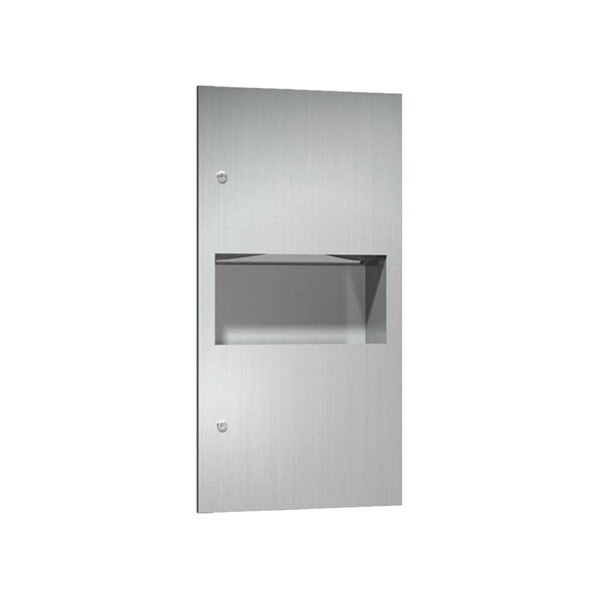

ASI 10-64623 Recessed Multi/C-Fold Paper Towel Dispenser & Waste Receptacle, 2.2 Gal (300C/475M)
Well-suited for the smaller washroom with less space and traffic, this unit dispenses 350 C-fold or 475 multi-fold paper towels. Includes 2.2 gal. (8.4 L) stainless steel waste receptacle. Door held closed with tumbler lock. All exposed surfaces have No 4 satin finish.
Towels are self feeding until supply is depleted. Unit will continue to feed properly when reloaded with a partial load in place. Locked door prevents unauthorized access or removal.
| Type: | C-Fold / Multi-Fold Paper Towel Dispenser with Integrated Waiste Container |
| Primary Material: | Stainless Steel |
| Color / Finish: | Satin (Brushed) |
| Installation Type: | Wall / Recessed |
| Capacity: | 350 C-Fold or 475 Multi-Fold Paper Towels |
| Waste Bin Capacity: | 2.2 Gal. |
| Power: | No power required |
| ADA Compliant: | Yes |
| Overall Dimensions: | 14-1/4" Wide x 28" Tall x 4-3/4" Deep (Projects 1/2" out from wall) |
| Rough-In: | 12-3/4" Wide x 26-1/2" Tall x 4-1/4" Deep |
| Shipping Dimensions: | 32" Length x 17" Width x 6" Height |
| Shipping Weight: | 18.6 lbs. |
| Manufacturer Model No.: | 10-64623 |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Warranty: | Warranted to be free from defects in material and workmanship for a period of one (1) year from date of invoice. |
| Additional Comments: | Tumbler locks use ASI key: E-114. |
Architectural Specifications:
Recessed Paper Towel Dispenser and Waste Receptacle shall hold and dispense 475 standard multi-fold or 350 standard C-fold paper towels and shall have a waste capacity of 2.2 gal. (8.4L). Cabinet, door, dispenser, and waste receptacle shall be fabricated of alloy 18-8 stainless steel, type 304. Cabinet shall be 20 gage with a 1" [25] wide perimeter trim to lay flush against wall and shall have no exposed fastening devices. All exposed surfaces shall be satin (or Powder Coated (PC) Matte Black finish if suffix -41 is added to Model №) finish protected by a PVC film easily removable after installation. Door shall be № 18 gage and shall be attached to the cabinet body with a full length 3/16" Dia [Ø4,8] stainless steel multi-staked piano hinge, and shall be held closed with a tumbler lock keyed alike to other ASI washroom equipment. Towel dispensing slot shall have a fully deburred edge for snag free dispensing and user safety. Waste receptacle shall have a rolled edge finger hole for easy servicing and removal.
