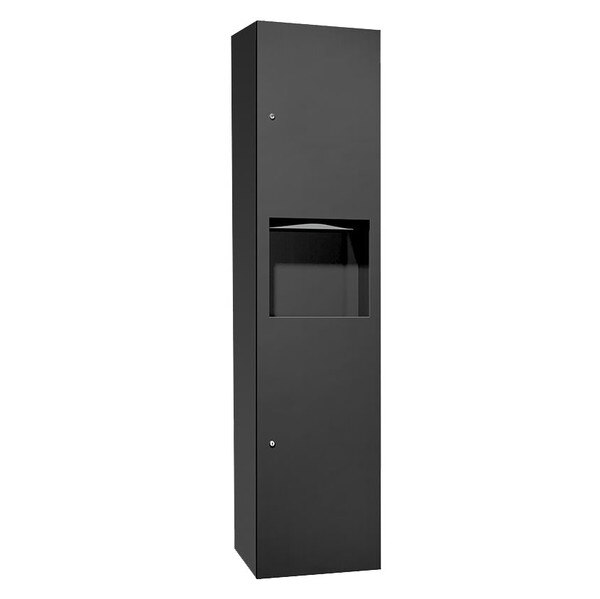

ASI 10-6467-9-41PC Multi/C-Fold Paper Towel Dispenser & Waste Rec., Surface Mt, 4.2 Gal. (600C/800M) - Matte Black
 | NARROW PROFILE (Only 13" Wide) - Matte Black |
Dispenses 600 C-fold or 800 multi-fold paper towels. 4.2 gal. (16 L) stainless steel waste receptacle. Door held closed with two (2) tumbler locks. Waste receptacle has a rolled edge finger hole for easy servicing.
Surface mounted with stainless steel collar.
Paper towels are manually withdrawn through dispensing slot. Unit will continue to feed properly when reloaded with a partial load in place.
Refill dispenser by unlocking door and replacing towels for an empty or partially empty unit. Locking full-face door over compartments prevents unauthorized access or removal.
- Matte Black finish
| Type: | C-Fold / Multi-Fold Paper Towel Dispenser with Integrated Waiste Container |
| Primary Material: | Stainless Steel |
| Color / Finish: | Powder Coated Matte Black |
| Installation Type: | Wall / Surface |
| Capacity: | 600 C-Fold or 800 Multi-Fold Paper Towels |
| Waste Bin Capacity: | 4.5 Gal. |
| Power: | No power required |
| ADA Compliant: | No (Projects 4-3/4" out from wall) |
| Overall Dimensions: | 13" Wide x 55" Tall x 4-1/2" Deep |
| Rough-In: | Not Applicable |
| Shipping Dimensions: | 57" Length x 15" Width x 6" Height |
| Shipping Weight: | 36.5 lbs. |
| Manufacturer Model No.: | 6467-9-41PC |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Warranty: | Warranted to be free from defects in material and workmanship for a period of one (1) year from date of invoice. |
| Additional Comments: | Tumbler locks use ASI key: E-114. |
Architectural Specifications:
Surface Mounted Towel Dispenser and Waste Receptacle shall hold and dispense 800 standard multi-fold or 600 standard C-fold paper towels, and shall have a waste capacity of 4.24 gal (16L). Cabinet, door, skirt, dispenser and waste receptacle shall be fabricated from alloy 18-8 stainless steel, type 304. Full face door shall be 18 gage formed from one piece with no miters, welding or open seams on face with a 1/2" [13mm] return to collar and shall be attached to cabinet at side with a full length 3/16" Dia [Ø4,8] stainless steel multi-staked piano hinge and be held closed with two (2) tumbler locks keyed like other ASI Washroom Equipment. Cabinet shall be 20 gage and skirt shall be 22 gage. Towel dispensing slot shall have a fully hemmed-in rolled edge for snag-free dispensing and user safety. Dispensing mechanism shall include an adapter that permits the use of multi-fold and C-fold paper towels. Waste receptacle shall have a rolled edge finger hole for easy servicing and removal. Structural assembly of all components shall be of welded construction. All exposed surfaces shall be satin (or Powder Coated (PC) Matte Black finish if suffix -41 is added to Model №) finish protected by a PVC film easily removable after installation. Unit shall be supplied with SM collar (skirt) to convert to surface mounting.
