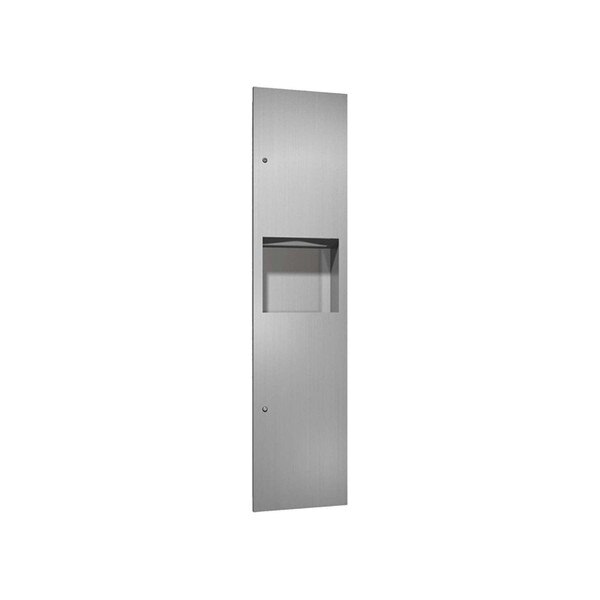

ASI 10-6467 Recessed Multi/C-Fold Paper Towel Dispenser & Waste Receptacle, 4.2 Gal. (600C/800M)
304 Type Stainless steel 18-8 alloy. Satin finish. Dispenses c-fold or multifold type paper towels. 5 Gallon capacity waste bin.
Available in recessed or surface mounted.
For compliance with ICC/ANSI A-117.1-2003 and ADA Accessibility Guidelines install unit so that top edge of towel dispenser opening is 48" (1219) maximum above finished floor (MAX AFF) only if clear floor reach access is provided.
| Type: | C-Fold / Multi-Fold Paper Towel Dispenser with Integrated Waiste Container |
| Primary Material: | Stainless Steel |
| Color / Finish: | Satin (Brushed) |
| Installation Type: | Wall / Recessed |
| Capacity: | 600 C-Fold or 800 Multi-Fold Paper Towels |
| Waste Bin Capacity: | 5 Gal. |
| Power: | No power required |
| ADA Compliant: | Yes |
| Overall Dimensions: | 13" Wide x 55" Tall x 4-3/4" Deep |
| Rough-In: | 11-1/2" Wide x 53-1/2" Tall x 4" Deep |
| Shipping Dimensions: | 59" Length x 16" Width x 7" Height |
| Shipping Weight: | 30.6 lbs. |
| Manufacturer Model No.: | 10-6467 |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Warranty: | Warranted to be free from defects in material and workmanship for a period of one (1) year from date of invoice. |
| Additional Comments: | Tumbler locks use ASI key: E-114. |
Architectural Specifications:
Recessed Towel Dispenser and Waste Receptacle shall hold and dispense 800 standard multi-fold or 600 standard C-fold paper towels, and shall have a waste capacity of 4.24 gal (16L). Cabinet, door, dispenser and waste receptacle shall be fabricated from type 304 stainless steel alloy 18-8. All exposed surfaces shall be satin (or Powder Coated (PC) Matte Black finish if suffix -41 is added to Model №) finish and shall be protected during shipment by PVC film easily removable after installation. Cabinet shall be 20 gage with a 1" [25] wide perimeter trim to lay flush against wall and shall have no exposed fastening devices or visible seams. Full-face door shall be 18 gage, fabricated from one piece with no miters or seams on face and shall have 1/2" [13] square returns to the wall. Door shall be attached to cabinet body with a full length 3/16" Dia [Ø4,8] stainless steel multi-staked piano hinge and shall be held closed with two (2) tumbler locks keyed alike to other ASI washroom equipment. Towel dispensing slot shall have a fully deburred edge for snag free dispensing and user safety. Waste receptacle shall have a rolled edge finger hole for easy servicing.
