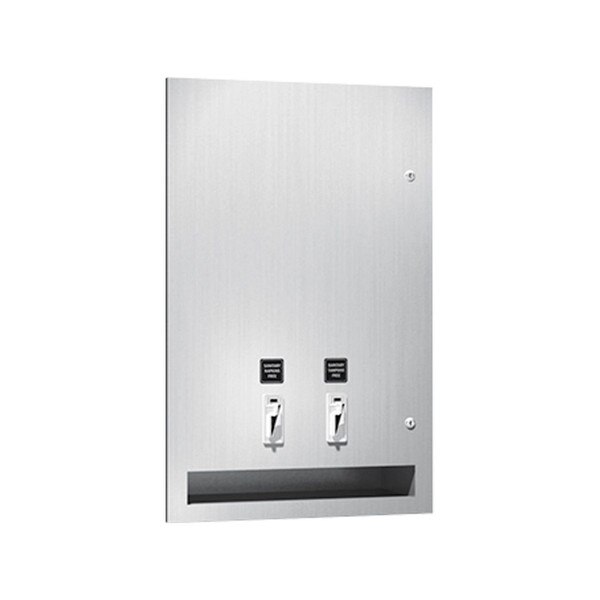

ASI 10-6468-F Sanitary Napkin & Tampon Dispenser, Recessed, Free Operation (30N/27T)
Dispenses 30 feminine napkins and 27 tampons. Door has 2 tumbler locks. Inside coin box has a separately keyed lock.
Allows Free (no coin) operation
| Cover Material: | 20 Gauge Type 304 Stainless Steel Alloy 18-8 |
| Mount: | Wall / Recessed |
| Operation: | Twist Knob |
| Denomination: | Free operation (no coin needed) |
| Capacity: | 30 Sanitary Napkins and 27 Tampons of specified sizes |
| Locks: | Yes, three. Two for front cabinet and one (keyed differently) for coinbox. |
| Overall Dimensions: | 27-1/4" Tall x 17-1/4" Wide x 6-1/2" Deep (Projects 1/2" out from wall, not including knob) |
| Net Weight: | 20.9 lbs. |
| Shipping Dimensions: | 30" Length x 20" Width x 7" Height |
| Shipping Weight: | 31.7 lbs. |
| Comments: | For maximum usability and compliance with ADA Accessibility Guidelines, unit should be installed so that coin slot is between 54" (1372mm) maximum above finished floor (AFF) and 38" (965mm) minimum AFF. Buy American Act Compliant |
Architectural Specifications:
Recessed Mounted Dual Sanitary Napkin & Tampon Dispenser shall hold 30 napkins and 27 tampons of specified sizes and shall have cabinet fabricated of alloy 18-8 stainless steel, type 304. Cabinet shall be 20 gauge. Full face doors shall be fabricated of 18 gauge same grade stainless steel, and shall be attached to cabinet with a full length 3/16′′ (5mm) dia. stainless steel multi-staked piano hinge and shall be held closed with two (2) tumbler locks keyed alike to other ASI washroom equipment. Structural assembly of body and door components shall be of welded construction and have no exposed fasteners or welded seams. All exposed surfaces shall have No 4 satin finish and shall be protected during shipment with a PVC film easily removable after installation. Internal coinbox shall be keyed differently than door locks. Dispensing mechanisms shall be fastener mounted internally to provide ability to change mechanisms for coinage denomination. Weights for each feed track shall be supplied. Factory installed coin operation denomination shall be ________________ (please fill in 25¢ or 50¢ or FREE) and add denomination as suffix to model No (i.e. 6468-25).
