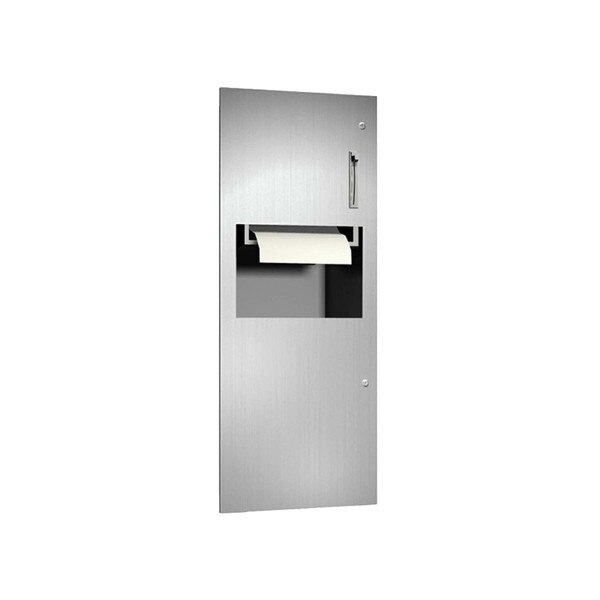

ASI 10-64696 Lever Operated Paper Towel Dispenser & Waste Receptacle, Stainless Steel, 9.4 Gal
Mechanically dispenses one 8″ diameter (Ø203) x 8″ or 9″ (203/229) wide standard towel roll up to 800 feet (244m) long and one stub roll up to 4″ diameter (Ø102) and has a waste capacity of 9.4 gallons (36 liters)
Towels are fed by lever action. Towel feed length is adjustable for economy by pin (supplied) limiting of lever stroke length. Unit may be reloaded with a full roll to automatically start when finished with an existing partial roll and will continue to feed properly when reloaded with a full roll and partial roll is transferred to stub roll position. Refill dispenser by unlocking door and replacing towel roll for an empty or partially empty unit. Locking full-face door over compartments prevents unauthorized access or removal.
| Type: | Lever Operated, Roll Type Commercial Paper Towel Dispenser with Integrated Waste Container |
| Primary Material: | Stainless Steel |
| Color / Finish: | Satin (Brushed) |
| Installation Type: | Wall / Recessed |
| Capacity: | One 8" Dia., 8" Wide Roll One 4" Dia. 8" Wide Stub Roll |
| Waste Bin Capacity: | 9.4 Gal. |
| Power: | No power required |
| ADA Compliant: | Yes |
| Overall Dimensions: | 16-1/16" Wide x 41-1/4" Tall x 9-3/8" Deep (Projects 1/2" out from wall) |
| Rough-In: | 14-5/8" Wide x 39-3/4" Tall x 8-7/8" Deep |
| Shipping Dimensions: | 44" Length x 18" Width x 11" Height |
| Shipping Weight: | 37.3 lbs. |
| Manufacturer Model No.: | 10-64696 |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Warranty: | Warranted to be free from defects in material and workmanship for a period of one (1) year from date of invoice. |
| Additional Comments: | Tumbler locks use ASI key: E-114. |
Architectural Specifications:
Recessed Roll Paper Towel Dispenser and Waste Receptacle shall hold and dispense one 8" diameter [Ø203] x 8" or 9" [203/229] wide standard towel roll up to 800 feet (244m) long and one stub roll up to 4" diameter [Ø102] and shall have a waste capacity of 9.2 gallons (34.8 L). A lever operated dispensing mechanism shall be supplied. Towel dispensing opening shall have a fully deburred edge for snag free dispensing and user safety. Full-face door, cabinet, dispenser and waste receptacle shall be type 304 stainless steel alloy 18-8. All exposed surfaces shall have satin finish and shall be protected during shipment with PVC film easily removable after installation. Door shall be made of one-piece 18 gauge with no miters, welding or open seams on face and have 1/2" [13] square returns to the wall. Cabinet shall be 20 gauge with a 1" [25] wide perimeter trim to lay flush against wall. Unit back plate for mechanism shall be 18 gauge. Door shall be attached to the cabinet body with a full length 3/16" diameter [Ø4.8] stainless steel multi-staked piano hinge and shall be held closed with two (2) tumbler locks keyed alike to other ASI washroom equipment. Waste container shall have hemmed edges for safety and a finger grip for easy removal. Structural assembly of all components shall be of welded construction.
