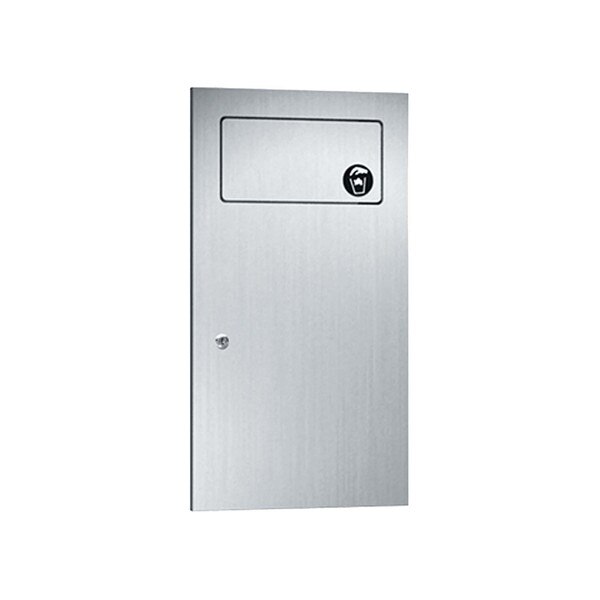

ASI 10-6471 Recessed Sanitary Napkin Disposal, Stiainless Steel, 1.4 Gal., Locking
Waste capacity of 1.4 gal (5.4 liters) of dry/solids waste. Door includes the international graphic symbol for waste and is held closed with a flat spring mounted in cabinet top.
Users push door to deposit waste material into receptacle. Push-door is self-closing. Empty refuse by removing waste container and inverting over collection bag. Safety finger grip on waste container provides convenient grip for service. Locked door prevents unauthorized access or removal. Key lock prevents unauthorized removal of waste bin.
| Mount: | Wall / Recessed |
| Primary Material: | Stainless Steel |
| Capacity: | 1.4 Gal. |
| Lid or Cover: | Yes, swing-in door |
| Locks: | Yes |
| Overall Dimensions: | 10-5/8" Wide x 19-5/8" Tall x 4-1/2" Deep |
| Rough-In: | 9-1/8" Wide x 18-1/8" Tall x 4" Deep |
| Net Weight: | 10.75 lbs. |
| Shipping Dimensions: | 22" Length x 13" Width x 6" Height |
| Shipping Weight: | 11.2 lbs. |
| Warranty: | Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice. |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Comments: | Includes internation graphic waste symbol. Mounting fasteners not included. |
Architectural Specifications:
Recessed Sanitary Napkin Disposal shall have a waste capacity of 1.4 gal (5.4 liters) of dry/solids waste. Full face door shall be fabricated of 18 gauge stainless steel alloy 18-8, type 304 and shall be attached to the cabinet body with a concealed 3/16" diameter (Ø4.8mm) stainless steel multi-staked piano hinge and shall be held closed with a tumbler lock keyed alike to other ASI washroom equipment. Body and push-door shall be 20 gauge stainless steel with no exposed fastening devices or spotwelded seams. Push door shall be hung on a full width concealed 3/16" diameter (Ø4.8mm) stainless steel multi-staked piano hinge and shall be held closed with a flat spring mounted in cabinet top and shall have the international graphic symbol for waste on face. Waste receptacle shall be fabricated of stainless steel and shall have a handle for easy servicing and removal and fully hemmed edges all around top opening for user and service safety. All exposed surfaces of unit shall have a No 4 satin finish, and shall be protected during shipment by PVC film easily removable after installation.
