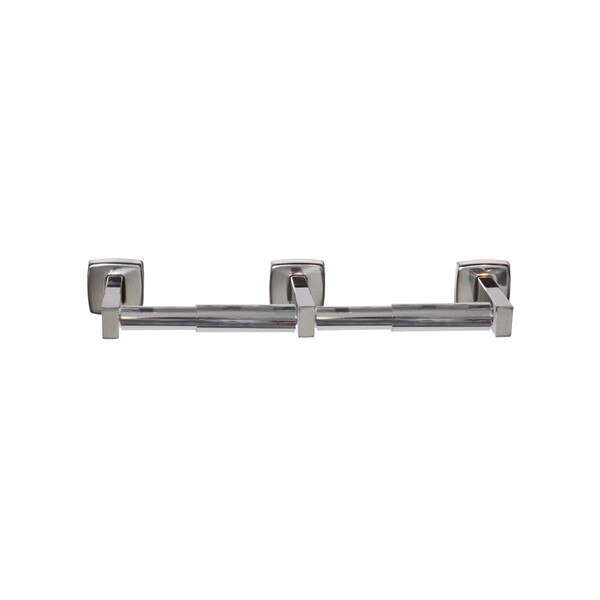

ASI 10-7305-2B Toilet Tissue Holder, Double, Concealed Mount, Bright Finish
Type 304 bright finish stainless steel with chrome-plated roller. Heavy gauge concealed bracket mounts on wall. Holds 1800 sheet standard core roll. Holds 2 rolls.
| Type: | Standard 2 roll (Side-by-Side) |
| Mount: | Wall / Surface, Concealed |
| Primary Material: | Posts: Stainless Steel Spindle: Chrome plated ABS plastic |
| Capacity: | 2 Standard Toilet Paper Rolls (4-1/1" W x Up to 5-1/2" Dia.) |
| Locks: | No |
| Overall Dimensions: | 13-1/2" Wide x 2" Tall x 3-7/8" Deep |
| Net Weight: | 0.75 lbs. |
| Shipping Dimensions: | 8" Length x 6" Width x 4" Height |
| Shipping Weight: | 0.9 lbs. |
| Warranty: | Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice. |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Comments: | Spring-loaded spindles revolve freely and hold rolls until cores are removed. |
Architectural Specifications:
Dual Roll Surface Mounted Toilet Paper Holder unit shall hold and dispense two (2) rolls of standard core roll tissue up to 5- 1/2" (140mm) diameter. Unit shall be fabricated of stainless steel alloy 18-8, type 304. Posts shall be fabricated of 1/2" x 1" (13mm x 25mm) rectangular tubing. Stainless steel setscrews shall be provided on bottom perimeter of flanges to lock unit to mounting plates. Mounting plates shall be included and shall be 18 gauge. Rollers shall be chrome-plated high-impact resistant ABS plastic and two (2) shall be supplied. All exposed surfaces shall be satin or bright finish as chosen by option and indicated by code suffix.
