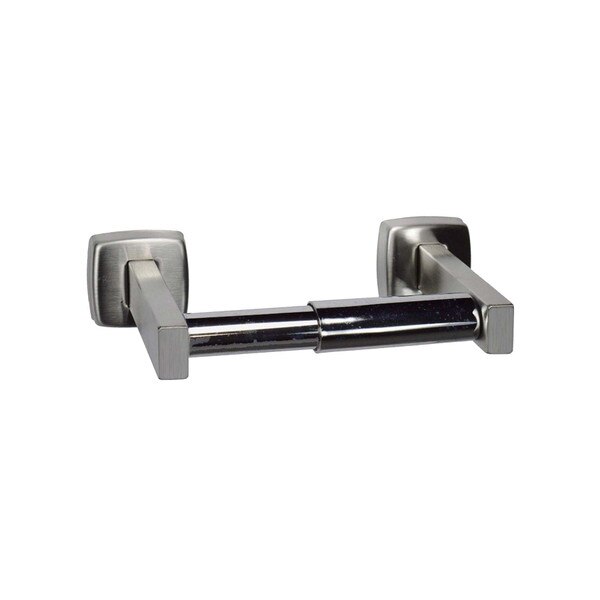

ASI 10-7305-S Toilet Tissue Holder, Single, Concealed Mount, Satin Finish
Type 304 satin finish stainless steel with chrome plated roller. Heavy gauge concealed bracket mounts on wall. Holds 1800 sheet standard core roll.
| Type: | Standard 1 roll |
| Mount: | Wall / Surface |
| Primary Material: | Post: Stainless Steel Spindle: Chrome plated ABS plastic |
| Capacity: | 1 Standard Toilet Paper Roll (4-1/1" W x Up to 5-1/2" Dia.) |
| Locks: | No |
| Overall Dimensions: | 7-3/4" Wide x 2" Tall x 3-7/8" Deep |
| Net Weight: | 0.4 lbs. |
| Shipping Dimensions: | 8" Length x 4" Width x 4" Height |
| Shipping Weight: | 0.5 lbs. |
| Warranty: | Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice. |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Comments: | Spring-loaded spindles revolve freely and hold rolls until cores are removed. |
Architectural Specifications:
Surface Mounted Single Toilet Paper Holder unit shall hold and dispense one roll of standard core roll tissue up to 5- 1/2" Dia [Ø140]. Unit shall be fabricated of stainless steel alloy 18-8, type 304. Posts shall be fabricated of 1/2" [13] x 1" [ 25] rectangular tubing. Stainless steel setscrews shall be provided on bottom perimeter of flanges to lock unit to mounting plates. Mounting plates shall be included and shall be 18 gage. Roller shall be chrome-plated high-impact resistant ABS plastic. All exposed surfaces shall be satin finish, bright finish or Powder Coated (PC) Matte Black finish as chosen by option and indicated by code suffix.
