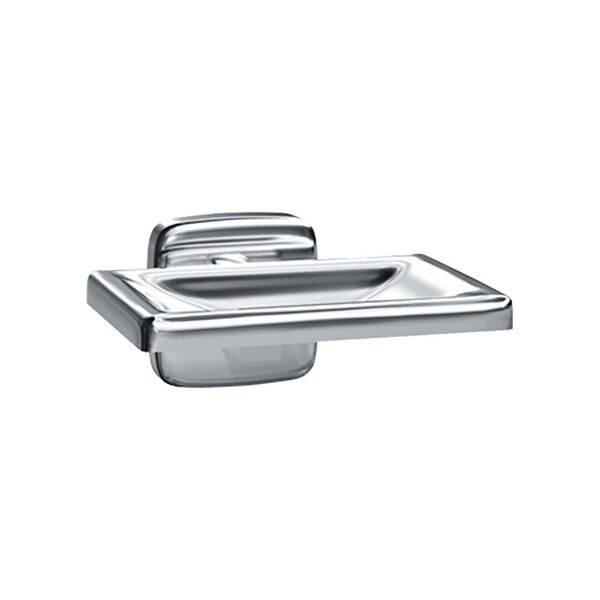

ASI 10-7320-S Wall Mounted Soap Dish with Drain Holes, Stainless Steel, Satin Finish
Drawn, one-piece stainless steel soap dish welded to support arm and flange. Has two drain holes and two ridges to support bar of soap.
| Construction: | Stainless Steel |
| Mount: | Wall / Surface, Concealed |
| Overall Dimensions: | 4-1/4" Wide x 2" Tall x 4" Deep Tray Size: 4-1/4" Wide x 3" Front to Back |
| Net Weight: | 0.3 lbs. |
| Shipping Dimensions: | 6" Length x 6" Width x 6" Height |
| Shipping Weight: | 0.4 lbs. |
| UPC / GTIN: | Not published |
| Warranty: | Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice. |
| Country of Manufacture: | Not published |
| Comments: | Mounting fasteners not included. |
Architectural Specifications:
Soap Dish With Drain Holes shall be fabricated of stainless steel alloy 18-8, type 304. Soap dish shall be of drawn seamless construction and shall be fabricated with integral ribs. Support post shall be 1" x 1/2" (25mm x 13mm) rectangular tubing with formed mounting flange and bracket welded on end. A stainless steel setscrew shall be provided on bottom perimeter of flange to lock unit to mounting plate. Mounting plate shall be provided and shall be 18 gauge. Surface finish shall be bright or satin as chosen by option and indicated by code suffix.
