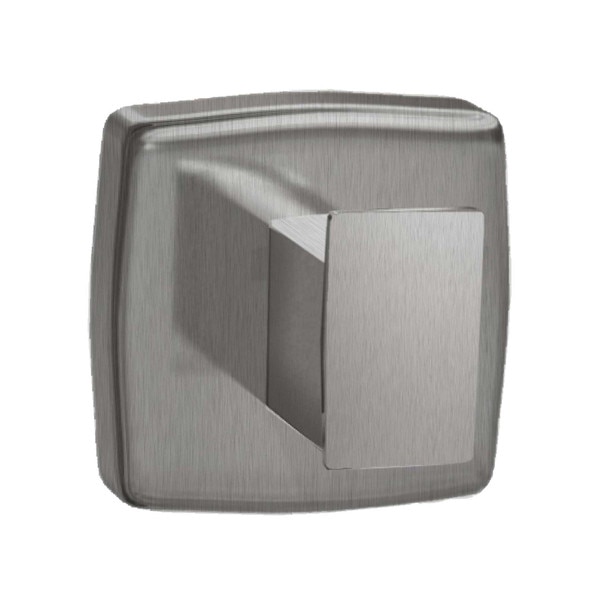

ASI 10-7340-S Stainless Steel Robe Hook, Single, Concealed Mount, Satin Finish
Hook extends 2″ (51 mm) from wall and is suitable for a robe or clothing and small carry bags. Fabricated from stainless steel, satin finish.
Measurement Diagram:
| Primary Material: | Stainless Steel |
| Finish: | Brushed |
| Mount: | Wall / Surface, Concealed |
| Capacity: | Not published |
| Overall Dimensions: | 2" Wide x 2" Tall x 2" Deep |
| Net Weight: | 0.3 lbs. |
| Shipping Dimensions: | 6" Length x 4" Width x 4" Height |
| Shipping Weight: | 1 lb. |
| Warranty: | Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice. |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Comments: | Does not include mounting hardware. |
Architectural Specifications:
Single Robe Hook shall be fabricated of stainless steel alloy 18-8, type 304. Post shall be 22 gauge, 1/2" x 1" [13 x 25] rectangular tubing with formed 22 gauge mounting flange and bracket welded on end. Cap plate shall be 14 gauge, 3/4" x 1-1/4" [19 x 32] with radiused corners and internally welded to outer end. Mounting plate shall be included and shall be 18 gauge. A stainless steel set screw shall be provided on bottom perimeter of flange to lock unit to mounting plate. Surface finish shall be bright, satin or white powder coated, as chosen by option and indicated by code suffix.
