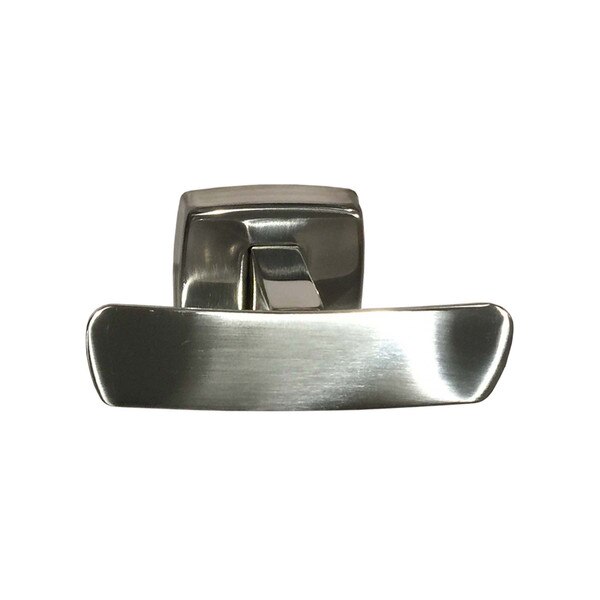

ASI 10-7345-B Stainless Steel Robe Hook, Double, Concealed Mount, Bright Finish
4″ (102 mm) wide stainless steel bar forms hook at each end. Unit extends 2″ (51 mm) from wall. Hook is suitable for robes or clothing and small carry bags. Bright finish.
| Primary Material: | Stainless Steel |
| Finish: | Polished |
| Mount: | Wall / Surface, Concealed |
| Capacity: | Not published |
| Overall Dimensions: | 4" Wide x 2" Tall x 2" Deep |
| Net Weight: | 0.3 lbs. |
| Shipping Dimensions: | 6" Length x 4" Width x 4" Height |
| Shipping Weight: | 1 lb. |
| Warranty: | Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice. |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Comments: | Does not include mounting hardware. |
Architectural Specifications:
Double Robe Hook shall be fabricated of stainless steel alloy 18-8, type 304. Post shall be 1/2" x 1" (13mm x 25mm) rectangular tubing with formed mounting flange and bracket welded on end. Bow plate shall be 14 gauge, 4" x 1" (102mm x 25mm) with radiused corners and internally welded to outer end. Mounting plate shall be included and shall be 18 gauge. A stainless steel setscrew shall be provided on bottom perimeter of flange to lock unit to mounting plate. Surface finish shall be bright or satin as chosen by option and indicated by code suffix.
