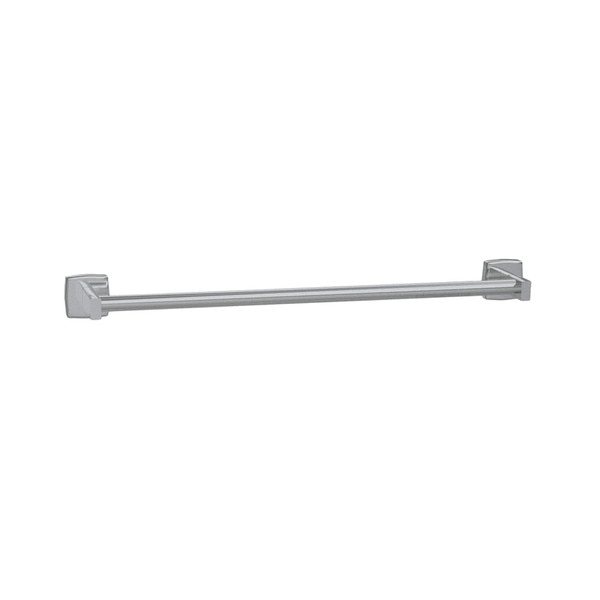

ASI 10-7355-24S Towel Bar, Stainless Steel, Round Rod, Satin Finish, 24", Concealed Mount
3⁄4″ (19 mm) diameter stainless steel towel bar and stainless steel mounting bracket. Extends 3-1⁄4″ (83 mm) from wall.
Satin finish, 24″ Length (610 mm)
| Primary Material: | Stainless Steel |
| Mount: | Wall / Surface, Concealed |
| Bar Style: | 3/4" O.D. Round |
| Rated Length: | 24" |
| Overall Dimensions: | 26" Wide x 2" Tall x 3-1/4" Deep |
| Net Weight: | 0.8 lbs. |
| Shipping Dimensions: | 26" Length x 4" Width x 4" Height |
| Shipping Weight: | 1 lb. |
| UPC / GTIN: | Not published |
| Warranty: | Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice. |
| Country of Manufacture: | Not published Buy American Act compliant |
| Comments: | Mounting fasteners not included. |
Architectural Specifications:
Round Towel Bar shall be fabricated of type 304 stainless steel alloy 18-8. Shelf posts shall be 1/2" x 1" [13 x 25] rectangular tubing with formed mounting flange and bracket welded on end. Bar shall be 26 gauge, 3/4" diameter [Ø19] and shall be held in receiver holes in support posts. Mounting plates shall be included and shall be 18 gauge. Stainless steel setscrews shall be provided on bottom perimeter of flanges to lock unit to mounting plates. Length shall be as chosen from schedule and indicated by code suffix. Surface finish shall be bright (polished) or satin (brushed) as chosen by option and indicated by code suffix.
