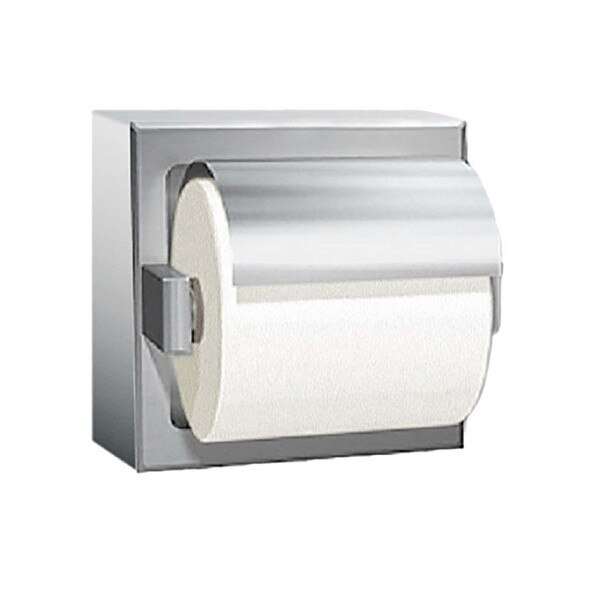

ASI 10-7402-HBSM Toilet Tissue Holder, Single, Surface Mount, Hooded, St Steel, Bright
Bright Finish. Includes Hood. Surface Mounted Toilet Paper Holder holds and dispenses all standard core roll tissue up to 6’’ diameter (Ø152) roll. Fabricated of stainless steel type 304 alloy 18-8. Roller is chrome plated high impact resistant ABS plastic and spring-loaded.
| Type: | Standard 1 roll |
| Mount: | Wall / Surface, Exposed |
| Primary Material: | Frame: Stainless Steel Spindle: Chrome Plated, high-impact resistant ABS plastic |
| Capacity: | 1 Standard Toilet Paper Roll (4-1/1" W x Up to 5-1/2" Dia.) |
| Locks: | No |
| Overall Dimensions: | 6-5/16" Wide x 6-5/16" Tall x 3-15/16" Deep |
| Net Weight: | 1.4 lbs. |
| Shipping Dimensions: | 7" Length x 7" Width x 4" Height |
| Shipping Weight: | 1.6 lbs. |
| Warranty: | Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice. |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Comments: | Mounting fasteners not included. |
Architectural Specifications:
Surface Mounted Toilet Paper Holder with Hood shall hold and dispense all standard core roll tissue up to 6" diameter (Ø152) roll and shall be of one piece construction fabricated of stainless steel type 304 alloy 18-8. Outer shell shall have two (2) dimpled holes for installation. Hood shall be attached to top of unit with a full-length brass pivot rod. Roller shall be chrome plated high impact resistant ABS plastic and shall be spring-loaded. Mounting collar shall be fully enclosed and shall fit behind unit flange. All exposed surfaces shall be satin or bright finish as chosen by option and indicated by code suffix.
