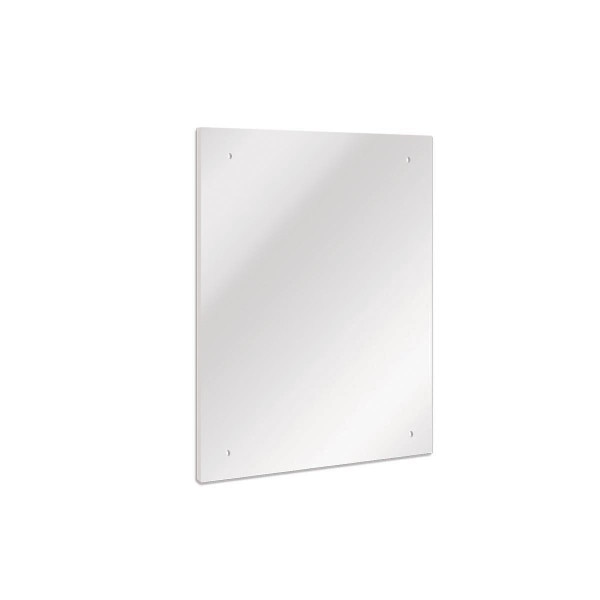

ASI 10-8026-1624 Frameless Stainless Steel Mirror 16" Wide X 24" Tall w/Masonite Backing
American Specialties frameless 16" wide x 24" tall stainless steel mirror with 5/8" returns. 1/4" tempered, water resistant Masonite back. 20 gauge Type 304 (18-8) stainless steel with No. 8 mirror finish. Four 7/32" diameter mounting holes. (Mounting hardware not provided.)
Stainless steel mirrors are used in various settings because of their durability, corrosion resistance, and safety, including public spaces (bus depots, train stations, recreational facilities, etc. where vandalism is a concern. They are also ideal for medical facilities, laboratories, and other sensitive areas.
| Brand: | ASI |
| Manufacturer Model No.: | 10-8026-1624 |
| Glazing: | Polished Stainless Steel |
| Overall Dimensions: | 18" Wide x 24" Tall x 5/16" Deep |
| Shipping Dimensions: | Not Published Approximately 28" Length x 20" Width x 4" Height |
| Shipping Weight: | 8.8 lbs. |
| UPC / GTIN: | Not Published |
| Country of Manufacture: | Not Published (Buy USA Certified) |
| Warranty: | 1 Yr. Manufacturer's Warranty |
| Additional Comments: | Mounting hardware not included. |
Architectural Specifications:
Frameless Stainless Steel Mirror with Masonite Back shall be № 8 mirror finish 20 gage type 304 stainless steel alloy 18-8. Backing shall be 1/4" [6] thick tempered waterproof Masonite. Unit shall have 5/16" [8] returns to wall all around. Unit shall have four (4) 7/32" Dia [Ø5,5] mounting holes for sizes up through 24 x 30; sizes 24 x 36 and up shall have six (6) mounting holes.
