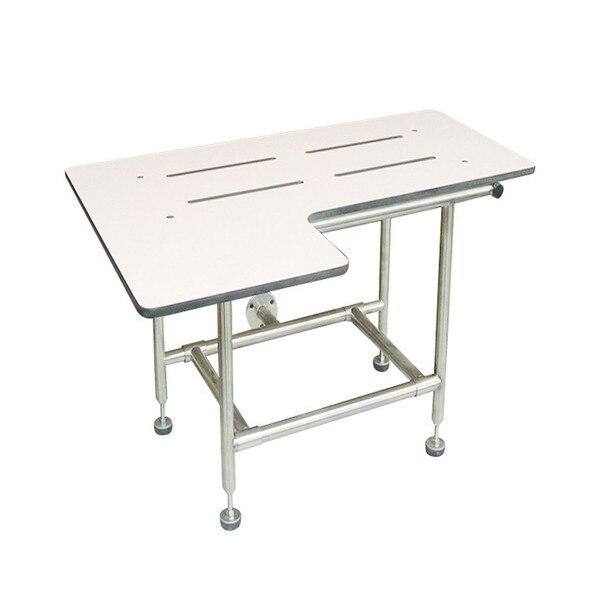

ASI 10-8202 Folding Shower Seat, L-Shape. Field Reversible, Phenolic Seat
Seat is 1/2” (13mm) thick solid phenolic, with white top and bottom surfaces and black edges, and is field reversible for left or right hand. Rear load feet remain on floor with rear frame mounted to wall and never need adjustment after correct installation.
Front legs fold up automatically when seat is raised. Height is adjustable. Gravity prevents seat from dropping. Shower seat exceeds ADA Accessibility Guidelines when mounted properly.
| Seat Material: | Solid Phenolic (L-shape) 1/2" x 33-1/2" x 21" (13 x 851 x 533) nonporous seat has white top and bottom surfaces with semi-gloss finish and black edges with radiused and burr free corners. |
| Frame: | 14 gauge (.075" <1.9> thick) 1" diameter (Ø25) and 16 gauge (.06" <1.5> thick) & 20 gauge (.04" <1.0> thick) 1-1/8" diameter (Ø29), all type 304 stainless steel. |
| Capacity: | 250 lbs. (designed to meet and exceed ADAAG requirements as published in CABO/ANSI A117.1 -2003 section 610 and CFR 28 Part 36, Federal Register Vol. 56, No 144 July 26, 1991, section 4.21.3 and section 4.26.3) |
| Operation: | Fold-up with Hook Bracket |
| Overall Dimensions: | OPEN: 33-1/2" Wide x 21" Deep (Top, when mounted, 17 to 18-1/4" from floor) CLOSED: 33-1/2" Wide x Approx. 5" Deep Seat size: 33" Wide x 23" Deep x 1" Thick |
| Net Weight: | 32.9 lbs. |
| Shipping Dimensions: | 35" Length x 28" Width x 7" Height |
| Shipping Weight: | 35.9 lbs. |
| Comments: | Seat is field reversible for left or right hand. Seat have slots for water drainage and user slip resistance Buy American Act Compliant |
Architectural Specifications:
L-shaped Phenolic Four-Leg Fold-up Shower Seat shall have all metal parts fabricated of type 304 stainless steel 18-8 alloy. Seat frame and support legs shall be 1-1/8" diameter (Ø29) x 16 gauge and 1" diameter (Ø 25) x 14 gauge and pivoting sleeves shall be 1-1/8" diameter (Ø29) x 20 gauge with 3/16" (4.8) thick mounting flanges and 12 gauge seat mounting brackets. All exposed surfaces shall have satin finish. Structural assembly shall be of welded construction and all exposed edges and corners shall be radiused and/or deburred. Seat shall be solid phenolic with white top and bottom surfaces and shall have black edges. Legs shall fold up when in retracted position to provide low profile against wall. Stainless steel hook bracket shall be provided to retain seat in storage position. Rubber cushioned stainless steel leveling feet shall lock-adjust throughout installation height range and compensate for uneven floors. Unit shall satisfy ADA Accessibility Guidelines when mounted properly.
