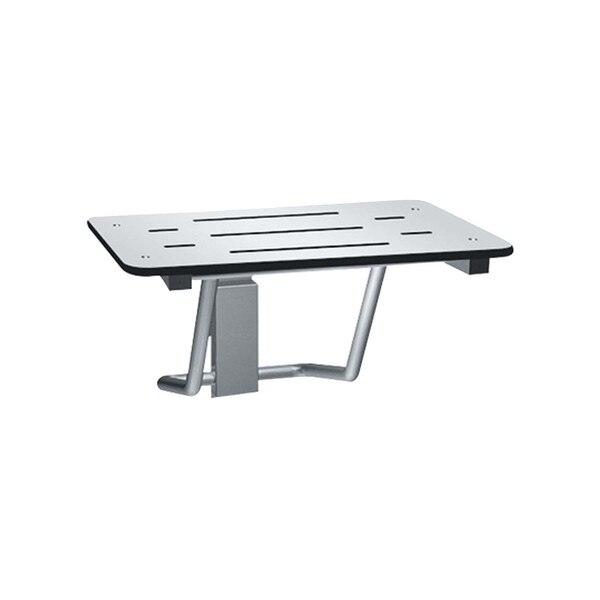

ASI 10-8203-28 Folding Shower Seat, Rectangular, Compact, White Phenolic, ADA, 28" Wide
Seat is 5/16” (8 mm) thick, one piece, solid phenolic, semi-gloss laminate white colored top and bottom and shall have black edges. Frame, support legs, flanges and bracket are type 304 satin finished stainless steel. Guide bracket shall control seat lowering into operating position.
Seat measures 28” (711 mm) wide and projects 14½” (368 mm) from wall.
| Mount: | Wall / Surface, Exposed |
| Frame Material: | Stainless Steel |
| Seat Material: | Phenolic |
| Capacity: | 250 lbs. (Tested to 500 lbs. See comments.) |
| Operation: | Fold down (flip up when not in use) |
| Overall Dimensions: | OPEN: " Wide x " Tall x " Deep CLOSED: " Wide x " Tall x " Deep |
| Net Weight: | 19.6 lbs. |
| Shipping Dimensions: | 30" Length x 18.5" Width x 5" Height |
| Shipping Weight: | 20.6 lbs. |
| UPC / GTIN: | Not published |
| Warranty: | Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice. |
| Country of Manufacture: | Not published |
| Comments: | ASI Shower Seats ar e designed to meet and exceed 2010 ADA Accessibility Standards and ANSI A117.1 that fabricated product shall be of adequate strength to support a load of 250 pounds (113.4 kg) and unit shall conform to size and edge clearances as diagrammed. |
Architectural Specifications:
Phenolic Fold –Up Shower Seat shall have all metal parts fabricated from alloy 18-8 stainless steel, type 304; seat frame and support legs shall be 1" diameter (Ø25) and 1-1/4" (32) square x 18 gauge (1.2) with 3/16" (4.8) mounting flanges and 16 gauge (1.5) guide bracket/arm support. All exposed surfaces shall have satin finish. Seat shall be 5/16" (8) thick phenolic with white color top and bottom surfaces and shall have black edges. Structural assembly shall be of welded construction and all exposed edges and corners shall be radiused and/or deburred. Support arm shall fold up when in retracted position to provide low profile against wall. No extra fittings shall be required to retain seat in storage position. Guide bracket shall control seat lowering into operating position. Unit shall satisfy 2010 Accessibility Standards when mounted properly.
