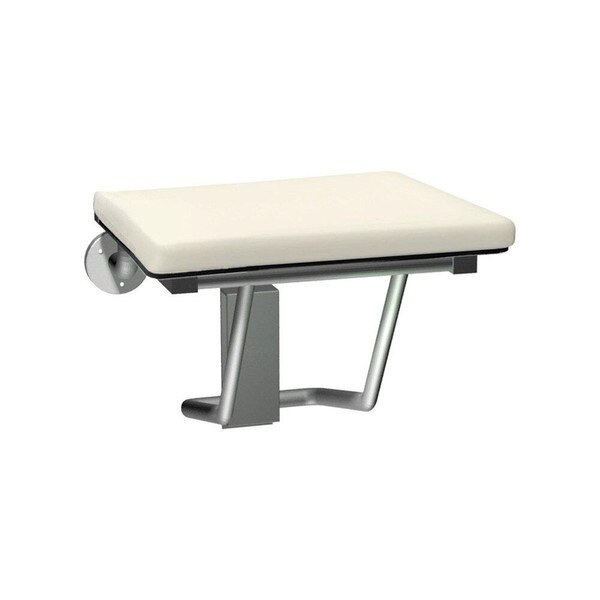

ASI 10-8204 Folding Shower Seat, Rectangular, Compact, Padded Naugahyde, ADA, 18" Wide
5/16″ (8 mm) thick, one-piece, solid, padded, black core phenolic seat. Frame, support legs, flanges and bracket are type 304 satin finish stainless steel. Features a self-locking mechanism.
Seat is sponge cushion covered with off-white Naugahyde® mounted on 1⁄2″ (13 mm) thick marine grade plywood.
| Seat Material: | Closed cell medium density foam cushion covered with off-white Naugahyde® on a 1/2" [13] thick base of marine grade plywood. Seat cover top edge seam is sewn internally, laid flat and restitched for strength and smooth comfort. All seams are sewn using mildew-resistant Nylon® heavyweight thread. |
| Frame: | 14 gauge (.075" <1.9> thick) 1" diameter (Ø25) and 16 gauge (.06" <1.5> thick) & 20 gauge (.04" <1.0> thick) 1-1/8" diameter (Ø29), all type 304 stainless steel. |
| Capacity: | 500 lbs. (designed to meet and exceed ADAAG requirements as published in CABO/ANSI A117.1 -2003 section 610 and CFR 28 Part 36, Federal Register Vol. 56, No 144 July 26, 1991, section 4.21.3 and section 4.26.3) |
| Operation: | Flip down (one handed) with guide bracket and spring |
| Overall Dimensions: | OPEN: 18" Wide x 15-1/4" Deep (Seat top, when mounted, 17 to 19" from floor) CLOSED: 18" Wide x 5-35/64" Deep Seat size: 18" Wide x 15-1/4" Deep (thickness not published) |
| Net Weight: | 11 lbs. |
| Shipping Dimensions: | 23" Length x 20" Width x 6" Height |
| Shipping Weight: | 12.4 lbs. |
| Comments: | Fold-up Shower Seat requires only one hand operation to manually lower to horizontal position for use or raise for departure and arrival. Guide bracket with spring detent prevents seat from dropping and provides positive support in usage position as well as spring locked storage position. |
| Country of Manufacture: | Taiwan |
Architectural Specifications:
Compact Padded Rectangular Fold-up Shower Seat shall have all metal parts fabricated of 18-8 alloy type 304 stainless steel. Seat frame and support legs shall be 1"dia [Ø25] and 1-1/4" [32] square x 18 gauge [1,2] with 3/16" [4,8] thick mounting flanges and 16 gauge [1,5] guide bracket/arm support. All exposed surfaces shall have satin finish. Structural assembly shall be of welded construction and all exposed edges and corners shall be radiused and/or deburred. Seat shall be sponge cushion covered with off-white Naugahyde® mounted on 1/2" [13] thick marine grade plywood. Support arm shall fold up when in retracted position to provide low profile against wall. No extra fittings shall be required to retain seat in storage position. Guide bracket shall control seat lowering into operating position. Unit shall satisfy 2010 ADA Accessibility Standards when mounted properly.
