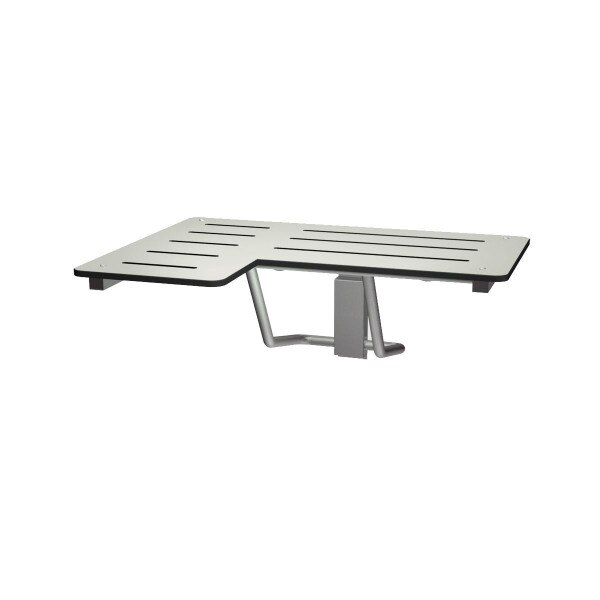

ASI 10-8206-R Folding Shower Seat, L-Shaped, Right Hand Orientation, White Phenolic, ADA
(Right Hand) Meets ADA Accessibility Guidelines and the needs of the physically disabled and elderly. Seat is ½” (13 mm) thick, one piece solid, white colored, black core phenolic. Frame, support legs, flanges, and bracket are type 304 satin finish stainless steel. Phenolic seat ONLY is field reversible. Seat measures 33″ (838 mm) wide and projects 22-7⁄8″ (581 mm) from wall.
| Seat: | 33" Wide x 21-1/2" Deep x 1/2" Thick White on top and bottom, black on edges |
| Frame Material: | 18 gauge (.048" [1,22] thick), type 304 stainless steel, 1" diameter [Ø25] and 1-1/4" [32] square. Unit-ized all welded construction. Exposed surfaces have satin finish. |
| Operation: | Fold Up |
| Load / Capacity: | Tested to 1000 lbs. 500 lbs. Max Capacity |
| Overall Dimensions: | OPEN: 33" Wide x 22-7/8" Deep (Top, when mounted, 17-19" from floor) CLOSED: 33" Widex 5-13/16" Deep (Top, when mounted, 35-3/8 to 37-3/8" from floor) |
| Net Weight: | 22.4 lbs. |
| Shipping Dimensions: | 36" Length x 24" Width x 7" Height |
| Shipping Weight: | 25.4 lbs. |
| Warranty: | 1 Year Manufacturer's Limited |
| Comments: | Fold-up Shower Seat requires only one hand operation to lower to horizontal position for use or raise. Guide bracket with spring detent prevents seat from dropping and provides positive support in usage position as well as spring locked storage position. Seat is field reversible. |
Architectural Specifications:
L-shaped Phenolic Fold-up Shower Stall Seat shall have all metal parts fabricated of 18-8 alloy type 304 stainless steel. Seat frame and support legs shall be 1" diameter [Ø25] and 1-1/4" [32] square x 18 gauge [1,2] with 3/16" [4,8] thick mounting flanges and 16 gauge [1,5] guide bracket/arm support. All exposed surfaces shall have satin finish. Structural assembly shall be of welded construction and all exposed edges and corners shall be radiused and/or deburred. Seat shall be solid phenolic with white color top and bottom surfaces and shall have black edges. Support arm shall fold up when in retracted position to provide low profile against wall. No extra fittings shall be required to retain seat in storage position. Guide bracket shall control seat lowering into operating position. Unit shall satisfy 2010 ADA Accessibility Standards when mounted properly.
