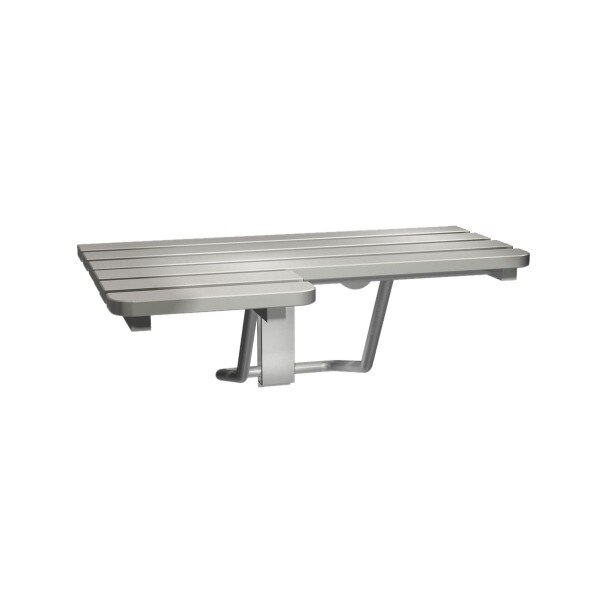

ASI 10-8208-R Folding Shower Seat, L-Shaped, Right Hand Orientation, Stainless Steel Seat, ADA
Right-facing folding shower seat. Slats are fabricated with stainless steel in satin finish. Requires only one hand operation to manually lower to horizontal position for use or raise for departure and arrival. Guide bracket with spring detent prevents seat from dropping and provides positive support in usage position as well as spring locked storage position.
| Seat: | 1" x 3" (25 x 76) x 18 gauge rectangular tubing with welded closed ends |
| Frame: | 18 gauge (1.3) tubing with 3/16" (4.8) thick mounting flanges and 16 gauge (1.5) guide bracket/arm support |
| Capacity: | 250 lbs. (designed to meet and exceed ADAAG requirements as published in CABO/ANSI A117.1 -2003 section 610 and CFR 28 Part 36, Federal Register Vol. 56, No 144 July 26, 1991, section 4.21.3 and section 4.26.3) |
| Operation: | Fold-up Bracket |
| Overall Dimensions: | OPEN: 33" Wide x 23" Deep (Top, when mounted, 17-19" from floor) CLOSED: 33" Wide x 6" Deep (Top, when mounted, 35-37" from floor) Seat size: 33" Wide x 23" Deep x 1" Thick |
| Net Weight: | 33 lbs. |
| Shipping Dimensions: | 35" Length x 28" Width x 7" Height |
| Shipping Weight: | 35.3 lbs. |
| Warranty: | 1 Year Manufacturer's Limited |
| Comments: | Fold-up Shower Seat requires only one hand operation to lower to horizontal position for use or raise. Guide bracket with spring detent prevents seat from dropping and provides positive support in usage position as well as spring locked storage position. Seat is field reversible. |
Architectural Specifications:
Fold-up Shower Stall Seat shall be made of 1" dia. (Ø25) and 1-1/4" (32) square x 18 gauge (1.3) tubing with 3/16" (4.8) thick mounting flanges and 16 gauge (1.5) guide bracket/arm support. Seat slats shall be 1" x 3" (25 x 76) x 18 gauge rectangular tubing with welded closed ends. All shall be fabricated of seamless type 304, 18-8 alloy stainless steel. All exposed surfaces shall have a satin finish. Structural assembly shall be of welded construction. All exposed edges and corners shall be radiused and/or deburred. Support arm shall fold up when in retracted position to provide low profile against wall. No extra fittings shall be required to retain seat in storage position. Guide bracket shall control seat lowering into operating position. Unit shall satisfy 2010 ADA Accessibility Standards when mounted properly.
