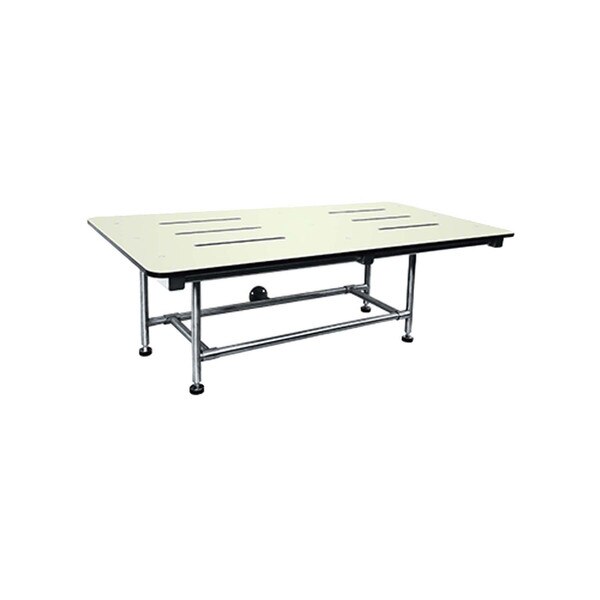

ASI 10-8209 Fold-up Shower Seat, Rectangular, White Phenolic, ADA, 22-1/2" Deep x 48" Wide
Seat is white colored, black core phenolic. Frame, mounting bracket and retainer hook are type 304 satin finished stainless steel. Seat is 22-1/2″ (572 mm) deep and 48″ (1219 mm) wide, projecting 24″ (610 mm) from the wall when in the open position.
When retracted, legs fold up to provide low profile against wall.
| Seat Material: | Ivory Phenolic |
| Frame Material: | Stainless steel with vinyl wall bumper strip and rubber feet |
| Operation: | Fold Up |
| Load / Capacity: | 1000 lbs. |
| Overall Dimensions (Folded Up): | 44" Tall x 48" Wide x 6-15-64" Deep |
| Overall Dimensions (Folded Down): | 17 to 18-1/4" Tall (adjustable) x 48" Wide x 24" Depth (wall to front) |
| Net Weight: | 71 lbs. |
| Shipping Dimensions: | 50" Length x 28" Width x 6" Height |
| Shipping Weight: | 74 lbs. |
| Warranty: | 1 Year Manufacturer's Limited |
Architectural Specifications:
Rectangular Phenolic Four-Leg Fold-up Shower Bench shall have all metal parts fabricated of 18-8 alloy type 304 stainless steel. Seat frame and support legs shall be 1" Dia. [Ø25] and 1-1/2" [38] square x 18 gauge [1,2] with black plastic end caps and support legs shall be 1-1/8" Dia. [Ø29] x 16 gage and 1" Dia. [Ø25] x 14 gage and pivoting sleeves shall be 1-1/8" Dia. [Ø29] x 20 gage with 3/16" [4,8] thick mounting flanges. All exposed surfaces shall have satin finish. Structural assembly shall be of welded construction and all exposed edges and corners shall be radiused and/or deburred. Seat shall be solid phenolic with white color top and bottom surfaces and shall have black edges. Legs shall fold up when in retracted position to provide low profile against wall. Hook (provided) shall retain seat in storage position. Rubber cushioned stainless steel leveling feet shall lockadjust throughout installation height range and compensate for uneven floors. Unit shall satisfy 2010 ADA Accessibility Standards when mounted properly.
