ASI 10-9013 Fold Down Recessed Mount Baby Changing Station, Stainless Steel, Horizontal
 | Save over $1500, our biggest site discount, by purchasing our special deal clearance sale listing due to a dent from shipping! (see SD21-0003) This product ships LTL on a pallet via freight service. |

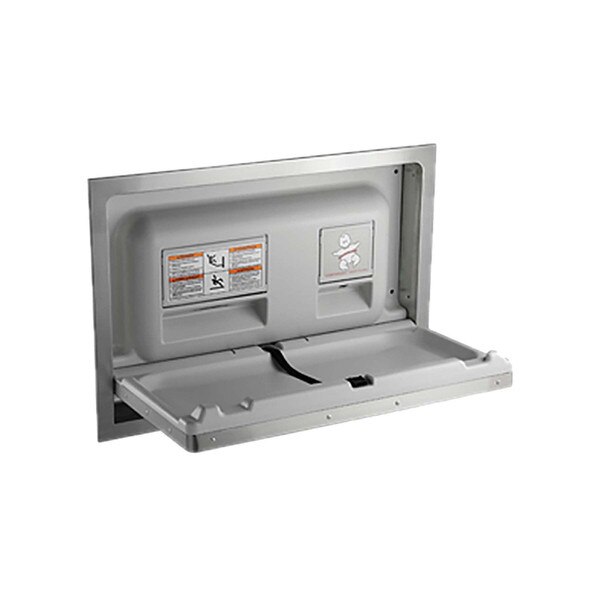

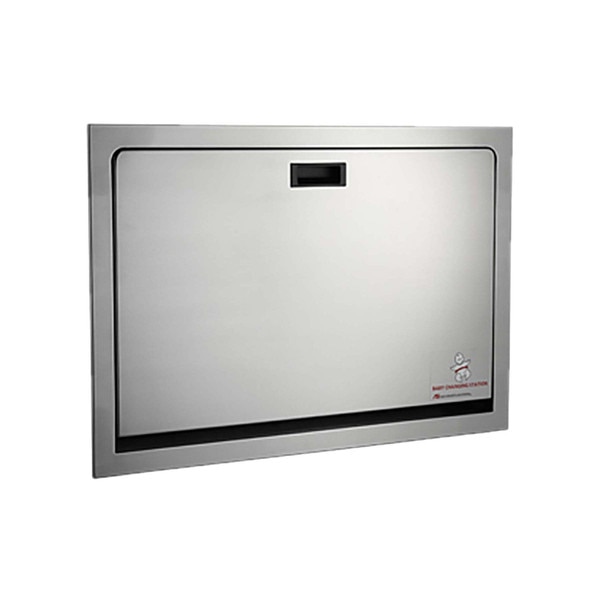

ADA-compliant unit features welded stainless steel for long and reliable use.
Exposed surfaces are satin finish.
Easy one-handed operation is assisted by a pull handle and concealed spring.
The changing surface is high-impact-resistant plastic for easy cleaning.
Two part adjustable safety strap assures child protection.
Surface mounted with stainless steel collar.
NOTE: While it has been tested for durability with higher loads, this product is intended only for use with children up to 3-1/2 years and 50 lbs.
- Built-in sanitary bed liner dispenser that may be easily converted to a multi-fold towel dispenser with no adapters.
- Includes two integral heavy-duty bag hooks clearly marked with international-style symbols
- Adjustable two-part child protection safety-strap and cam buckle adjustable with one hand.
- Rounded contoured pull handle and concealed damped gas spring to assist user in opening and closing unit with one hand
- Mounts on standard stud wall dimensions and with proper anchoring may mount on all suitable wall constructions
- Five (5) years warranty against defects in material or workmanship.

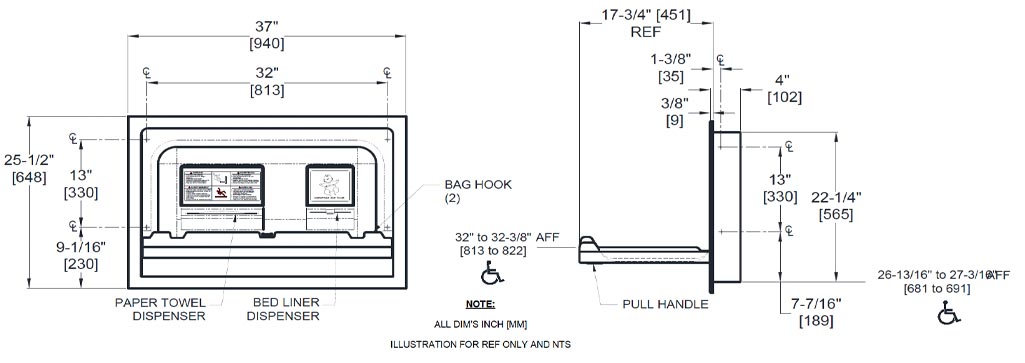

Measurement Diagram:
| Brand: | ASI Traditional |
| Manufacturer Model No.: | 10-9013 |
| Type: | Horizontal |
| Mount: | Wall / Recessed |
| Cover / Color: | Stainless Steel, Brushed Finish |
| Bed Material: | FDA approved, non-porous HDPE |
| Static Load: | Up to 400 lbs. |
| Live Load: | Up to 50 lbs. including child and parcels |
| Mechanism: | Concealed damped gas spring to assist user in opening and closing unit with one hand. |
| Safety Belt: | Non-porous, vinyl coated djustable two-part child protection safety-strap for easy sanitation and one handed operation. |
| Liner Dispenser: | Bed liner dispenser, and a C-fold towel and multi-fold towel dispenser which can easily be converted to a multi-fold towel dispenser that needs no adapters. |
| Product Dimensions (Closed): | 25-1/2" Tall x 37" Wide x 3/8" Deep |
| Product Dimensions (Open): | 25-1/4" Tall x 37" Wide x 17-3/4" Deep |
| Rough-In: | 22-3/4" Tall x 34-1/4" Wide x 3-3/4" Deep |
| Shipping Dimensions: | 43" Length x 32" Width x 5" Height |
| Shipping Weight: | 77 lbs. |
| UPC / GTIN: | Not published |
| Country of Manufacture: | USA |
| Warranty: | 5 Yr. Manufacturer's Limited |
Architectural Specifications:
Recessed Stainless Steel Baby Changing Station shall protrude no more than 3/8" [10] form wall when in retracted position. Door, flange and cabinet shall be type 304 stainless steel, all welded construction. All exposed surfaces shall be polished to a satin finish. The door shall be 16 gauge [1,5] and the flange and cabinet shall be 18 gauge [1,2]. The changing table shall be equipped with a rounded contoured pull handle and shall have a concealed damped gas spring to assist user in opening and closing unit with one hand. The bed liner shall be light gray, high impact plastic with a smooth finish for easy cleaning. The liner shall be shaped to cradle a child’s body and shall be equipped with an adjustable two-part child protection safety strap and cam buckle adjustable with one hand. Unit shall include two bag hooks, bed liner dispenser, and a C-fold towel and multi-fold towel dispenser which can easily be converted to a multi-fold towel dispenser that needs no adapters. Unit shall have a minimum holding capacity of 400 lbs (181,4 kg). The strength of the supporting wall and hardware must be adequate to support the rated load. Unit shall provide graphic and instructions in 4 languages. Unit shall comply with ASTM F-2285, G-21, G-22 and ANSI Z535 and shall be warranted for five (5(more...)
