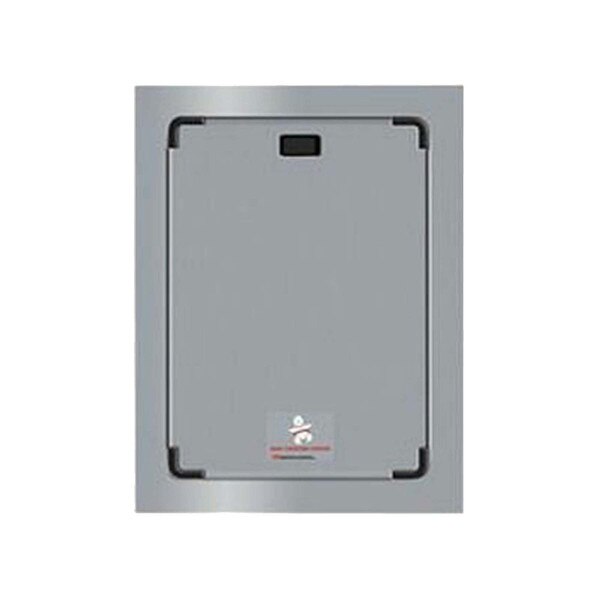

ASI 10-9017 Fold Down Recessed Mount Baby Changing Station, Stainless Steel, Vertical
 | This product ships LTL on a pallet via freight service. |
This vertical station has a door facing and collar made from 18 gauge 304 stainless steel. Fabricated of FDA-approved fungus and bacteria-resistant plastic.
Unit platform is shaped to keep a child restrained from rolling out of the bed. Unit is easily opened and closed by user with one hand in any location and handle cavity is provided on door face for preferred use.
Unit is operable with less than 5lb of force (22.2N) while not requiring any tight grasping, pinching or twisting of the wrist. Bed liner/towel dispenser presents liners or towels for user hygiene and convenience.
Dispenser lid is provided for sanitary protection and ease of loading of wipes or liners. Safety strap is easily adjustable by user for baby size and Sure-Lock latch securely resists opening until released by opposing finger pressure by adult caretaker/parent.
NOTE: While it has been tested for durability with higher loads, this product is intended only for use with children up to 3-1/2 years and 50 lbs.
Built-in sanitary bed liner dispenser that may be easily converted to a multi-fold towel dispenser with no adapters.
Includes one integral heavy-duty bag hook.
Adjustable two-part vinyl child protection safety-strap mounted with concealed fasteners on high walls of cradle.
Rounded contoured pull handle and concealed damped gas spring to assist user in opening and closing unit with one hand
Mounts on standard stud wall dimensions and with proper anchoring may mount on all suitable wall constructions
Five (5) years warranty against defects in material or workmanship.

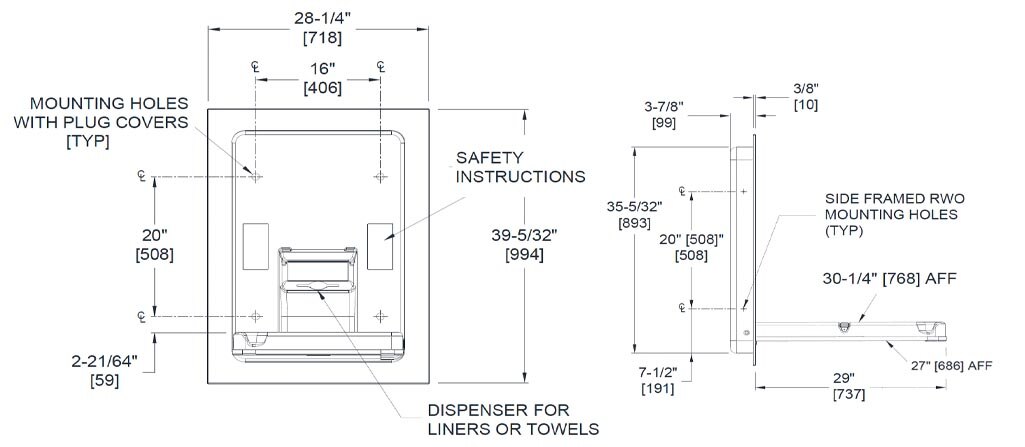

Measurement Diagram:
| Brand: | ASI |
| Manufacturer Model No.: | 10-9017 |
| Type: | Vertical |
| Mount: | Wall / Recessed |
| Cover / Color: | Stainles Steel, Brushed Finish |
| Bed Material: | FDA approved, non-porous HDPE |
| Static Load: | Up to 400 lbs. |
| Live Load: | Up to 50 lbs. including child and parcels |
| Mechanism: | Concealed damped gas spring to assist user in opening and closing unit with one hand |
| Safety Belt: | Non-porous, vinyl coated djustable two-part child protection safety-strap for easy sanitation and one handed operation. |
| Liner Dispenser: | Bed-liner dispenser that may be easily converted to a multi-fold towel dispenser with no adapters. |
| Product Dimensions (Closed): | 39-5/32" Tall x 28-1/4" Wide x 3/8" Deep |
| Product Dimensions (Open): | 39-5/32" Tall x 28-1/4" Wide x 29" Deep |
| Rough-In: | 35-1/2" Tall x 24-1/2" Wide x 4" Deep |
| Shipping Dimensions: | 43" Length x 32" Width x 5" Height |
| Shipping Weight: | 25 lbs. |
| UPC / GTIN: | Not published |
| Country of Manufacture: | USA |
| Warranty: | 5 Yr. Manufacturer's Limited |
Architectural Specifications:
Recess Mounted Stainless Steel Vertical Baby Changing Station shall protrude no more than 3/8" [10] from wall when in retracted position. Unit shall comply with ASTM F2285-04 and EN 12221-1. Unit shall support a static load of 300 lbs (136,1 kg) and be tested in excess of 350 lbs (158,8 kg). Unit shall be fabricated of non-porous plastic (FDA approved HDPE) tested according to ASTM G21 and ASTM G22. Unit shall contain a door facing and wall flange dress trim of satin finished 18 gauge [1,2] type 304 stainless steel. No parts of the operating mechanism shall be accessible when unit is open or closed to provide a tamper-resistant and pinch proof user environment. Unit shall have a damped gas spring to assist user in opening and closing bed tray with the use of one hand. Unit shall be provided with one integral heavy-duty bag hook. Unit shall provide a bed-liner dispenser that may be easily converted to a multi-fold towel dispenser with no adapters. Unit shall provide graphics and instructions in four languages on interior back. Unit shall be provided with an adjustable two-part vinyl coated child protection safetystrap mounted with concealed fasteners on high walls of cradle. Entire unit shall be assembled of completely sealed components to provide easy cleaning and no penetration (more...)
