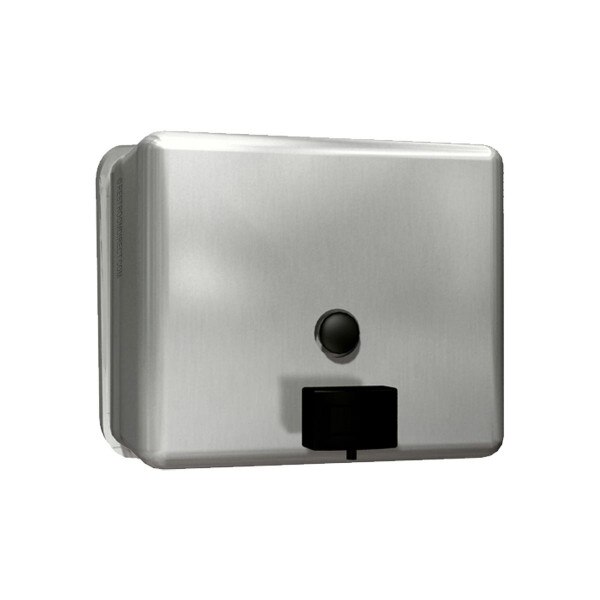

ASI 10-9343 Stainless Steel Push Button Soap Dispenser, Wall/Surface Mount,
 | Please note this dispenser is NOT compatible with Hand Sanitizer. |
All-purpose valve dispenses liquid, lotion and detergent-type soaps, with a capacity of 48 fl. oz. (1.4 L). It has a tamper-resistant refill window with concealed fastening and vandal-resistant hinged filler-top.
Soap Requirements: Proper usage of this dispenser requires, that only soap within the following range for viscosity and pH may be used.
>Viscosity Range (mPa·s or cP): 100 – 2500
>pH Range: 5.5 ~ 8.0
| Mount: | Wall / Surface |
| Operation: | Push Button |
| Cover Material: | Stainless Steel |
| Power: | None |
| Soap Type: | Liquid and lotion soaps, synthetic detergents and antibacterial soaps containing PCMX and or/ Triclosan. |
| Capacity: | 48 oz. |
| Dispense Amount: | Not published |
| Overall Dimensions: | 7-1/4" Wide x 6-1/2" Tall x 3-11/16" Deep |
| Net Weight: | 3.1 lbs. |
| Shipping Dimensions: | 8" Length x 7" Width x 4" Height |
| Shipping Weight: | 3.4 lbs. |
| Warranty: | Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice. |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Comments: | Unit is refilled through hinged door at top requiring special key (supplied) to open. Note, this is not the standard E114 key, but rather 10-L-28 which is a flat metal key. |
Architectural Specifications:
Profile Collection Surface Mounted Soap Dispenser shall have a capacity of 48 fluid oz. (1.4 liter) of liquid or lotion soaps, synthetic detergents and antibacterial soaps containing PCMX and/or Triclosan. Dispenser shall be fabricated of alloy 18-8 stainless steel, Type 304, 20 gauge. All exposed surfaces shall be No 4 satin finish. Valve shall be constructed of a plastic valve body and push button with stainless steel and plastic internal parts. Valve operation shall comply with ADA Accessibility Guidelines by requiring no more than 5 lbsf (22.2 Newtons) pressure to actuate and require no grasping or twisting by operator. A tamper resistant sight gauge shall be provided. Unit shall have a hinged stainless steel refill door on top which is opened with special key provided.
