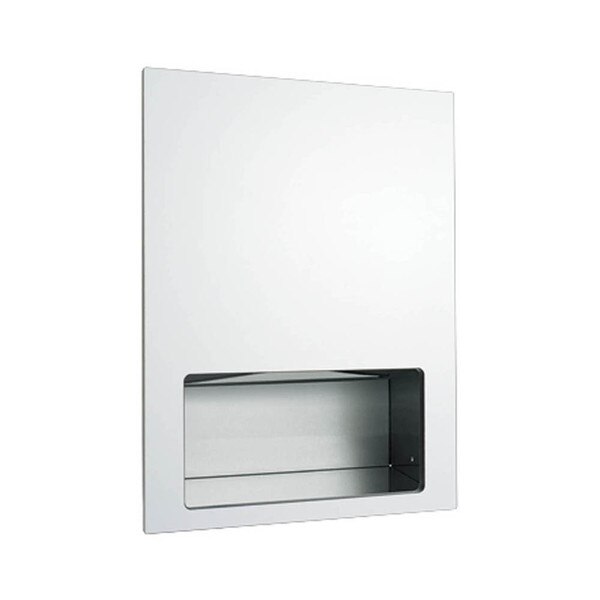

ASI Piatto™ 10-6457-00 Recessed Paper Towel Dispenser, White
 | Completely FLUSH mount. No projection! IMPORTANT: As this product is made to order, the manufacturer does not allow returns or cancellations once production has started. |
- Well-suited for the smaller washroom with less space and traffic
- Dispenses 350 C-fold or 475 multi-fold paper towels
Certifications:

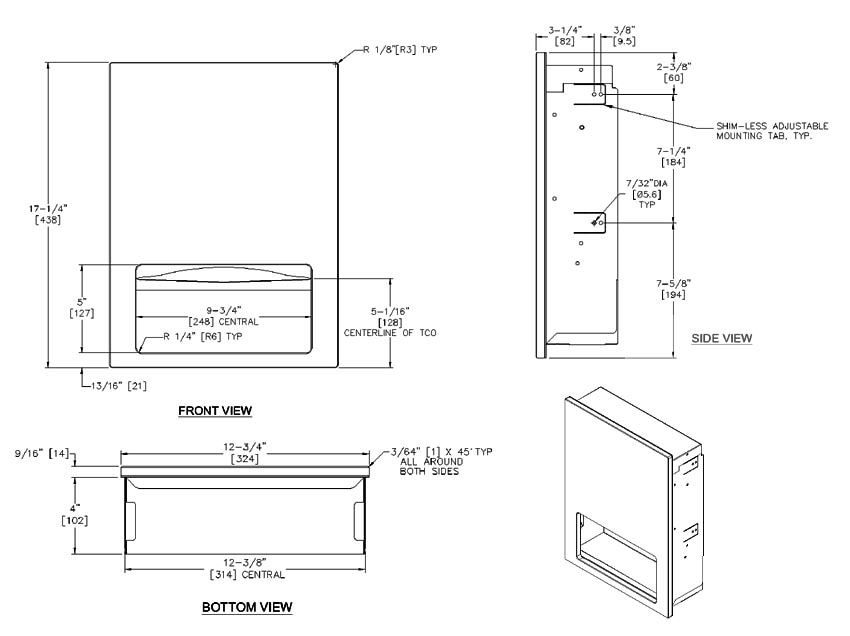

Measurement Diagram:
Alternatives:
Need it in Black? See ASI Piatto® 6457-41 .
Need an integrated waste bin? See the ASI Piatto® 6467-00 2-in-1 .
| Type: | C-Fold / Multi-Fold Paper Towel Dispenser |
| Primary Material: | Phenolic Facia, Stainless Steel Frame |
| Color / Finish: | White |
| Installation Type: | Wall / Recessed |
| Capacity: | 350 C-Fold or 475 Multi-Fold Paper Towels |
| Power: | No power required |
| ADA Compliant: | Yes |
| Overall Dimensions: | 12-3/4" Wide x 17-1/4" Tall x 4-9/16" Deep |
| Rough-In: | 12-13/16" Wide x 17-5/16" Tall x 4-3/4" Deep |
| Shipping Dimensions: | 20-1/4" Length x 15-1/2" Width x 7-1/2" Height |
| Shipping Weight: | 17.2 lbs. |
| Manufacturer Model No.: | 10-6457-00 |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Warranty: | Warranted to be free from defects in material and workmanship for a period of one (1) year from date of invoice. |
| Additional Comments: | No cabinet lock. |
| Manufacturer Model No.: | 6457-00 |
| Made In: | USA |
| Warranty: | 1 Yr. manfuacturer's limited warranty |
Architectural Specifications:
Piatto™ Collection Paper Towel Dispenser shall hold and dispense 475 standard multi-fold or 350 standard C-fold paper towels. Frame and cabinet shall be 20 gage type 304 alloy 18-8 stainless steel and shall have no exposed fastening devices. Towel dispensing slot shall have a fully hemmed-in rolled edge for snag-free dispensing and user safety. Flush face door shall be 1/2" [13] thick black edged Phenolic with matte black or white outer and inner surfaces as chosen by tail code on model number. Door shall be attached to the side of cabinet with two (2) zero-clearance concealed cabinet hinges and shall be held closed with a spring-pin L-latch. Structural assembly of all components shall be of welded construction. OM & IG shall be packed with unit. Installation set-back gage and depth stops shall be provided.
