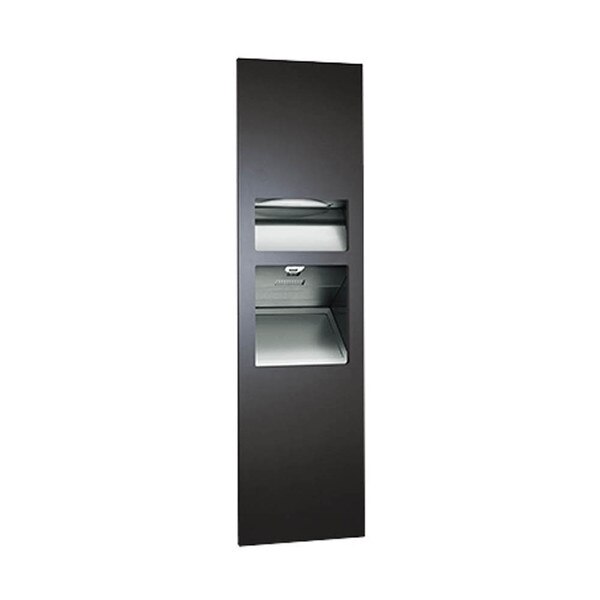

ASI Piatto™ 10-64672-1-41 Dryer, Towel Disp & Waste Bin, Blk, 120V
 | Completely FLUSH mount. No projection! IMPORTANT: As this product is made to order, the manufacturer does not allow returns or cancellations once production has started. |
- Holds and dispenses 500 standard multi-fold or 400 standard C-fold paper towels.
- <15 second automatic hand dryer with a 5-year warranty
- 110-120V
- Waste Receptacle has a waste capacity of 6.8 gal (26 L)
Certifications:

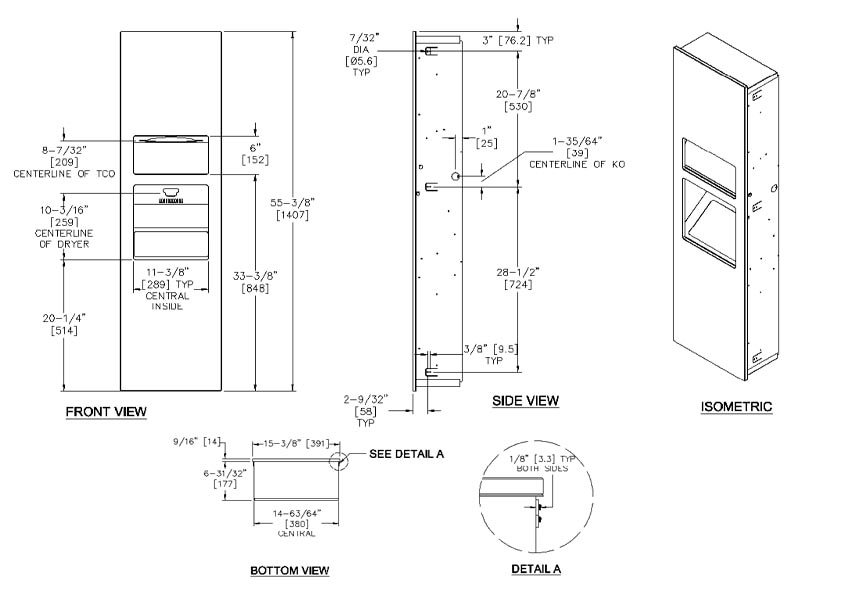

Measurement Diagram:
Alternatives:
Need it in White? See ASI Piatto® 64672-1-00 .
Need the High Voltage (208-240V) version? See the ASI Piatto® 64672-2-41 3-in-1 .
| Type: | Three-in-One (Hand Dryer, Paper Towel Dispenser, Waste Bin) |
| Installation Type: | Wall / Fully Recessed |
| Facia (Door): | Matte Black Phenolic |
| Cabinet Material: | Stainless Steel |
| Dryer Type: | High speed, Automatic (Heated) |
| Capacity: | Paper Towels: 400 C-Fold (500 Multi) Waste: 6.8 Gallons |
| Power: | 110-120V (Standard), 800-1200 Watts |
| ADA Compliant: | Yes |
| Product Dimensions: | 15-3/8" Wide 55-3/8" Tall 7-1/2" Deep |
| Net Weight: | Approx. 88lbs. |
| Shipping Weight: | 92 lbs. |
| Manufacturer Model No.: | 64672-1-41 |
| Made In: | USA |
| Warranty: | Dryer: 5 Yr. manfuacturer's limited warranty Cabinet: 1 Yr. manfuacturer's limited warranty |
Architectural Specifications:
Piatto™ Collection Three-in-One Paper Towel Dispenser with Waste Receptacle and Automatic Electric Hand Dryer shall hold and dispense 500 standard multi-fold or 400 standard C-fold paper towels, and shall have a waste capacity of 6.8 gallons (26 liters). Frame and cabinet shall be 20 gage type 304 alloy 18-8 stainless steel and shall have no exposed fastening devices. Towel dispensing slot shall have a fully hemmed-in rolled edge for snag-free dispensing and user safety. Waste receptacle shall have piano-hinge mounted closed top with spring-hinge closed flap door and hemmed edges for safety. Flush face door shall be 1/2" [13] thick black edged Phenolic with matte black or white outer and inner surfaces as chosen by tail code on model number. Door shall be attached to the side of cabinet with four (4) zero-clearance concealed cabinet hinges and shall be held closed with a spring-pin L-latch. Structural assembly of all components shall be of welded construction. OM & IG shall be packed with unit. Installation set-back gage and depth stops shall be provided.
