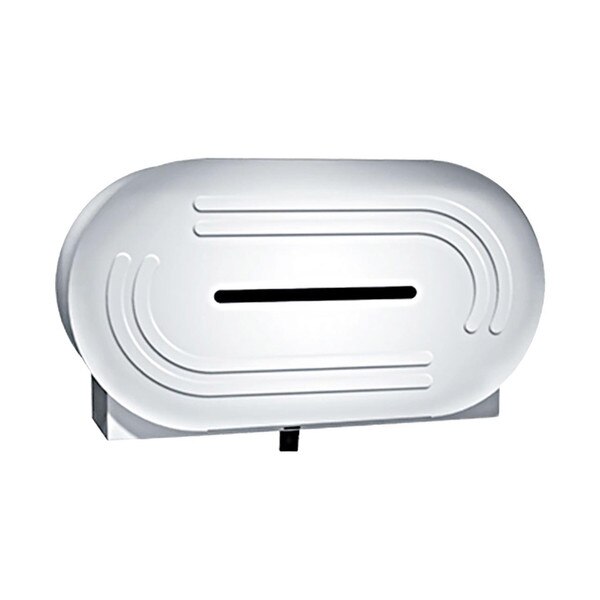

ASI 10-0039 Low Profile 9″ Jumbo Roll Toilet Tissue Dispenser – Surface Mounted
Holds two 9″ (229 mm) diameter rolls of 2-1⁄4″ or 3″ (57 or 76 mm) diameter core. When one roll is depleted, slide panel to expose other roll. Door cabinet and mounting plate fabricated of 18 gauge type 304 stainless steel with a satin finish. Door is hung on heavy-duty stainless steel pivot hinges. Equipped with tumbler lock.

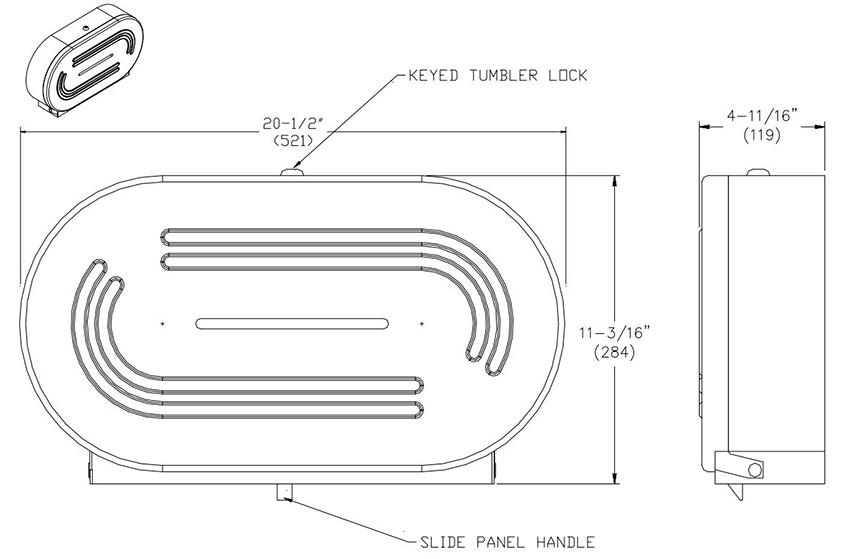

Measurement Diagram:
| Type: | Jumbo Roll - Low Profile |
| Mount: | Wall / Surface |
| Primary Material: | Stainless Steel (Brushed Finish) |
| Capacity: | Two jumbo rolls (Up to 9" Dia. With 2-1/4" or 3" Core) |
| Locks: | Yes, one tumbler |
| Overall Dimensions: | 20-1⁄2″ x 11-3⁄16″ x 4-11⁄16″ (521 x 284 x 119 mm) |
| Warranty: | 1 Year Limited |
Architectural Specifications:
Low Profile Surface Mounted Jumbo-Roll Toilet Tissue Dispenser shall hold two (2) 9" diameter (Ø229) rolls of 3" diameter (Ø76) or 2-1/4" diameter (Ø57) core tissue. Unit cabinet, door and mounting plate shall be 18 gauge type 304 stainless steel alloy 18-8 with a satin finish and shall be protected during shipment with PVC film easily removable after installation. Door shall be of drawn one piece seamless construction with integral rigidizing ribs and shall be provided with tissue level viewing slot. Door shall be hung on heavy-duty stainless steel pivot hinges and shall be held closed by a tumbler lock keyed to other ASI washroom equipment. Dispensing mechanism shall be fabricated of high impact chemical and flame retardant ABS. Unit shall accommodate smaller core size rolls by removing the core adapters. When one roll is depleted, other roll shall be selected by shifting over panel lever at bottom of unit. Unit shall automatically reset to first roll during maintenance access. Structural assembly of all stainless steel components shall be of welded construction. Cabinet shall have no exposed fastening devices or spot-welded seams.
