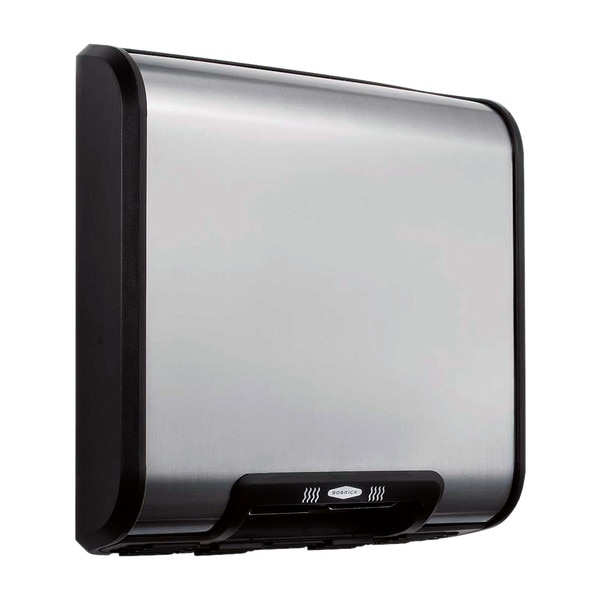

Bobrick TrimDry B-7128 High Speed Narrow Profile, Automatic Hand Dryer, 110-120V, Brushed SS
 | The TrimLine is surface mount ADA compliant! |
This narrow profile hand dryer is both attractive and effective! Dual-flow air ducts (and twin fan blades) allow for a quick dry time with less noise (74db) than comparable hand dryers.
4" projection complies with ADA guidelines without the necessity of recess mounting.
Touch free infra-red sensor helps minimize the spread of germs through contact. Sturdy 22-guage metal cover with ABS side panels.
- 15-18 Second dry time
- Vandal resistant stainless steel cover
- Quiet operation
- 110-120V, 1725 Watts (15A)
- 90 Second safety shut-off
- 10 year Bobrick limited manufacturer's warranty
Certifications:

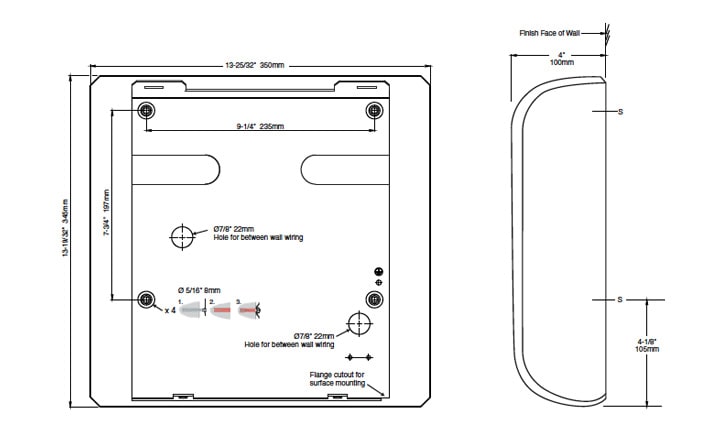

Measurement Diagram:
| Activation: | Automatic (infra-red), 90 second safety shut-off |
| Mount: | Wall Mount / Surface Mount |
| Cover: | 22-gauge galvanized steel with exposed surface type-304 stainless steel with #4 satin-finish vertical grain. |
| Cycle Time: | Not applicable Dryer stops when hands are removed. |
| Nozzle: | Dual air outlets. |
| Power: | 110-120V, 1725 Watts (15A), 50/60Hz |
| Motor: | Universal, 1/7 hp, 8000 rpm, on resilient mounting. Sealed ball bearing at drive-shaft end and self lubricating sleeve bearing at non-drive end. |
| Fan: | Two balanced, double-inlet centrifugal fans |
| Airspeed: | 71 CFM |
| Heating Element: | Two coiled nickel-chrome heating elements mounted in mica frame, thermal shut-off switch. Protected from outside contact. |
| Filter: | None |
| IP Rating: | Not published |
| Product Dimensions: | 13-25/32" Wide x 13-19/32" Tall x 4" Deep |
| Shipping Dimensions: | 15" Length x 15" Width x 5" Height |
| Shipping Weight: | 14 lbs. |
| UPC / GTIN: | 716954001870 |
| Manufacturer Model No.: | B-7128-120 |
| Country of Manufacture: | China |
| Warranty: | 10 Year Bobrick Limited Warranty (3 Years on Motor Brushes) |
| Additional Comments: | China |
