Bobrick AirCraft B-750 Semi-Recessed, ADA Compliant Automatic Hand Dryer, 115V, White Cast Iron
If you are looking for a very durable, ADA compliant (4" projection) hand dryer that is also very quiet, then this is the hand dryer for you.
It features a heavy duty cast-iron cover with a white vitreous enamel finish and the versatile two position, self returning, flip nozzle for drying face and hands that Bobrick is known for.
Activation is automatic (hands free) with an infra-red sensor. The motor is 1/10 hp with automatic thermal-overload switch.
- Chrome flip nozzle for drying face as well as hands.
- 110-120V, 2300 Watts (20A)
- 10 year Bobrick limited manufacturer's warranty
- Less than 4" depth for ADA sight impaired guidelines
- Vandal resistant cast iron iron cover with tamper proof bolts.
- Automatic operation with a 90 second safety shut-off
Certifications:

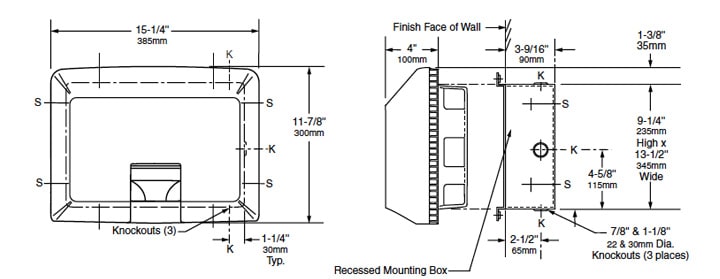

Measurement Diagram:
| Activation: | Automatic (infra-red), 90 second safety shut-off |
| Mount: | Wall Mount / Recessed Mount |
| Cover: | One-piece, minimum 1/8" thick, white cast iron finished in high-gloss, acid-resistant, multicoat vitreous enamel. |
| Cycle Time: | Not applicable Dryer stops when hands are removed. |
| Nozzle: | Two position, self-returning chrome-plated air-outlet nozzle. |
| Power: | 110-120V, 2300 Watts (20A), 50/60Hz |
| Motor: | Universal, 1/10 hp, 6200 rpm, on resilient mounting. Sealed ball bearing at drive-shaft end and self lubricating sleeve bearing at non-drive end. |
| Fan: | Dynamically balanced, single-inlet centrifugal fan. |
| Airspeed: | 150 CFM |
| Heating Element: | Coiled nickel-chrome, thermal shut-off switch. Protected from outside contact. |
| Filter: | None |
| IP Rating: | Not published |
| Product Dimensions: | 15-3/4" Wide x 10-3/8" Tall x 7-1/4" Deep 4" Surface Projection when installed. |
| Shipping Dimensions: | 17-1/2" Lenth x 14-1/4" Width x 8-1/4" Height |
| Shipping Weight: | 26 lbs. |
| UPC / GTIN: | 716954004079 |
| Manufacturer Model No.: | B-750-120 |
| Country of Manufacture: | China |
| Warranty: | 10 Year Bobrick Limited Warranty (3 Years on Motor Brushes) |
| Additional Comments: | China |
