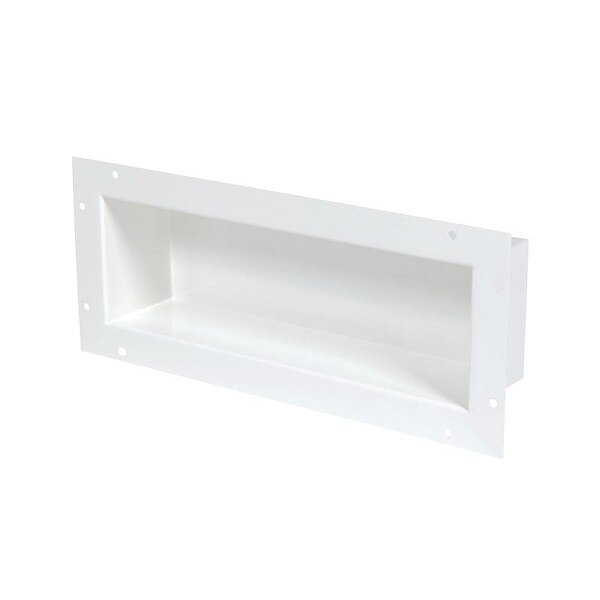

Bobrick B-9883 Ligature Resistant Recessed Shelf
Ligature Resistant (LR) Recessed Shelf is constructed of 16-gauge, type 304 stainless steel with exposed surfaces powder coated in white. Shelf is furnished with 1/4"-20 UNC tamper-resistant screws for use with installer provided wall anchors.
Recessed Shelf is constructed of 16-gauge, type 304 stainless steel with exposed surfaces powder coated in white
Installation requires a rough wall opening approximately 16-1/2" x 5-1/2" and 4-1/4" deep to accommodate recessed shelf
Shelf is furnished with eight (8) 1/4"-20 UNC tamper-resistant hex screws and one (1) 5/32" hex bit for center reject pin
Wall anchors not included
Measurement Diagram:
| Brand: | Bobrick |
| Manufacturer Model No.:: | B-9883 |
| Series: | Ligature Resistant (LR) |
| Rough Wall Opening: | Requires 16-1/2" x 5-1/2" and 4-1/4" deep |
| Primary Material: | Type 304 Stainless Steel |
| Color | Finish: | Powder Coated White |
| Installation Type: | Recessed |
| Warranty: | 1 Year Manufacturer's Limited |
