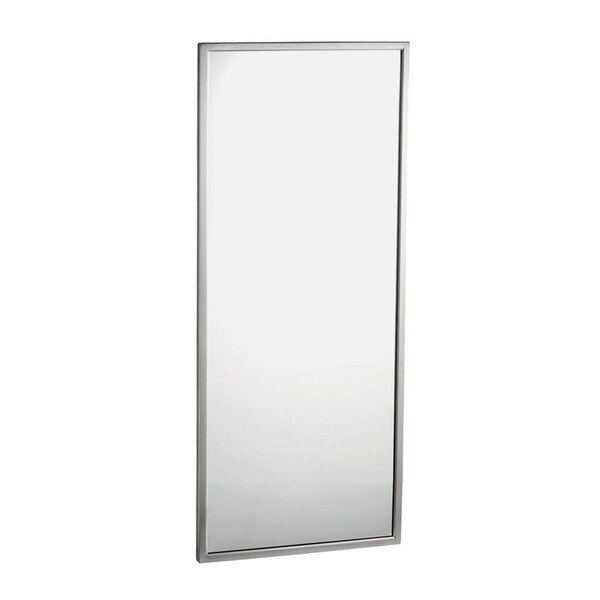

Bobrick B-290-2460 Satin Stainless Steel, Welded-Frame, 24" by 60", Float Glass Mirror
One-piece, roll-formed 3/4″ x 3/4″ (19 x 19mm) angle-frame. Type-304 stainless steel angle with satin finish. Corners heliarc welded, ground and polished smooth. Beveled frame edge at mirror for improved appearance. No. 1 quality, 1/4″ (6mm) glass mirror; warranted against silver spoilage for 15 years. Galvanized steel back. Secured to concealed wall hanger with theft-resistant mounting. Patented.
Measurement Diagram:
| Brand: | Bobrick |
| Manufacturer Model No.: | B-290 2460 |
| Mount: | Flat |
| Frame Material: | Satin Stainless Steel |
| Frame Type: | Angle Frame (Welded Corners) |
| Glazing: | 1/4" Float Glass |
| Overall Dimensions: | 24" Wide x 60" Tall x 3/4" Deep |
| Shipping Dimensions: | 64" Length x 28" Width x 4" Height |
| Shipping Weight: | 46 lbs. |
| UPC / GTIN: | 716954001283 |
| Country of Manufacture: | USA |
| Warranty: | 15 Yr. Against Silver Spoilage |
Architectural Specifications:
Mirror shall have a one-piece, stainless steel angle frame, 3/4" x 3/4" (19 x 19mm) with continuous integral stiffener on all sides and beveled front to hold frame tightly against mirror; corners shall be heliarc welded, ground, and polished smooth; all exposed surfaces shall have satin finish. Reflective surfaces shall be guaranteed for 15 years against silver spoilage. All edges shall be protected by plastic filler strips and the back shall be protected by full-size, shock-absorbing, water-resistant, nonabrasive, 3/16" (5mm) thick polyethylene padding. Galvanized steel back shall have integral horizontal hanging brackets located at top and bottom for mounting on concealed wall hanger and to prevent the mirror from pulling away from the wall.
