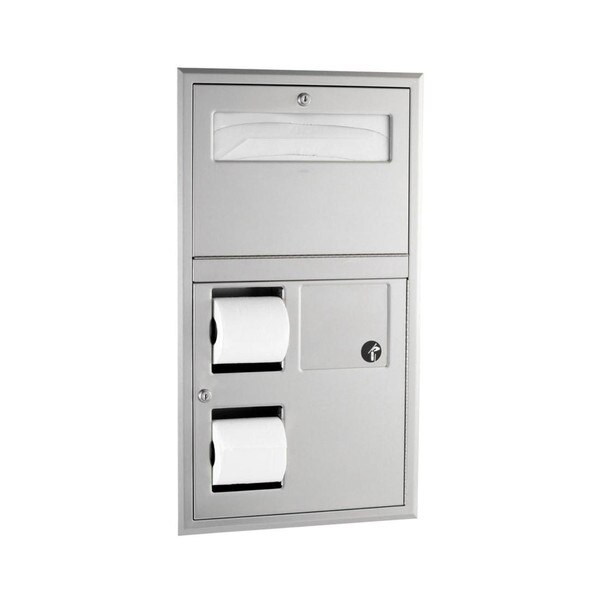

Bobrick B-35745 ClassicSeries® Recessed, Stainless Steel, Toilet Seat Cover Dispenser, Toilet Paper Holder & Sanitary Napkin Disposal, Rev
Type-304 stainless steel with all-welded construction; exposed surfaces shall have satin finish. Mounts centered through toilet partition flush against partition of Accessible Design compartment to allow clearance for grab bar. Unit mounts on right side of toilet (when seated) with tissue dispenser on left side. Door unlocks with key provided and swings open for filling. Holds 500 toilet seat covers and two standard core tissue rolls for each compartment. Theft-resistant spindles. Rough Partition Opening: 16″ W x 29 - 1/4″ H (405 x 745mm).

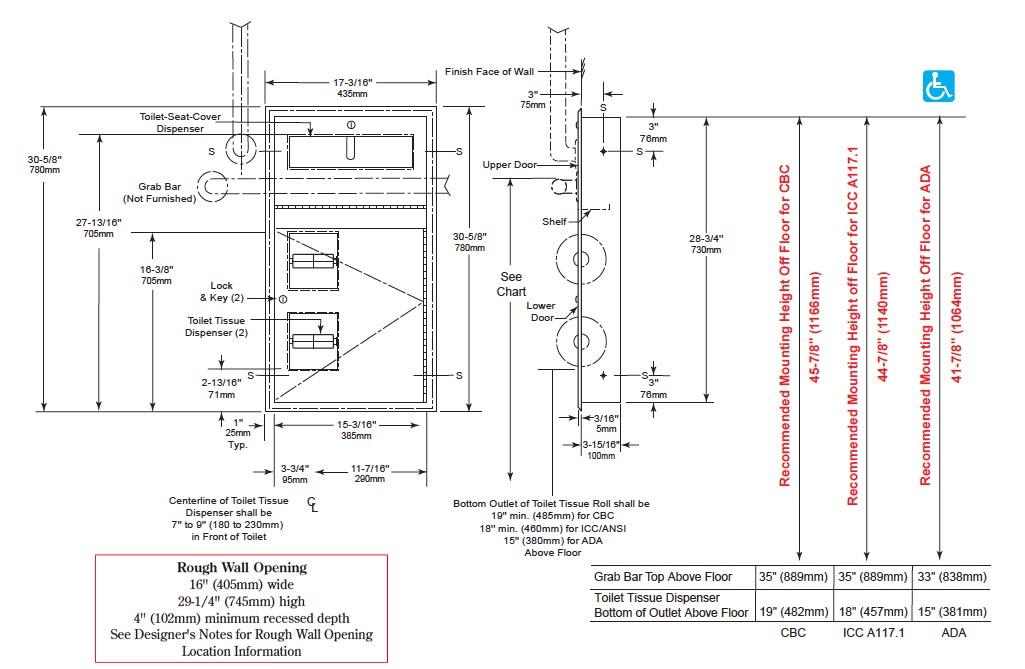

Measurement Diagram:
| Primary Material: | Stainless Steel |
| Color/Finish: | Satin |
| Installation Type: | Recessed |
| Capacity: | 2 Standard Toilet Paper Rolls (4-1/4" W x 4-1/2" Dia.) 500 Toilet Seat Covers 0.8 Gallon Capacity |
| Locks ?: | Tumbler Lock(s), use Bobkric key: 330-43 |
| Rough-In: | 16" Wide x 29 - 1/4" Tall x Minimum of 4" Deep |
| Overall Dimensions: | 17 - 3/16" Wide x 30 - 5/8" Tall x 4 - 1/8" Deep |
| Net Weight: | 19.86 lbs |
| Shipping Dimensions: | 34.1" Length x 19.9" Width x 6.3" Height |
| Shipping Weight: | 19.86 lbs |
| Manufacturer Model No.: | B-35745 |
| UPC / GTIN: | 716954002556 |
| Country of Manufacture: | United States |
| Warranty: | 1 Yr. Manufacturer's Limited |
Architectural Specifications:
Recessed toilet seat-cover dispenser, sanitary napkin disposal, and toilet tissue dispenser shall be type-304 stainless steel with all-welded construction; exposed surfaces shall have satin finish. Toilet tissue dispensers shall be ABS plastic. Flange shall be drawn and beveled, one-piece, seamless construction. Unit shall mount flush against side wall in accessible toilet compartment to allow clearance for grab bar across front of unit and installation of 18" vertical grab bar for (ICC A117.1-2009). Doors shall be one-piece, seamless construction; secured to cabinet with a full-length stainless steel piano-hinge; and equipped with a tumbler lock keyed like other Bobrick washroom accessories. Toilet seat-cover dispenser holds 500 paper covers. Self-closing disposal panel shall be secured to door with a spring-loaded, full-length stainless steel piano-hinge, has hemmed edges and equipped with an international graphic symbol identifying napkin disposal. Sanitary napkin disposal shall be furnished with a removable, leak-proof, molded polyethylene receptacle with a capacity of 0.8-gal. (3.0-L). Unit shall be equipped with two theft-resistant, heavy-duty, one-piece molded ABS toilet tissue spindles that hold standard-core rolls up to 5‑1/4'' (135mm) diameter (1800 sheets). Spindles shall be removable from cabinet only when door is open.
