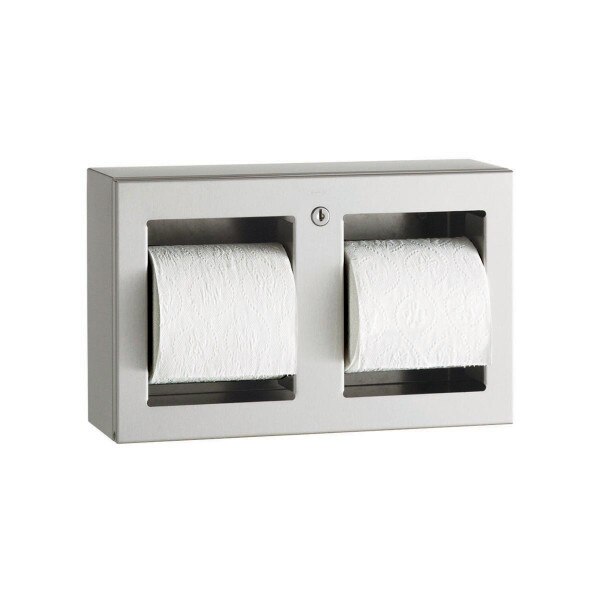

Bobrick B-3588 Surface-Mounted Multi-Roll Toilet Tissue Dispenser, Stainless Steel, Satin Finish, Side by Side
Stainless steel all-welded construction with architectural satin finish. Flush lock. Unit is theft resistant and equipped with a tumbler lock keyed like other Bobrick washroom accessories.
Unit Size: 13-11/16″ W x 8-1/2″ H x 4-5/8″ D (345 x 215 x 115mm).
- Dispenser holds two standard-core toilet tissue rolls up to 5-1/8″ (130mm) diameter (1500 sheets).
- Skirt is removable in the field for optional recessed mounting.
Available replacement parts include: Spindle (3588-33), Skirt Kit (3588-53), Door Replacement Kit (3588-173) and Lockset w/Key (288-42)
Measurement Diagram:
Alternatives:
For the matte black version, see Bobrick B-3588.MBLK
| Brand: | TrimLineSeries |
| Manufacturer Model No.: | B-3588 |
| Mount: | Wall / Surface |
| Primary Material: | 18-8, Type-304, heavy-gauge stainless steel, architectural satin finish |
| Color / Finish: | Architectural satin |
| Type: | Side by Side |
| Capacity: | 2 Standard core toilet tissue rolls up to 5-1/8" diameter |
| Locks: | Yes |
| Overall Dimensions: | 13-11/16" Wide x 8-1/2" Tall x 4-5/8" Deep |
| Rough-In: | Not applicable |
| Shipping Dimensions: | 13.1" Length x 8.5" Width x 4.6" Height |
| Shipping Weight: | 7.2 lbs. |
| UPC / GTIN: | 716954014290 |
| Country of Manufacture: | USA |
| Warranty: | 1 Yr. Manufacturer's |
| Additional Comments: | May be used with partitions, plaster, or drywall (See spec sheet for details). Replacement spindle: BOP-3588-33. Replacement Lock & Key: BOP-288-42 |
Architectural Specifications:
Surface-mounted multi-roll toilet tissue dispenser shall be Type-304 stainless steel with all-welded construction; exposed surfaces shall have satin finish. Door shall be Type-304, 20-gauge (0.9mm) secured to cabinet with two rivets; and equipped with a tumbler lock keyed like other Bobrick washroom accessories. Tumbler lock flush with the door - no protrusion. Spindle shall be Type-304, 18-gauge (1.2mm), 1" diameter (25mm) stainless steel. Theft resistant, removable with key provided.
