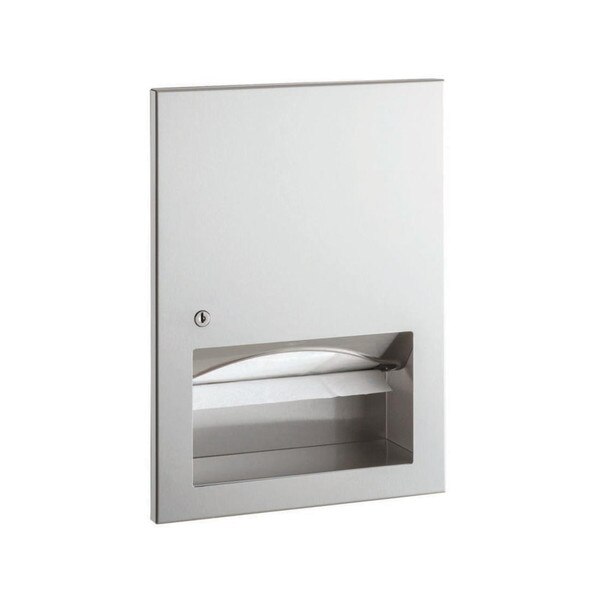

Bobrick B-359033 TrimLineSeries™ Recessed, Satin, Stainless Steel Paper Towel Dispenser with Tumbler Lock
Satin-finish stainless steel. Built in TowelMate®. Tumbler lock flush with the door – no protrusion. Unit equipped with one tumbler lock keyed like other Bobrick washroom accessories. Dispenses 300 C-fold or 400 multi-fold towels. Rough Wall Opening: 292 x 403 x 95 mm (11 - 1/2″ W x 15 - 7/8″ H x 3 - 3/4″ min. depth).
Dispenses C-fold or multifold paper towels without adjustment or use of adapters.
18-8, type-304, 22-gauge (0.8mm) stainless steel.
Door-swing limiter prevents damage to washroom accessories and walls.
Tumbler lock keyed like other Bobrick washroom accessories
Includes TowelMate® Towel Rod Assembly
Available replacement parts include: Skirt Kit (359039-53) and Door Replacement Kit (359039-173)

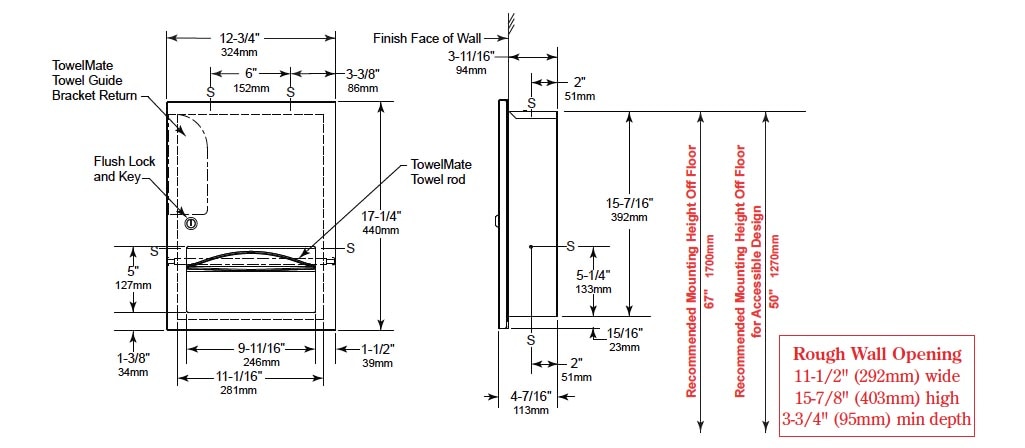

Measurement Diagram:
| Type: | C-Fold / Multi-Fold Paper Towel Dispenser |
| Primary Material: | Stainless Steel |
| Color / Finish: | Satin (Brushed) |
| Installation Type: | Wall / Recessed |
| Capacity: | 300 C-Fold or 400 Multi-Fold Paper Towels |
| Power: | No power required |
| ADA Compliant: | Yes |
| Overall Dimensions: | 12 - 3/4" Wide x 17 - 1/4" Tall x 4 - 7/16" Deep |
| Rough-In: | 11 - 1/2" Wide x 15 - 7/8" Tall x Minimum of 3 - 3/4" Deep |
| Shipping Dimensions: | 17.3" Length x 12.8" Width x 4.5" Height |
| Shipping Weight: | 7.5 lbs |
| Manufacturer Model No.: | B-359033 |
| UPC / GTIN: | 716954016874 |
| Country of Manufacture: | USA |
| Warranty: | 1 Yr. Manufacturer's Limited |
| Additional Comments: | Tumbler lock uses Bobrick key: 330-43. |
Architectural Specifications:
Recessed paper towel dispenser shall be Type-304 stainless steel with all-welded construction; exposed surfaces shall have satin finish. Unit equipped with TowelMate consisting of a 90° return towel guide angle inside cabinet to prevent paper towels from falling forward out when door is opened for servicing and a Nylon Rod across the center of the towel tray to dispense paper towels one at a time. Door shall be Type-304, 18 gauge (1.2mm) secured to cabinet with a concealed, full-length stainless steel piano-hinge; and equipped with a stainless steel cable door-swing limiter and a tumbler lock keyed like other Bobrick washroom accessories. Tumbler lock flush with the door - no protrusion. Paper towel dispenser shall be 18-8, Type-304, 22-gauge (0.8mm) stainless steel. Capacity: 300 C-fold or 400 multifold paper towels.
