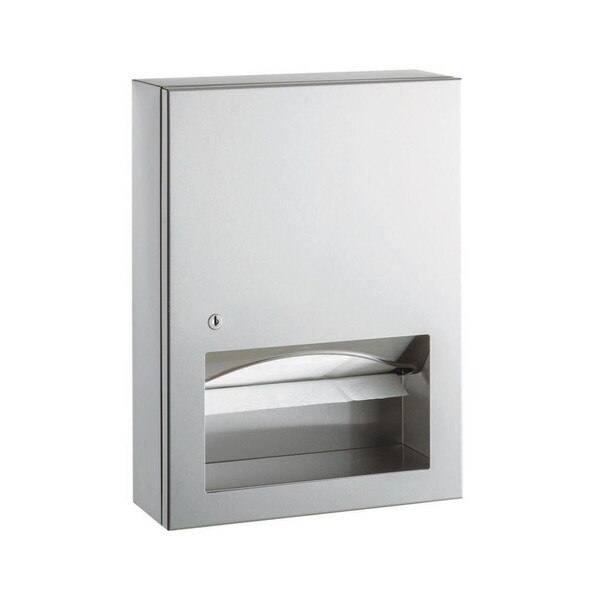

Bobrick B-359039 TrimLineSeries| Surface-Mounted Paper Towel Dispenser, Stainless Steel, Satin Finish
Satin-finish stainless steel construction. Built in TowelMate®. Flush lock. Unit equipped with one tumbler lock keyed like other Bobrick washroom accessories. Dispenses 300 C-fold or 400 multifold towels. Skirt is removable in the field for optional recessed mounting.
Dispenses C-fold or multifold paper towels without adjustment or use of adapters.
18-8, type-304, 22-gauge (0.8mm) stainless steel.
Door-swing limiter prevents damage to washroom accessories and walls.
Tumbler lock keyed like other Bobrick washroom accessories
Includes TowelMate® Towel Rod Assembly
Available replacement parts include: Skirt Kit (359039-53) and Door Replacement Kit (359039-173)

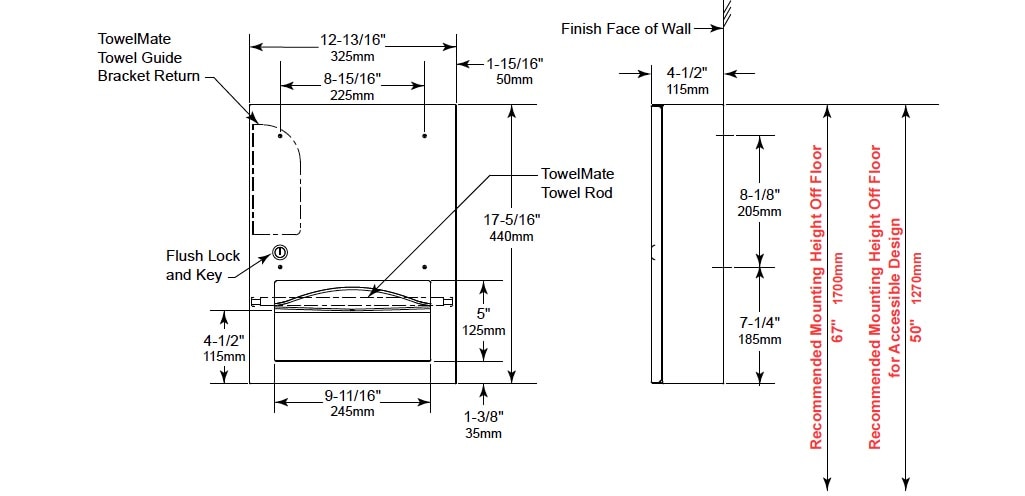

Measurement Diagram:
Alternatives:
For the brushed stainless steel version, see Bobrick B-359039.MBLK
| Type: | C-Fold / Multi-Fold Paper Towel Dispenser |
| Primary Material: | Stainless Steel |
| Color / Finish: | Satin (Brushed) |
| Installation Type: | Wall / Surface |
| Capacity: | 300 C-Fold or 400 Multi-Fold Paper Towels |
| Power: | No power required |
| ADA Compliant: | No (Projects 4-1/2" out from wall) |
| Overall Dimensions: | 12 - 13/16" Wide x 17 - 5/16" Tall x 4 - 1/2" Deep |
| Rough-In: | Not Applicable |
| Shipping Dimensions: | 17.3" Length x 12.8" Width x 3.8" Height |
| Shipping Weight: | 11 lbs |
| Manufacturer Model No.: | B-359039 |
| UPC / GTIN: | 716954014283 |
| Country of Manufacture: | Not Published |
| Warranty: | 1 Yr. Manufacturer's Limited |
| Additional Comments: | Tumbler lock uses Bobrick key: 330-43. |
Architectural Specifications:
Surface-mounted paper towel dispenser shall be Type-304 stainless steel with all-welded construction; exposed surfaces shall have satin finish. Unit equipped with TowelMate consisting of a 90° return towel guide angle inside cabinet to prevent paper towels from falling forward out when door is opened for servicing and a Nylon Rod across the center of the towel tray to dispense paper towels one at a time. Door shall be Type-304, 18 gauge (1.2mm) secured to cabinet with a concealed, full-length stainless steel pianohinge; and equipped with a stainless steel cable door-swing limiter and a tumbler lock keyed like other Bobrick washroom accessories. Tumbler locks flush with the door - no protrusion. Paper towel dispenser shall be 18-8, Type-304, 22-gauge (0.8mm) stainless steel. Capacity: 300 C-fold or 400 multifold paper towels.
