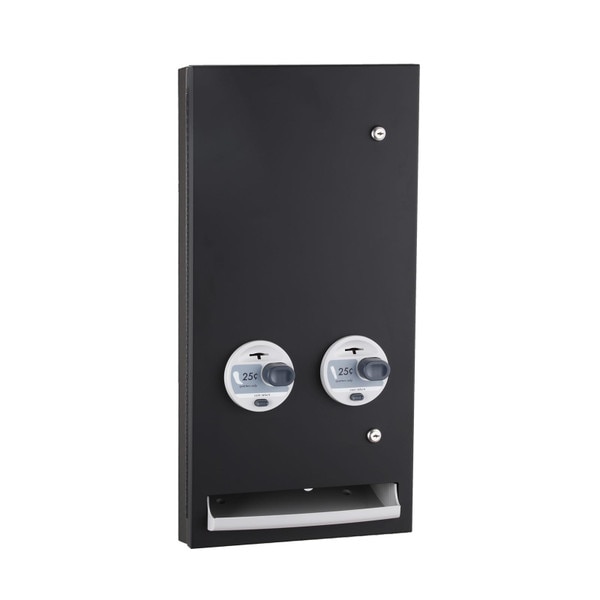

Bobrick B-370634.MBLK-25 TrimLineSeries| Semi-Recessed, Push-Button Sanitary Napkin/Tampon Vendor, 25c Operation, Matte Black (20N/30T)
Recessed feminine hygiene product dispenser. Type 304 matte black powder coated finish stainless steel on exposed surfaces. Holds 30 tampons, 20 napkins. Accepts one quarter (U.S. or Canadian). 13-7/8″ W x 28″ H. Flat door design with 90° return to conceal flange. Push-Button Operation, Less Than 5 Lb of Force, No Grasping, Pinching or Twisting of the Wrist.
Push-button coin return cancels Product selection. Returned coins or wrong coins (1₵, 5₵,10₵) by-pass mechanism and drop into Product tray.
Easy access Product tray. Single-coin slots are key to jam-resistant operation. Easy Product loading, no weights.
Empty Product indicator automatically blocks coin slot.
Two tumbler door locks keyed like other Bobrick accessories.
Separately-keyed coin box lock for management access.
Easy 25₵ to 50₵, Token or Free field coin conversion.
Order part No. 3706-250 for a free vend conversion kit to satisfy free menstrual product requirements in schools.
Order part No. 3706-166 for a token vend conversion kit.
Measurement Diagram:
| Brand: | TrimLineSeries |
| Manufacturer Model No.: | B-370634.MBLK-25 |
| Mount: | Wall / Semi-Recessed |
| Primary Material: | 18-8, Type-304, 18-gauge (1.2mm) stainless steel, matte black powder coated finish |
| Operation: | 25 cents, push button |
| Capacity: | 20 Sanitary napkins | 30 Tampons |
| Locks: | Yes, 3 (2 Outer door locks are keyed differently than coin box lock.) |
| Overall Dimensions: | 14" Wide x 28" Tall x 7-15/16" Deep (Projects 4" out from wall.) |
| Rough-In: | 12-1/2" Wide x 26-3/8" Tall x 3-7/8" Deep |
| Shipping Dimensions: | 33.5" Length x 18.25" Width x 12" Height |
| Shipping Weight: | 34.3 lbs. |
| UPC / GTIN: | Not published |
| Country of Manufacture: | USA |
| Warranty: | 1 Yr. Manufacturer's |
| Additional Comments: | Coin slots are automatically blocked with a red indicator when supply is depleted. Coin Return Push-Button cancels the selection and returns coin into product tray. Wrong coins (penny, nickel, dime) by-pass mechanisms and drop into product tray. |
Architectural Specifications:
Semi-Recessed napkin/tampon vendor shall combine two dispensing mechanisms in one cabinet to provide sanitary napkins and tampons at user’s option. Mechanical operations; no batteries or electricity required. Dispensing mechanisms shall be pre-set at factory for 25¢ operation, but shall be convertible in the field to allow the change of coin denomination without removing unit from wall. Door shall be furnished with graphics indicating specified coin denomination. Unit shall be Type-304 stainless steel with all-welded construction; exposed surfaces shall have matte black finish. Stainless steel skirt shall have satin finish and have 90° return on all edges. Door shall be 18 gauge (1.2mm); have flat door design with 90° return edges; conceals flange; be secured to cabinet with a concealed, full-length stainless steel piano hinge; and equipped with two tumbler locks keyed like other Bobrick washroom accessories. Vendor product selection and coin return pushbutton-operation shall be certified ADA-ABA, ICC/ANSI A117.1 complaint by third party (certification available on request) for operation with one hand with less than 5 pounds of force (22.2 N) without tight grasping, pinching or twisting of the wrist. Push-Button coin return shall cancel selection and return coin into product tray. Wrong coins (penny, nickel, dime) shall by-pass mechanisms and drop into product tray. Product tray shall be impact-resistant PC-ABS plastic and provide easy access to dispensed product. Coin Box shall be equipped with a tumbler lock that is keyed differently than door locks. Unit shall not carry brand-name advertising
