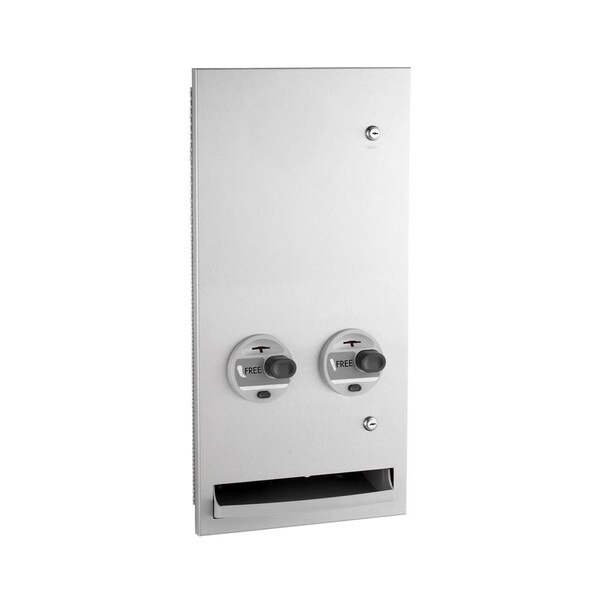

Bobrick B-37063C TrimLineSeries™ Recessed, Satin Stainless Steel, Free Operation, Push-Button, Sanitary Napkin/Tampon Vendor (20N/30T)
Flat door design with 90° return to conceal flange. Push-button operation, less than 5 lbs of force. No grasping, pinching or twisting of the wrist. Easy access Product tray. Easy product loading, no weights. Holds 30 tampons, 20 napkins. Two tumbler door locks keyed like other Bobrick accessories. Easy Free to 25¢, 50¢ or Token field coin conversion. Type-304 satin-finish stainless steel* on exposed surfaces. Patented.
Measurement Diagram:
| Primary Material: | Stainless Steel |
| Color/Finish: | Satin |
| Installation Type: | Recessed |
| Capacity: | 20 Sanitary Napkins or 30 Tampons |
| Operation: | Push Button, Free Operation |
| Power: | Mechanical (No Power Required) |
| Rough-In: | 12 - 1/2" Wide x 26 - 3/8" Tall x Minimum of 5 - 9/16" Deep |
| Overall Dimensions: | 13 - 7/8" Wide x 28" Tall x 7 - 15/16" Deep |
| Net Weight: | 30.6 lbs |
| Shipping Dimensions: | 31" Length x 18" Width x 12" Height |
| Shipping Weight: | 30.6 lbs |
| Manufacturer Model No.: | B-37063C |
| UPC / GTIN: | Not Published |
| Country of Manufacture: | United States |
| Warranty: | 1 Yr. Manufacturer's Limited |
| Additional Comments: | Uses Bobrick Key 330-43 (Door), Bobrick Key: 352-112 (Coinbox) |
Architectural Specifications:
Recessed napkin/tampon vendor shall combine two dispensing mechanisms in one cabinet to provide sanitary napkins and tampons at user’s option. Mechanical operations; no batteries or electricity required. Dispensing mechanisms shall be pre-set at factory for _____________ (Free, 25¢ or Token) operation, but shall be convertible in the field to allow the change of coin denomination removing unit from wall. Door shall be furnished with graphics indicating specified coin denomination. Unit shall be Type-304 stainless steel with all-welded construction; exposed surfaces shall have #4 satin finish. Door shall be 18 gauge (1.2mm); have flat door design with 90° return edges; conceals flange; be secured to cabinet with a concealed, full-length stainless steel piano hinge; and equipped with two tumbler locks keyed like other Bobrick washroom accessories. Vendor product selection and coin return pushbutton-operation shall be certified ADA-ABA, ICC/ANSI A117.1 complaint by third party (certification available on request) for operation with one hand with less than 5 pounds of force (22.2 N) without tight grasping, pinching or twisting of the wrist. Push-Button coin return shall cancel selection and return coin into product tray. Wrong coins (penny, nickel, dime) shall by-pass mechanisms and drop into product tray. Product tray shall be impact-resistant PC-ABS plastic and provide easy access to dispensed product. Coin Box shall be equipped with a tumbler lock that is keyed differently than door locks. Unit shall not carry brand-name advertising.
Product Group Variations:
