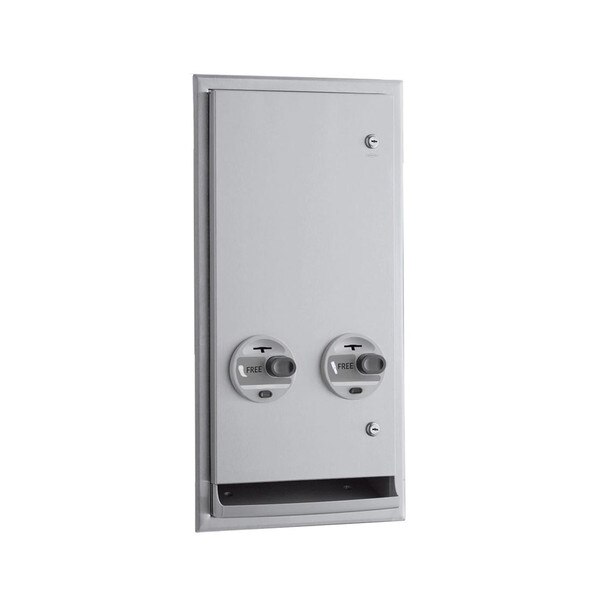

Bobrick B-3706C ClassicSeries, Recessed (or Semi-Recessed), Satin Stainless Steel, Free Operation, Push-Button, Sanitary Napkin/Tampon Vendor (20N/30T)
Measurement Diagram:
| Primary Material: | Stainless Steel |
| Color/Finish: | Satin |
| Installation Type: | Recessed or Semi-Recessed |
| Capacity: | 20 Sanitary Napkins or 30 Tampons |
| Operation: | Push Button, Free Operation |
| Power: | Mechanical (No Power Required) |
| Rough-In: | 12 - 1/2" Wide x 26 - 3/8" Tall x Minimum of 4" to 5 - 1/2" Deep |
| Overall Dimensions: | 13 - 7/8" Wide x 27 - 7/8" Tall x 7 - 15/16" Deep |
| Net Weight: | 27.8 lbs |
| Shipping Dimensions: | 31" Length x 18.3" Width x 12" Height |
| Shipping Weight: | 27.8 lbs |
| Manufacturer Model No.: | B-3706C |
| UPC / GTIN: | 716954010216 |
| Country of Manufacture: | United States |
| Warranty: | 1 Yr. Manufacturer's Limited |
| Additional Comments: | Uses Bobrick Key 330-43 (Door), Bobrick Key: 352-112 (Coinbox) |
Architectural Specifications:
Recessed or Semi-Recessed napkin/tampon vendor shall combine two dispensing mechanisms in one cabinet to provide sanitary napkins and tampons at user’s option. Mechanical operations; no batteries or electricity required. Dispensing mechanisms shall be pre-set at factory for _______________ (insert one: Free, 25¢ or Token) operation, but shall be convertible in the field to allow the change of coin denomination without removing unit from wall. Door shall be furnished with graphics indicating specified coin denomination. Unit shall be Type-304 stainless steel with all-welded construction; exposed surfaces shall have #4 satin finish. Adjustable escutcheon type flange shall permit semi- or fully recessed installation. Door shall be 18 gauge (1.2mm); have three 90° return edges and bottom edge hemmed; be secured to cabinet with a concealed, full-length stainless steel piano hinge; and equipped with two tumbler locks keyed like other Bobrick washroom accessories. Vendor product selection and coin return pushbutton-operation shall be certified ADA-ABA, ICC/ANSI A117.1 complaint by third party (certification available on request) for operation with one hand with less than 5 pounds of force (22.2 N) without tight grasping, pinching or twisting of the wrist. Push-Button coin return shall cancel selection and return coin into product tray. Wrong coins (penny, nickel, dime) shall by-pass mechanisms and drop into product tray. Product tray shall be impact-resistant PC-ABS plastic and provide easy access to dispensed product. Coin Box shall be equipped with a tumbler lock that is keyed differently than door locks. Unit shall not carry brand-name advertising.
