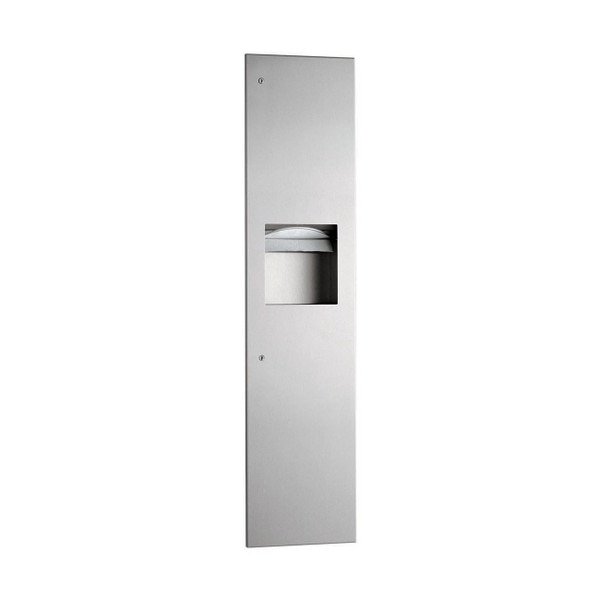

Bobrick B-3803 TrimLineSeries™ Recessed, Stainless Steel Paper Towel Dispenser with Built-In TowelMate® & 6.3-Gallon Waste Receptacle
Satin-finish stainless steel. Built in TowelMate®. Flush locks. Door has 90° return, conceals flange. Dispenses 600 C-fold, 800 multifold, or 1100 single-fold towels. Removable, leak-proof, 6.3-gallons (24-L) waste container. Rough wall opening: 11 - 1/2″ W x 53 - 5/8″ H x 5 - 3/4″ minimum depth (290 x 1360 x 145mm).
Paper towel dispenser is adjustable to dispense C-fold, multifold, or singlefold paper towels without use of additional adapters or towel trays.
To service waste receptacle, unlock door with key provided and remove waste container.
Cable door-swing limiter prevents damage to washroom accessories and walls.
A Nylon Rod across the center of the towel tray to dispense paper towels one at a time.
Tumbler locks flush with the door - no protrusion.
This model is equipped with TowelMate consisting of a 90° return towel guide angle inside cabinet to prevent paper towels from falling forward out when door is opened for servicing and a Nylon Rod across the center of the towel tray to dispense paper towels one at a time.

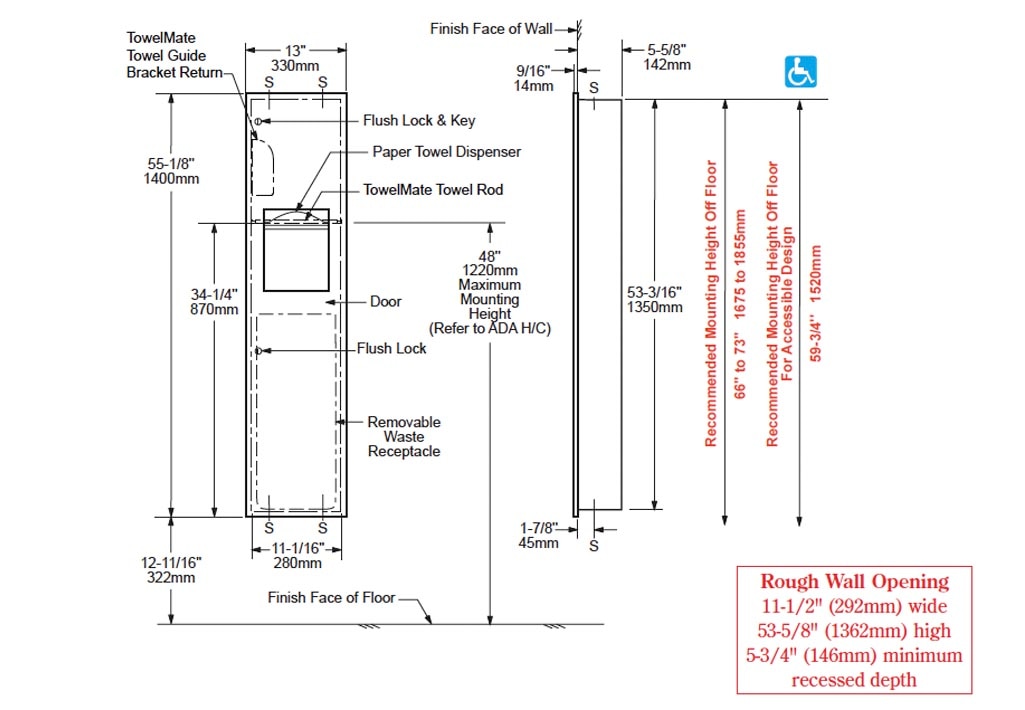

Measurement Diagram:
| Type: | C-Fold / Multi-Fold Paper Towel Dispenser with Integrated Waiste Container |
| Primary Material: | Stainless Steel |
| Color / Finish: | Satin (Brushed) |
| Installation Type: | Wall / Recessed |
| Capacity: | 600 C-Fold or 800 Multi-Fold Paper Towels |
| Waste Bin Capacity: | 6.3 Gal |
| Power: | No power required |
| ADA Compliant: | Yes |
| Overall Dimensions: | 13" Wide x 55 - 1/8" Tall x 6 - 3/16" Deep |
| Rough-In: | 11 - 1/2" Wide x 53 - 5/8" Tall x Minimum of 5 - 3/4" Deep |
| Shipping Dimensions: | 58.3" Length x 15.5" Width x 8" Height |
| Shipping Weight: | 25 lbs |
| Manufacturer Model No.: | B-3803 |
| UPC / GTIN: | 716954001993 |
| Country of Manufacture: | USA |
| Warranty: | 1 Yr. Manufacturer's Limited |
| Additional Comments: | Tumbler locks use Bobrick key: 330-43. |
Architectural Specifications:
Recessed paper towel dispenser and waste receptacle shall be type-304 stainless steel with all-welded construction; exposed surfaces shall have satin finish. Unit equipped with TowelMate consisting of a 90° return towel guide angle inside cabinet to prevent paper towels from falling forward out when door is opened for servicing and a Nylon Rod across the center of the towel tray to dispense paper towels one at a time. Door shall be 18 gauge (1.2mm); have 9/16'' (14mm) 90° return edges; be secured to cabinet with a concealed, full-length stainless steel piano-hinge; and equipped with a stainless steel cable door-swing limiter and two tumbler locks keyed like other Bobrick washroom accessories. Tumbler locks flush with the door - no protrusion. Paper towel dispenser shall be capable of dispensing 600 C-fold, 800 multifold, or 1100 singlefold paper towels. Waste receptacle shall be furnished with a removable, leak-proof, rigid molded plastic waste-container with a capacity of 6.3-gal. (24.0-L).
