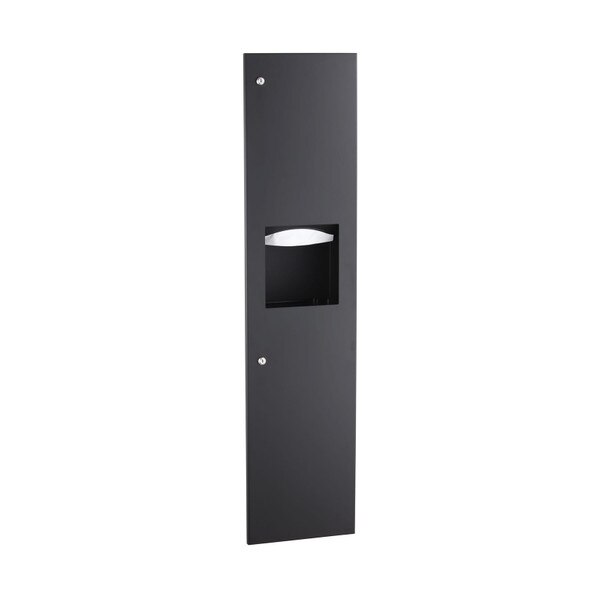

Bobrick B-38034.MBLK Recessed Paper Towel Dispenser/Waste Receptacle, Matte Black, 600C/800M Capacity, 3.8 Gal.
Matte black powder coated finish stainless steel. Built in TowelMate®. Flush locks. Door has 90° return, conceals flange. Dispenses up to 600 C-fold or 800 multifold towels. Removable, leak-proof, 3.8-gal (14.4-L) waste container.
Rough Wall Opening: 11-1/2″ W, 53-5/8″ H, 3 -3/4″ min. depth (290 x 1360 x 95mm).
- Paper Towel Dispenser Capacity: 600 C-fold or 800 multifold paper towels
- Waste Container Capacity: 3.8-gal. (14.4-L).
- Paper towel dispenser is adjustable to dispense C-fold, multifold, or singlefold paper towels without use of additional adapters or towel trays

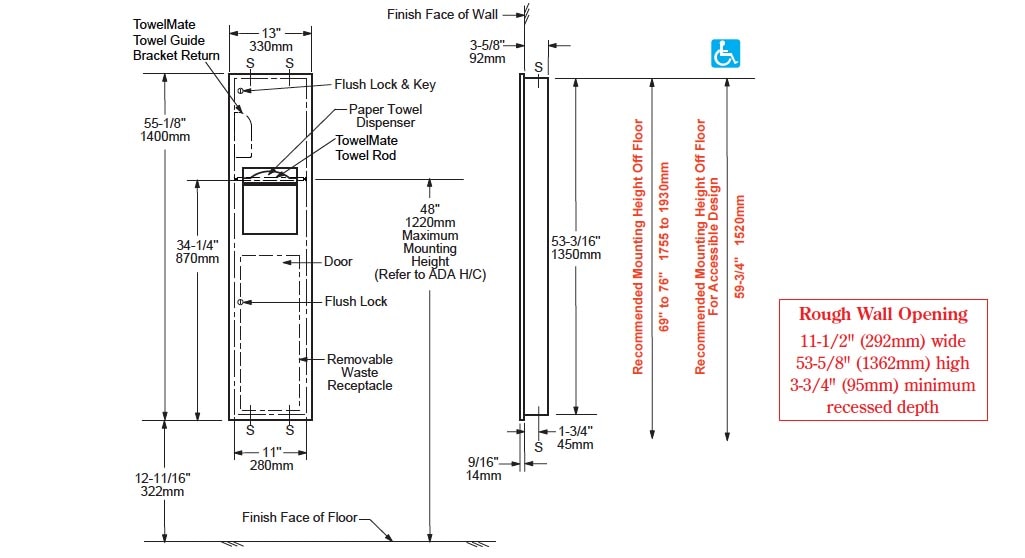

Measurement Diagram:
Alternatives:
For the brushed stainless steel version, see Bobrick B-38034
| Type: | C-Fold / Multi-Fold Paper Towel Dispenser with Integrated Waiste Container |
| Primary Material: | Stainless Steel |
| Color / Finish: | Satin (Brushed) |
| Installation Type: | Wall / Recessed |
| Capacity: | 600 C-Fold or 800 Multi-Fold Paper Towels |
| Waste Bin Capacity: | 6.3 Gal. |
| Power: | No power required |
| ADA Compliant: | Yes |
| Overall Dimensions: | 13" Wide x 55-1/8" Tall x 4-1/16" Deep (Projects 9/16" out from wall.) |
| Rough-In: | 11-1/2" Wide x 53-5/8" tall x 3-3/4" Deep |
| Shipping Dimensions: | 58.6" Length x 15.4" Width x 6.9" Height |
| Shipping Weight: | 22.5 lbs. |
| Manufacturer Model No.: | B-38034.MBLK |
| UPC / GTIN: | Not published |
| Country of Manufacture: | USA |
| Warranty: | 1 Yr. Manufacturer's Limited |
| Additional Comments: | Includes TowelMate Towel Rod Assembly. Includes removable leak-proof rigid molde plastic inner trash container. |
Architectural Specifications:
Recessed paper towel dispenser and waste receptacle shall be Type-304 stainless steel with all-welded construction; exposed surfaces shall be satin-finish. Unit equipped with TowelMate consisting of a 90° return towel guide angle inside cabinet to prevent paper towels from falling forward out when door is opened for servicing and a Nylon Rod across the center of the towel tray to dispense paper towels one at a time. Door shall be 18 gauge (1.2mm); have 9/16'' (14mm) 90° return edges; be secured to cabinet with a concealed, full length stainless steel piano-hinge; and equipped with a stainless steel cable door-swing limiter and two tumbler locks keyed like other Bobrick washroom accessories. Tumbler locks flush with the door - no protrusion. Paper towel dispenser shall dispense 600 C-fold or 800 multifold paper towels. Waste receptacle shall be furnished with a removable, leak-proof, rigid molded plastic waste-container with a capacity of 3.8-gal. (14.4-L).
