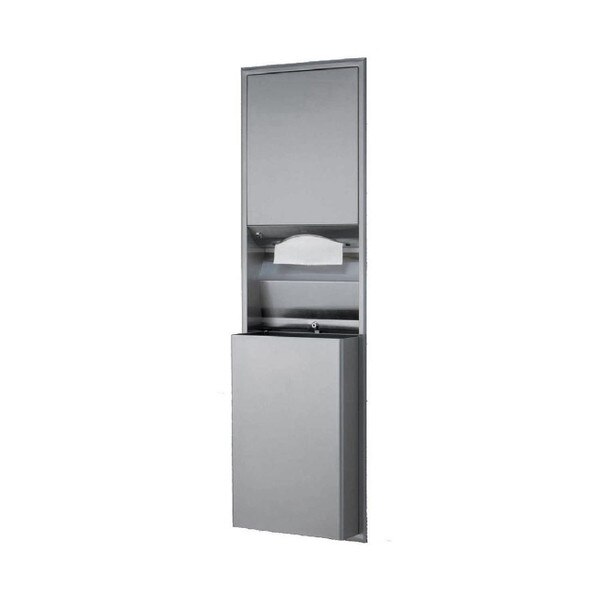

Bobrick B-3942 ClassicSeries® Semi-Recessed, Satin Stainless Steel, Convertible Paper Towel Dispenser & 12-Gallon Waste Receptacle
Unit includes convertible folded paper towel module and 12-gallon waste receptacle. Satin-finish stainless steel. Seamless beveled flange. Dispenses 600 C-fold or 800 multifold towels. Removable waste receptacle locked into cabinet. Receptacle is 8″ (205mm) deep with capacity of 12-gallons (45.5-L); extends 4 - 1/8″ (105mm) from wall. Rough Wall Opening: 16″ W x 54 - 3/4″ H x 2″ minimum depth (405 x 1390 x 50mm). Skirt for semi-recessing. Field conversion made easy without replacing existing cabinets in wall. Interchangeable with: 368-60: Interchangeable Receptacle, 18 gallons (68-L) 3974-250: Convertible Automatic, Universal Roll Paper Towel Dispenser Module Equipped with LED Light 3961-50: “touch-free” Pull Towel Dispenser Module
Dispense 600 C-fold or 800 multifold paper towels
Removable waste receptacle secured to cabinet with a tumbler lock with minimum capacity of 12-gal. (45.5-L).
Double-pan-back construction. Secured to cabinet with a full-length stainless steel piano-hinge.
Tumbler locks flush with the door - no protrusion.
This model has several options that are convertible in the field (purchased separately). The following modules will work with this dispenser: Universal Touch-Free Roll Towel Dispenser Module (3961-50), Automatic, universal Roll Towel Dispenser Module (3974-250), 12 Gallon Waste Receptacle (367-60), 18 Gallon Waste Receptacle (368-16). NOTE: Adding larger waste receptacles will increase the projection of this towel dispenser. Be sure to check available space.

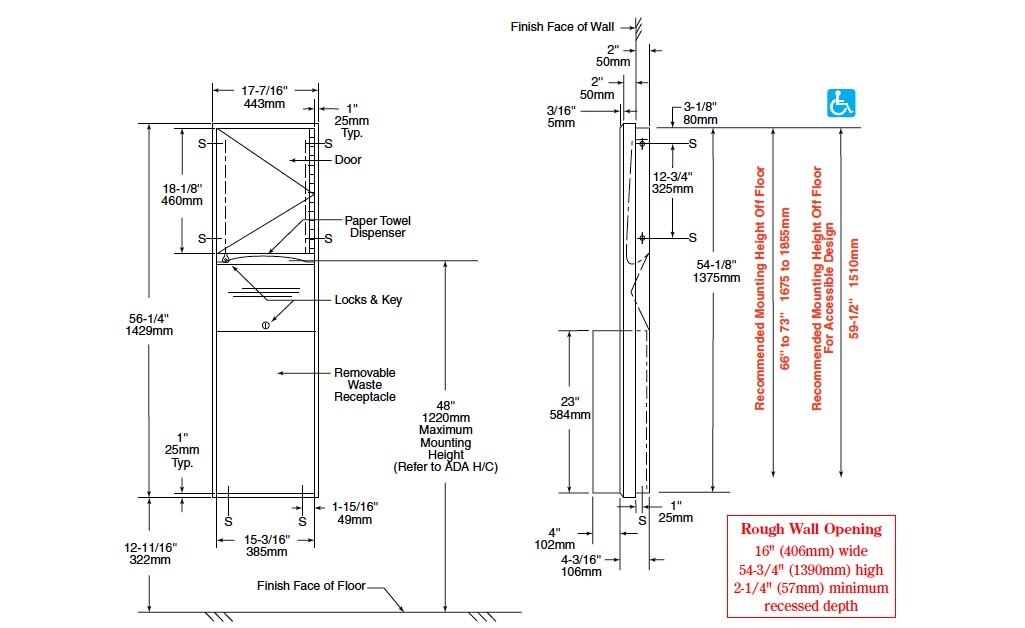

Measurement Diagram:
| Type: | C-Fold / Multi-Fold Paper Towel Dispenser with Integrated Waiste Container |
| Primary Material: | Stainless Steel |
| Color / Finish: | Satin (Brushed) |
| Installation Type: | Wall / Recessed |
| Capacity: | 600 C-Fold or 800 Multi-Fold Paper Towels |
| Waste Bin Capacity: | 12 Gal. |
| Power: | No power required |
| ADA Compliant: | Yes (Projects 4-5/8" out from wall, but cane detectable) |
| Overall Dimensions: | 17 - 7/16" Wide x 56 - 1/4" Tall x 4 - 3/16" Deep |
| Rough-In: | 16" Wide x 54 - 3/4" Tall x Minimum of 2 - 1/4" Deep |
| Shipping Dimensions: | 59" Length x 20" Width x 10.3" Height |
| Shipping Weight: | 39 lbs. |
| Manufacturer Model No.: | B-3942 |
| UPC / GTIN: | 716954002174 |
| Country of Manufacture: | Canada |
| Warranty: | 1 Yr. Manufacturer's Limited |
| Additional Comments: | Tumbler locks use Bobrick key: 330-43. |
Architectural Specifications:
Semi-recessed convertible paper towel dispenser and waste receptacle shall be Type-304 stainless steel with welded construction; exposed surfaces shall have satin finish. Flange shall be drawn and beveled, one-piece, seamless construction. Door shall be secured to cabinet with a full-length stainless steel piano-hinge and equipped with a semi-concealed tumbler lock keyed like other Bobrick washroom accessories. Paper towel dispenser shall dispense 600 C-fold or 800 multifold paper towels. Removable waste receptacle shall be secured to cabinet with a tumbler lock, have front and side edges of bottom and all top edges hemmed for safe handling, and shall have a minimum capacity of 12-gal. (45.5-L).
