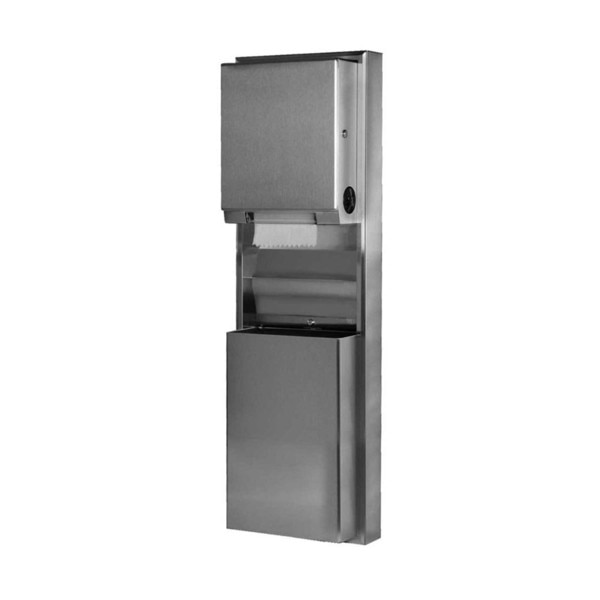

Bobrick B-39619 ClassicSeries® Surface-Mounted, Satin Stainless Steel, Convertible Roll Paper Towel Dispenser & 12-Gallon Waste Receptacle
Unit includes convertible universal, roll paper towel module and 12-gallon (45.5-L) waste receptacle.
Satin-finish stainless steel. Seamless beveled flange. The “touch-free” pull-towel mechanism dispenses 12″ (305mm) length per pull of universal roll paper towels.
Accommodates 8″ (205mm) wide, up to 8″ (205mm) diameter rolls, 800 ft (244m) long, plus 3 - 1/2″ (90mm) diameter stub roll with automatic transfer.
Removable waste receptacle is locked into the cabinet. Skirt for surface-mounting. Field conversion is made easy without replacing existing cabinets in wall.
Interchangeable with:
368-60: Interchangeable receptacle, 18-gallons (68.1-L)
3974-250:
Convertible automatic, universal roll paper towel dispenser module equipped with LED light
3944-52: Folded paper towel dispenser module
- 18-8, Type 304, heavy-gauge stainless steel. Welded construction. Exposed surfaces have satin-finish.
- Touch-Free roll towel dispensing mechanism dispenses one 12" (300mm) length of towel per pull and operates smoothly and quietly. User only touches the paper.
- Automatic transfer dispenses stub roll before new roll is dispensed. When stub roll is depleted, advancement of paper towel feed wheel allows the main roll to start dispensing without the need to open the dispenser.
- Removable waste receptacle is secured to cabinet with a tumbler lock, and has front and side edges of bottom and all top edges hemmed for safe handling.
- Door secured to cabinet with a full-length stainless steel piano-hinge and equipped with a tumbler lock keyed like other Bobrick washroom accessories.

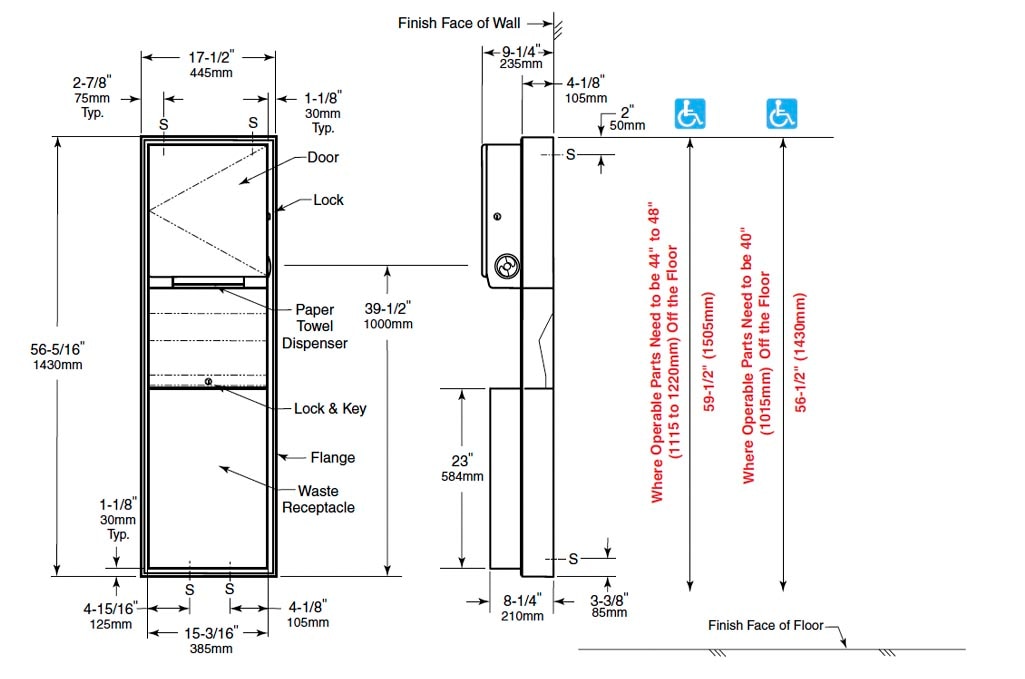

Measurement Diagram:
| Type: | Pull Down, Roll Type Commercial Paper Towel Dispenser with Integrated Waste Container |
| Primary Material: | Stainless Steel |
| Color / Finish: | Satin (Brushed) |
| Installation Type: | Wall / Surface |
| Capacity: | One (1) Standard Length Paper Towel Roll One (1) 3-1/2" Dia. Paper Towel Stub Roll |
| Waste Bin Capacity: | 12 Gal. |
| Power: | No power required |
| ADA Compliant: | Yes (Projects 8-1/4" out from wall, but cane detectable) |
| Overall Dimensions: | 17 - 1/2" Wide x 56 - 5/16" Tall x 9 - 1/4" Deep |
| Rough-In: | Not Applicable |
| Shipping Dimensions: | 59.3" Length x 20" Width x 11.25" Height |
| Shipping Weight: | 48 lbs. |
| Manufacturer Model No.: | B-39619 |
| UPC / GTIN: | 716954002266 |
| Country of Manufacture: | USA |
| Warranty: | 1 Yr. Manufacturer's Limited |
| Additional Comments: | Tumbler locks use Bradley key: P10-526. Purchase in 5-pack: P15-398. |
Architectural Specifications:
Surface-mounted convertible touch-free roll towel dispenser and waste receptacle shall be Type-304 stainless steel with welded construction; exposed surfaces shall have satin finish. Flange shall be drawn and beveled, one-piece, seamless construction. Door shall be secured to cabinet with a full-length stainless steel piano-hinge and equipped with a tumbler lock keyed like other Bobrick washroom accessories. Towel mechanism accommodates up to 8" (205mm) wide, 8" (205mm) diameter, nonperforated paper towel rolls. 800 ft (244mm) long. Touch-Free pull towel mechanism dispenses one 12" (300mm) length of towel per pull. User only touches that paper. Automatic transfer shall dispense stub roll up to 3-1/2" (90mm) diameter before new roll is dispensed. Equipped with paper towel feed wheel for use in filling the dispenser, or for user to advance paper should it become necessary to feed paper through dispenser. Paper towels are dispensed with pull force of less than 5 pounds of force (22.2 N) to comply with accessible design (including ADAAG in U.S.A.). Removable waste receptacle shall be secured to cabinet with a tumbler lock keyed like other Bobrick washroom accessories, have front and side edges of bottom and all top edges hemmed for safe handling, and shall have a minimum capacity a of 12-gal. (45.5-L).
