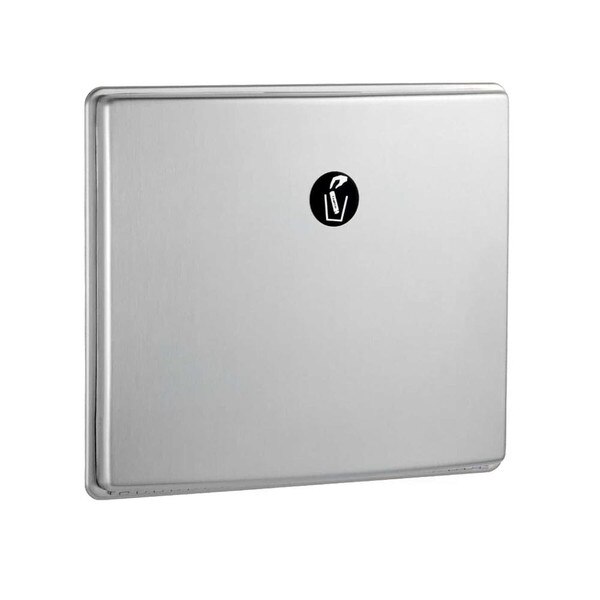

Bobrick B-4354 ConturaSeries® Partition-Mounted, Satin Stainless Steel, 0.7-Gallon Sanitary Napkin Disposal
Satin-finish stainless steel. Mounts in toilet partition 13mm to 32mm (1/2" to 1 - 1/4″) thick. Self-closing doors pull down with less than 2.2 kg (5 lbs) of force (22.2 N) for access to disposal. Removable, leak-proof, 2.7-L (0.7-gal.) plastic bin. Rough partition opening: 280mm W x 240mm H (11" x 9 - 3/8″).
Doors are drawn, one-piece, seamless construction.
Leak-proof molded polyethylene receptacle. Removable from either side for servicing.
Serves two toilet compartments. Self-closing doors pull down for access to disposal with less than 5 pounds of force (22.2 N) to comply with barrier-free accessibility guidelines (including ADAAG in U.S.A.).
Front of sanitary napkin disposal doors have same degree of arc and match other Bobrick ConturaSeries accessories in the washroom.

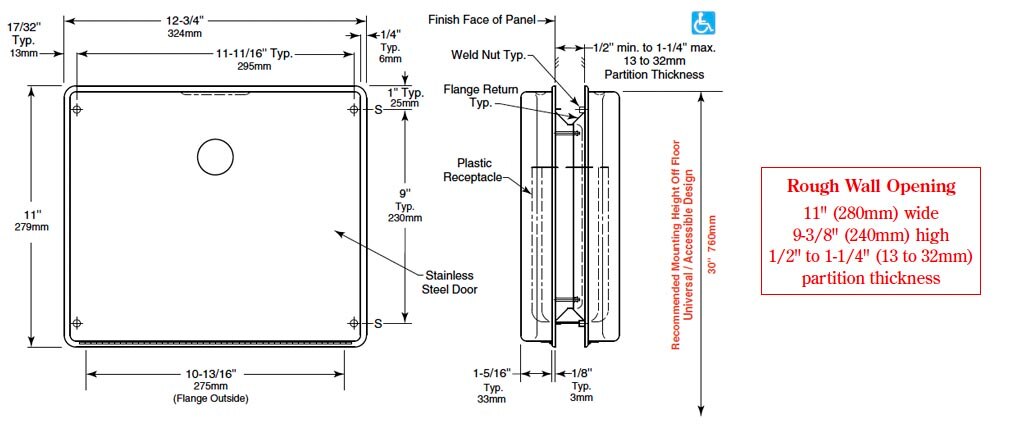

Measurement Diagram:
| Primary Material: | Stainless Steel |
| Color/Finish: | Satin |
| Installation Type: | Partition-Mounted |
| Capacity: | 0.7 Gallons |
| Locks ?: | No |
| Rough-In: | 11" Wide x 9 - 3/8" Tall x Between 1/2" and 1 - 1/4" Deep |
| Overall Dimensions: | 12 - 3/4" Wide x 11" Tall x 3 - 3/8" Deep |
| Net Weight: | 6 lbs |
| Shipping Dimensions: | 16" Length x 14" Width x 6" Height |
| Shipping Weight: | 6 lbs. |
| Manufacturer Model No.: | B-4354 |
| UPC / GTIN: | 716954002426 |
| Country of Manufacture: | Canada |
| Warranty: | 3 Yr. Manufacturer's Limited |
Architectural Specifications:
Partition-mounted sanitary napkin disposal shall be Type-304 stainless steel with all-welded construction; exposed surfaces shall have satin finish. Unit shall mount in partition and serve two toilet compartments. Front of sanitary napkin disposal doors shall have same degree of arc and match other Bobrick ConturaSeries accessories in the washroom. Radius on corners and edges of flanges and doors shall complement other Bobrick ConturaSeries washroom accessories. Flanges shall be drawn, one-piece, seamless construction. Each self-closing door shall be drawn, one-piece, seamless construction; secured to flange with a full-length stainless steel piano-hinge; and equipped with two stainless steel cable door-swing limiters, a finger-pull recess at top for easy opening, and an international graphic symbol identifying sanitary napkin disposal. Doors shall pull down with less than 5 pounds of force (22.2 N) to comply with barrier-free accessibility guidelines (including ADAAG in U.S.A.). Unit shall be furnished with a removable, leak-proof, molded polyethylene receptacle that is serviced from either side of unit. Receptacle shall have a capacity of 0.7-gal. (2.7-L). Unit is furnished with a hanging sight-barrier, secured to flange with two stainless steel piano-hinges, which swings out of the way when waste is deposited in receptacle and when removing receptacle from unit for servicing.
