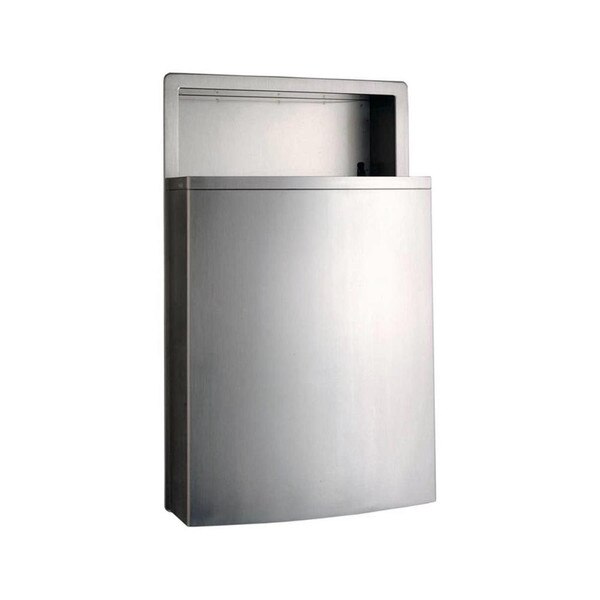

Bobrick B-43644 ConturaSeries® Recessed, Satin Stainless Steel, 12.8-Gallon Waste Receptacle with LinerMate®
Satin-finish stainless steel. Removable front panel for easy cleaning. Capacity is 12.8-gallons (48.5-L).
Rough wall opening: 15 - 7/8″ W x 26 - 1/4″ H x 4″ minimum depth (405 x 665 x 100mm).
- 18-8, type-304, 22-gauge (0.8mm) stainless steel. All-welded construction.
- Front of waste receptacle has same degree of arc and match other Bobrick ConturaSeries accessories in the washroom.
- Equipped with LinerMate to facilitate installation and removal of disposable trash liners, retains liner inside waste receptacle

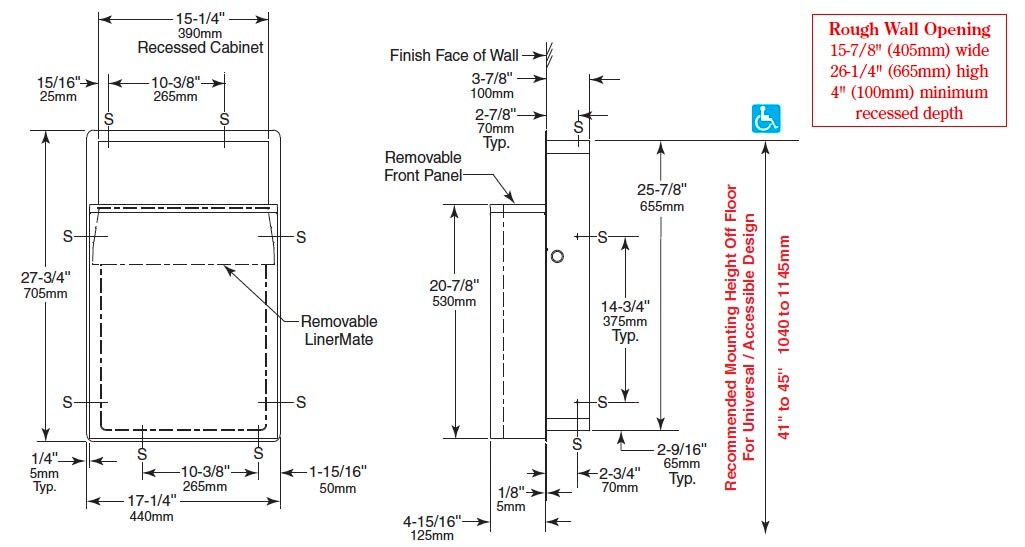

Measurement Diagram:
| Primary Material: | Stainless Steel |
| Color/Finish: | Satin |
| Installation Type: | Recessed |
| Capacity: | 12.8 Gallons |
| Locks ?: | No |
| Rough-In: | 15 - 7/8" Wide x 26 - 1/4" Tall x Minimum of 4" Deep |
| Overall Dimensions: | 17 - 1/4" Wide x 27 - 3/4" Tall x 8 - 15/16" Deep |
| Net Weight: | 20 lbs |
| Shipping Dimensions: | 20" Length x 31" Width x 11" Height |
| Shipping Weight: | 34.2 lbs. |
| Manufacturer Model No.: | B-43644 |
| UPC / GTIN: | 716954002440 |
| Country of Manufacture: | Canada |
| Warranty: | 3 Yr. Manufacturer's Limited |
Architectural Specifications:
Recessed waste receptacle shall be type-304 stainless steel with all-welded construction; exposed surfaces shall have satin finish. Front of waste receptacle shall have same degree of arc and match other Bobrick ConturaSeries accessories in the washroom. Radius on corners and edges of flange and waste receptacle shall complement other Bobrick ConturaSeries washroom accessories. Flange shall be drawn, one-piece, seamless construction. Waste receptacle shall have a formed, one-piece, seamless, removable front panel with top edge hemmed. Waste receptacle shall be equipped with LinerMate to facilitate installation and removal of disposable trash liners and retains liner inside waste receptacle. LinerMate trash liner holder is fabricated with a molded plastic bag holder sleeve and a 20-gauge (0.91mm) stainless steel, U-shaped support strap; riveted construction. Bag holder shall have an arc at front and same shape as inside of waste receptacle area. Capacity of waste receptacle shall be 12.8-gal. (48.3-L).
