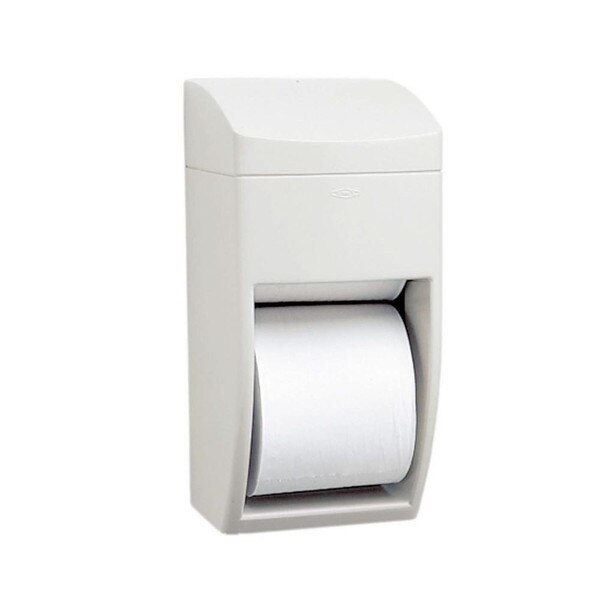

Bobrick B-5288 MatrixSeries™ Surface-Mounted, Grey ABS, Multi-Roll Toilet Paper Dispenser
Durable ABS plastic; grey color. Two-roll dispensing mechanism for rolls up to 5 - 3/4″ (145mm) diameter (2000 sheets). Extra roll easily shifts into place when bottom roll is depleted. Concealed locking device.
Dual Toilet Tissue Spindle — Durable, high-impact grey ABS. Retained in door when unit is locked.
Front of door has same degree of arc and match other Bobrick MatrixSeries accessories in the washroom.
Replacement part numbers are molded into unit on inside for easy identification.
Extra roll is manually lowered into place when bottom roll is depleted. Depleted rolls can only be removed after unlocking door with key provided.

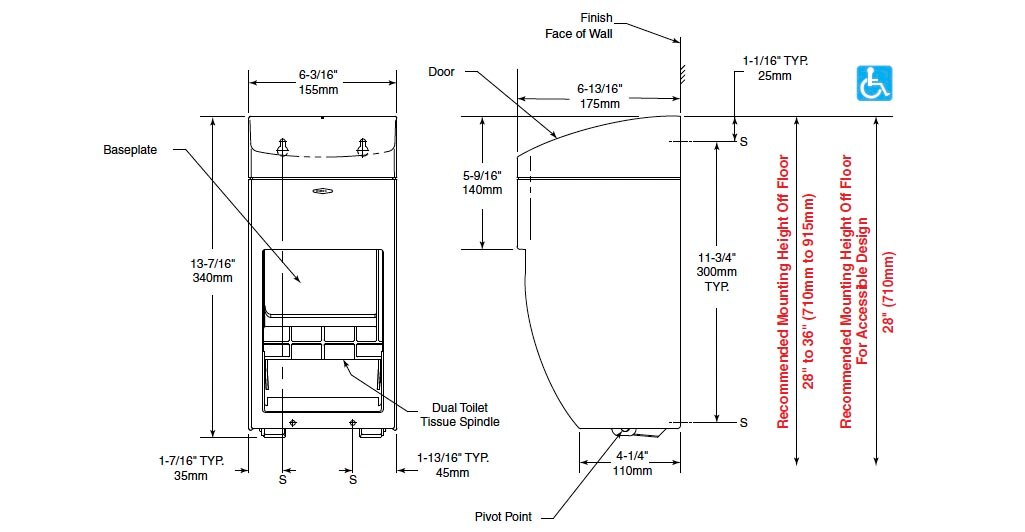

Measurement Diagram:
| Primary Material: | ABS Plastic |
| Color/Finish: | Gray |
| Installation Type: | Wall / Surface |
| Capacity: | 2 Standard Core Toilet Paper Rolls |
| Overall Dimensions: | 6 - 3/16" Wide x 13 - 7/16" Tall x 6 - 13/16" Deep |
| Net Weight: | 2.2 lbs |
| Shipping Dimensions: | 14" Length x 6.5" Width x 7" Height |
| Shipping Weight: | 3.1 lbs. |
| Manufacturer Model No.: | B-5288 |
| UPC / GTIN: | 716954002808 |
| Country of Manufacture: | United States |
| Warranty: | 1 Yr. Manufacturer's Limited |
| Additional Comments: | Tumbler lock uses Bobrick key: 330-43 |
Architectural Specifications:
Surface-mounted multi-roll toilet tissue dispenser shall be durable, high-impact grey ABS with high-gloss finish on exposed surfaces. Front of door shall have same degree of arc and match other Bobrick Matrix Series accessories in the washroom. Radius on corners, edges, and top of door shall complement other Bobrick Matrix Series washroom accessories. Door shall be secured to mounting plate with two keyed pivots and a concealed locking device keyed like other Bobrick washroom accessories. Unit shall be equipped with a one-piece, dual toilet tissue spindle. Unit shall dispense two standard-core toilet tissue rolls up to 5-3/4" (145mm) diameter (2000 sheets). Extra roll shall be manually lowered into place when bottom roll is depleted. Replacement part numbers shall be molded into unit.
