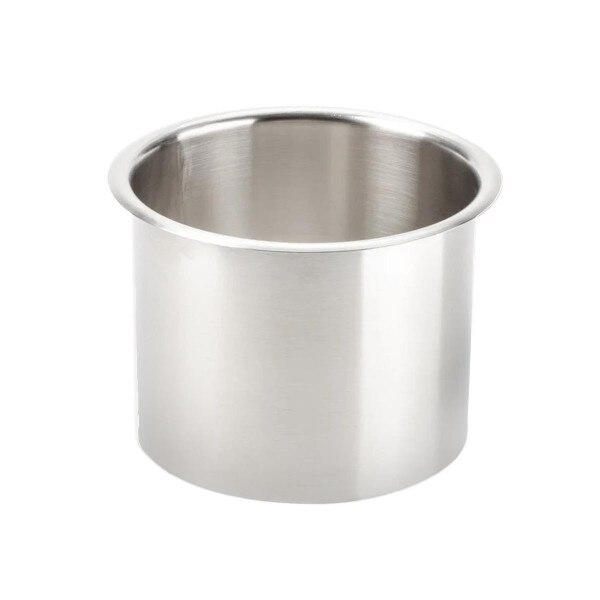

Bobrick B-529 Circular Waste Chute for Countertops

The Bobrick B-529 Circular Waste Chute is an attractive, surface-mounted waste receptacle that guides trash downward into your awaiting waste container (not included) to keep messes hidden away and counter tops looking spotless. The exposed surfaces of the chute have a glossy, shiny silver tone appearance, which enhances the look of the sink area in which it is installed even more. The chute requires a hole approximately 5-5/8 inches in diameter, but has a 1/16 of an inch allowance. Once placed in the hole, the chute can be sealed in place with any silicone sealant in order to prevent theft and keep the chute from shifting and moving when waste is dropped into its opening. The inside diameter of the tube is 5-7/16 inches, and the unit is 5 inches in length. Crafted from type-300 stainless steel, the metal used to produce the piece is 24 gauge or 6 millimeters thick.

• Type-300, 24-gauge (0.6mm) stainless steel circular waste chute. Exposed surfaces have bright polished finish

• Waste chute opening shall provide access to deposit waste into waste receptacle (not included) placed under the countertop

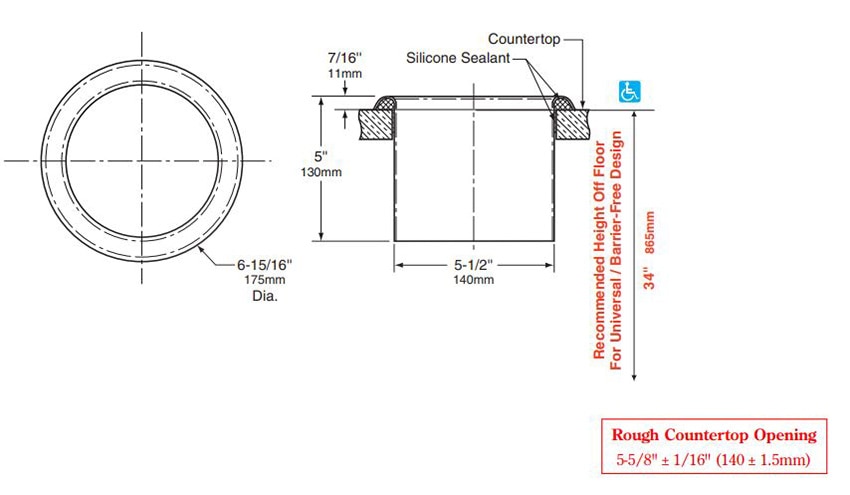

Measurement Diagram:
