Bobrick B-541 Surface-Mounted, Satin Stainless Steel, Spare Toilet Roll Holder
Beautiful modern design. Architectural satin finish. Vertical post accommodates one roll up to 5″ (125mm) diameter and a core size from 3/4″ (20mm) to 1 - 1/2″ (40mm). Overall height 8″ (205mm). Projects 3 - 1/2″ (90mm) from wall (without roll).
18-8, type-304, 0.9mm (20-gauge) stainless steel tubing. 19mm (3/4") outside diameter.
Concealed mounting flange. Threaded flange cover.
Mounting fasteners are NOT included.

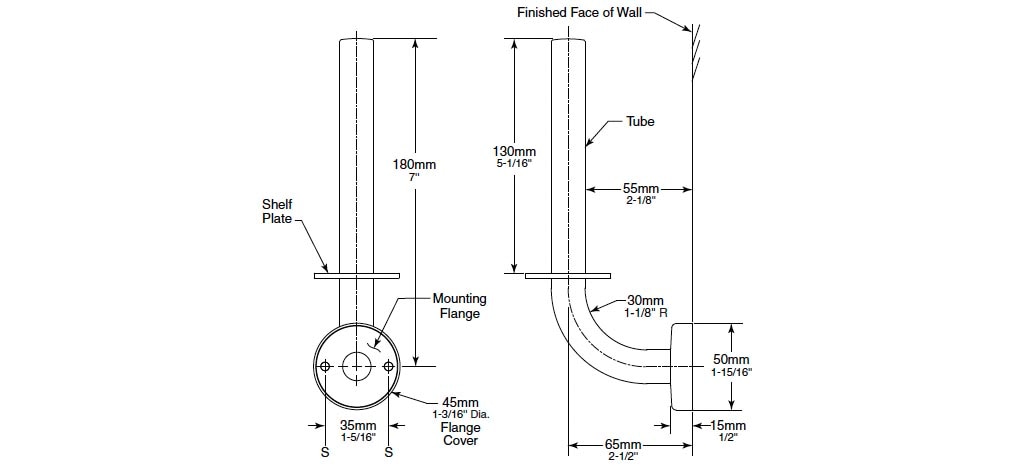

Measurement Diagram:
| Primary Material: | Stainless Steel |
| Color/Finish: | Satin |
| Installation Type: | Wall / Surface |
| Capacity: | 1 Standard Core Toilet Paper Roll |
| Overall Dimensions: | 1 - 15/16" Wide x 8 - 1/2" Tall x 3 - 7/16" Deep |
| Net Weight: | 0.5 lbs |
| Shipping Dimensions: | 6" Length x 4" Width x 4" Height |
| Shipping Weight: | 0.5 lbs. |
| Manufacturer Model No.: | B-541 |
| UPC / GTIN: | 716954009210 |
| Country of Manufacture: | China |
| Warranty: | 1 Yr. Manufacturer's Limited |
Architectural Specifications:
Spare toilet roll holder shall be type-304 stainless steel with ________________ (insert one satin finish or bright polished)finish. Toilet roll holder shall have 0.9mm (20-gauge) wall thickness and 19mm (3/4") outside diameter. Clearance between the toilet roll holder and wall shall be 55mm (2-1/8''). Concealed mounting flange shall be 5.6mm (7/32") thick stainless steel plate, 46mm (1-13/16") outside diameter and equipped with two screw holes for attachment and thread on outside edge to fasten cover. Threaded flange cover shall be 1.4mm (17-gauge) stainless steel, 49mm (1-15/16") diameter and shall fasten overmounting flange to conceal mounting screws. End of toilet roll holder shall pass through flange and be welded to form one structural unit. Shelf plate shall be 3mm (1/8") thick stainless steel plate, 49mm (1-15/16") outside diameter and 19mm (3/4")inside diameter. Toilet roll holder shall pass through shelf plate and be welded to form a solid base.
