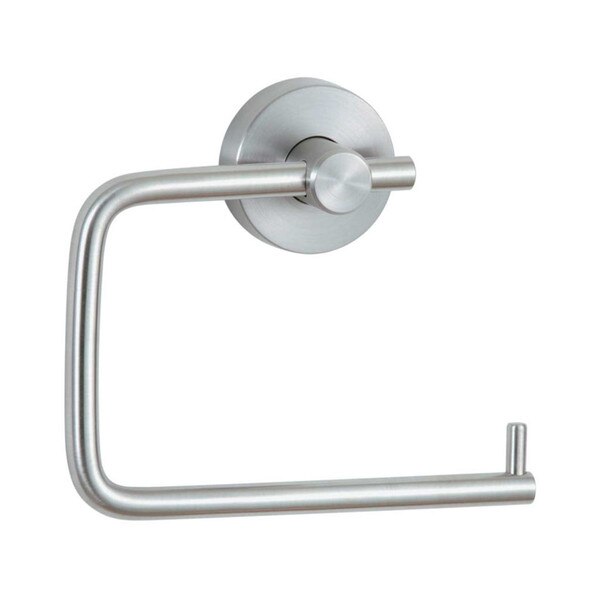

Bobrick B-5436 Surface-Mounted, Bright-Polished Stainless Steel, Single-Roll Toilet Paper Dispenser
Single roll toilet paper holder. Modern industrial design. Stainless steel construction. Bright (polished) finish.
Accepts standard-core size from 3/4″ (20mm) up to 1 - 1/2″ (40mm) and 4″ (100mm) wide.
Threaded escutcheon conceals mounting plate, provides snug fit to the wall.
Set screw in post prevents vandalism.

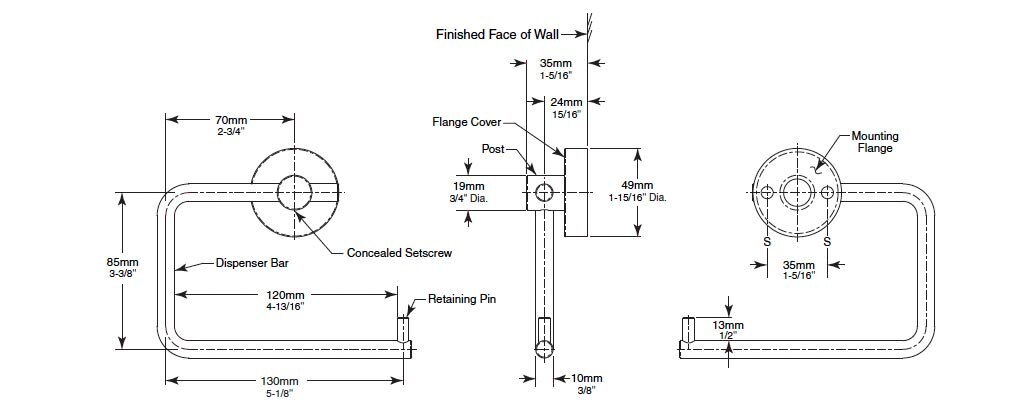

Measurement Diagram:
| Type: | Toilet Paper Dispenser |
| Installation: | Wall / Surface |
| Primary Material: | Stainless Steel |
| Color / Finish: | Bright (Polished) |
| Capacity: | 1 Standard Core Toilet Paper Roll |
| Overall Dimensions: | 6" Wide x 4-3/4" Tall x 1-5/16" Deep |
| Net Weight: | 0.3 lbs |
| Shipping Dimensions: | 7" Length x 5" Width x 3" Height |
| Shipping Weight: | 0.8 lbs. |
| Manufacturer Model No.: | B-5436 |
| UPC / GTIN: | 716954009234 |
| Country of Manufacture: | China |
| Warranty: | 1 Yr. Manufacturer's Limited |
| Additional Comments: | Mounting fasteners not included. |
Architectural Specifications:
Toilet Tissue Dispenser shall be type-304 stainless steel with satin finish. Toilet Tissue Dispenser shall have 19mm (3/4") diameter Post. Dispenser bar shall be 9.5mm (3/8") diameter, secured to Post with a concealed set screw allowing for right or left handed assembly. Retaining pin shall be 6.4mm (1/4") diameter and pressed into Dispenser bar. Concealed mounting flange shall be 5.6mm (7/32") thick stainless steel plate, 46mm (1-13/16") outside diameter and equipped with two screw holes for attachment and thread on outside edge to fasten cover. Threaded flange cover shall be 1.4mm (17-gauge) stainless steel, 49mm (1-15/16") diameter and shall fasten over mounting flange to conceal mounting screws. Post and mounting flange are to be machined as one piece.
