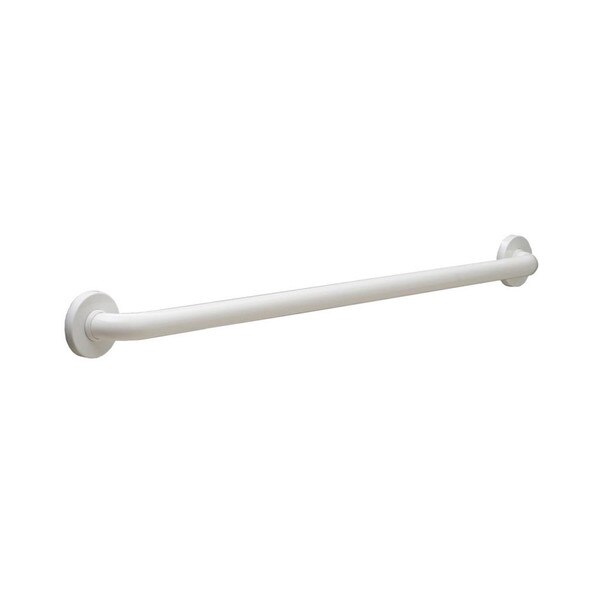

Bobrick B-580616x42 Vinyl-Coated, Straight, 42" Grab Bar
 | Safety Warning: Grab bars are no stronger than the anchors and walls to which they are attached and, therefore, must be firmly secured in order to support the loads for which they are intended. |
1-1/4″ (32mm) Diameter. Rated length of 42". Vinyl-coated grab bar for bath/shower/toilet compartment. Bars are corrosion-resistant, zinc-coated steel pipe with vinyl, antibacterial, biocompatible, and warm-to-the-touch coating.
Zinc-plated 1" (25mm) diameter steel tube with 1/8" (3mm) thick W1 white vinyl antibacterial, biocompatible, and warm-to-the-touch coating with glossy finish.
1-1/4" (32mm) outside diameter tubing.
Clearance between the Grab Bar and wall is 1-1/2" (38mm).
B-580616 x 42 can withstand loads of 330 pounds (150 kg) when properly installed.

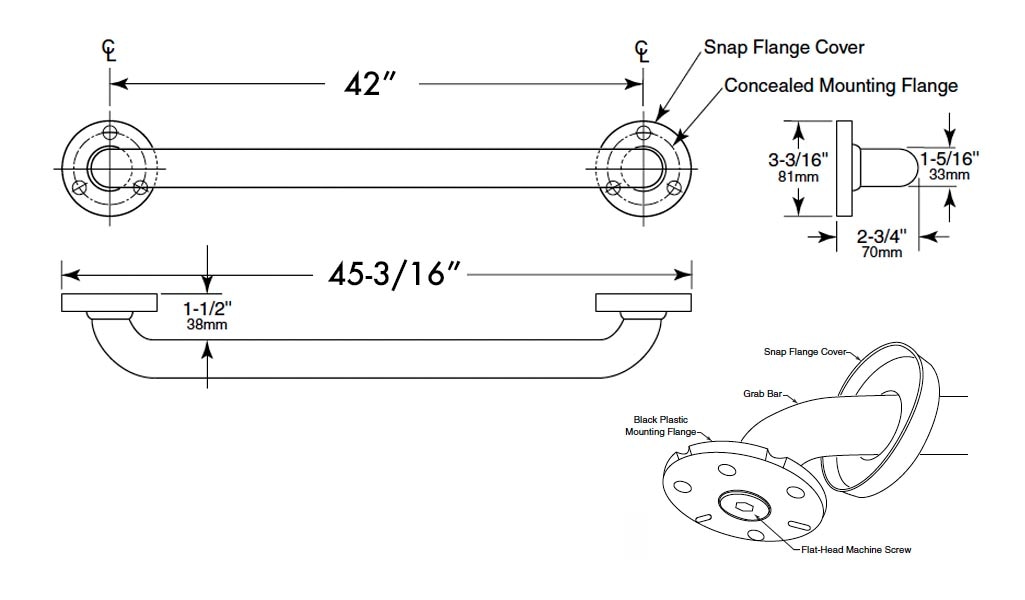

Measurement Diagram:
| Type: | Straight Grab Bar |
| Primary Material: | Stainless Steel |
| Mount Type: | Concealed (Snap Flange) |
| Outside Diameter: | 1-1/4" |
| Rated Width: | Not Applicable |
| Rated Length: | 42" |
| Grip Type: | Smooth |
| Finish / Color: | Satin |
| Load Capacity: | Up to 600 lbs. |
| Bariatric: | Yes |
| Antimicrobial: | No |
| Overall Dimensions: | 45-3/16" Wide x 3-3/16" Tall x 2-3/4" Deep |
| Shipping Dimensions: | 46" Length x 4" Width x 4" Height |
| Shipping Weight: | 3.1 lbs. |
| UPC / GTIN: | 716954011992 |
| Manufacturer Model No.: | B-580616x42 |
| Country of Manufacture: | Italy |
| Warranty: | 1 Yr. Manufacturer's Limited |
Architectural Specifications:
Grab bar shall be Type-304 stainless steel with a satin-finish, slip-resistant surface. Grab bar shall have 18-gauge (1.2mm) wall thickness and 1-1/4" (32mm) outside diameter. Clearance between the grab bar and wall shall be 1-1/2" (38mm). Concealed mounting flanges shall be 11-gauge (3.2 mm) thick stainless steel plate, 2" x 3‑1/8" (50 x 80mm), and equipped with at least two screw holes for attachment to wall. Flange covers shall be 22-gauge (0.8mm) stainless steel, 3-1/4" (85mm) diameter, and shall snap over mounting flanges to conceal mounting screws and/or WingIt fasteners. Ends of grab bar shall pass through concealed mounting flanges and be heliarc welded to form one structural unit. Grab bar shall comply with accessible design (including ADAAG in the U.S.A.) for structural strength.
