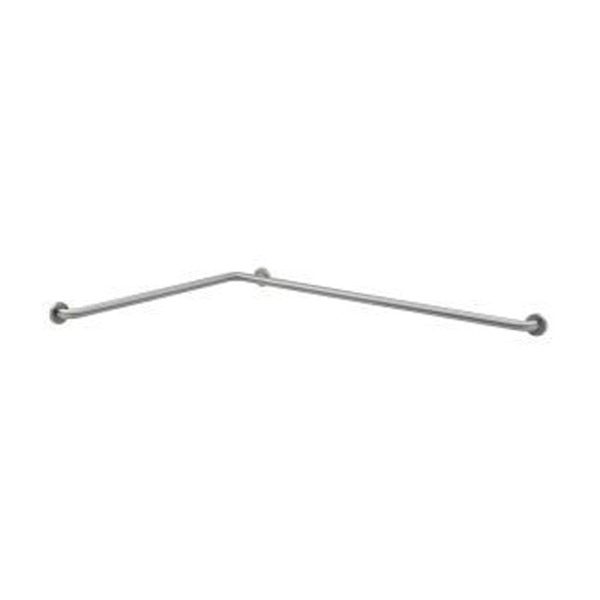

Bobrick B-5897 Satin Stainless Steel, 42" by 54" Corner Grab Bar

(0) No Reviews yet
$279.72
SKU: B-5897
Safety Warning: Grab bars are no stronger than the anchors and walls to which they are attached and, therefore, must be firmly secured in order to support the loads for which they are intended.

1-1/4″ (32mm) diameter tubing. Constructed of 18-gauge, type-304, satin-finish stainless steel with slip-resistant surface. Cover snaps over mounting flange to conceal screws.


  • 18-8, Type-304, 18-gauge (1.2mm) stainless steel tubing with a satin-finish.

  • Bobrick grab bars that provide 1-1/2" (38mm) clearance from wall can support loads in excess of 900 pounds.

  • Can support loads in excess of 900 pounds (408kg) if properly installed

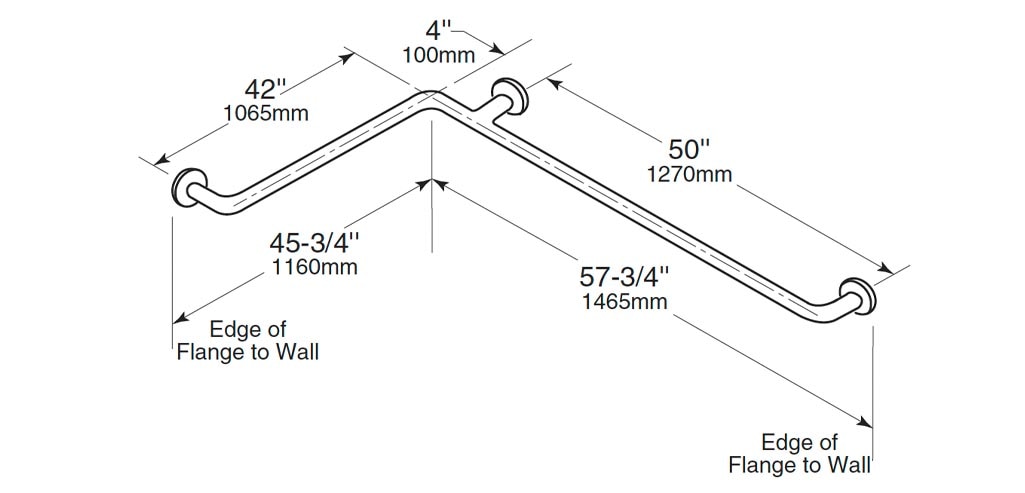

Measurement Diagram:


Type: Angled Grab Bar
Primary Material: Stainless Steel
Mount Type: Concealed (Snap Flange)
Outside Diameter: 1-1/4"
Rated Width: 42"
Rated Length: 54"
Grip Type: Smooth
Finish / Color: Satin
Load Capacity: Up to 250 lbs.
Bariatric: No
Antimicrobial: No
Overall Dimensions: 57-3/4" Wide x 3-1/4" Tall x 45-3/4" Deep
Shipping Dimensions: 58" Length x 46" Width x 4" Height
Shipping Weight: 8.1 lbs.
UPC / GTIN: 716954000477
Manufacturer Model No.: B-5897
Country of Manufacture: USA
Warranty: 1 Yr. Manufacturer's Limited

Architectural Specifications:



Grab bar shall be Type-304 stainless steel with a satin-finish, slip-resistant surface. Grab bar shall have 18-gauge (1.2mm) wall thickness and 1-1/4" (32mm) outside diameter. Clearance between the grab bar and wall shall be 1-1/2" (38mm). Concealed mounting flanges shall be 11-gauge (3.2 mm) thick stainless steel plate, 2" x 3‑1/8" (50 x 80mm), and equipped with at least two screw holes for attachment to wall. Flange covers shall be 22-gauge (0.8mm) stainless steel, 3-1/4" (85mm) diameter, and shall snap over mounting flanges to conceal mounting screws and/or WingIt fasteners. Ends of grab bar shall pass through concealed mounting flanges and be heliarc welded to form one structural unit. Grab bar shall comply with accessible design (including ADAAG in the U.S.A.) for structural strength.
